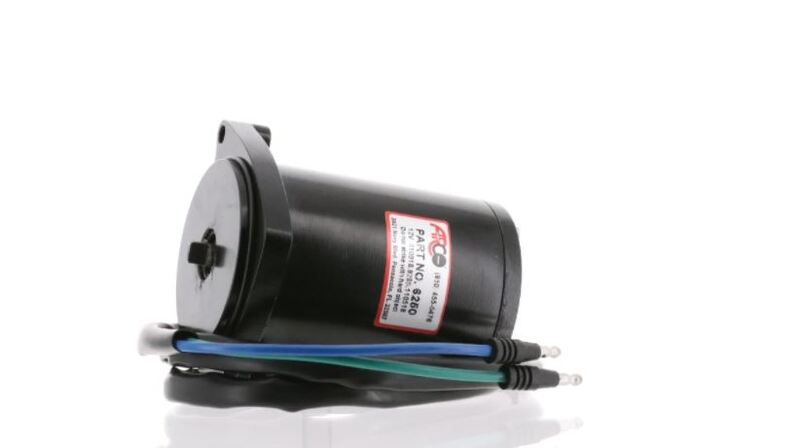

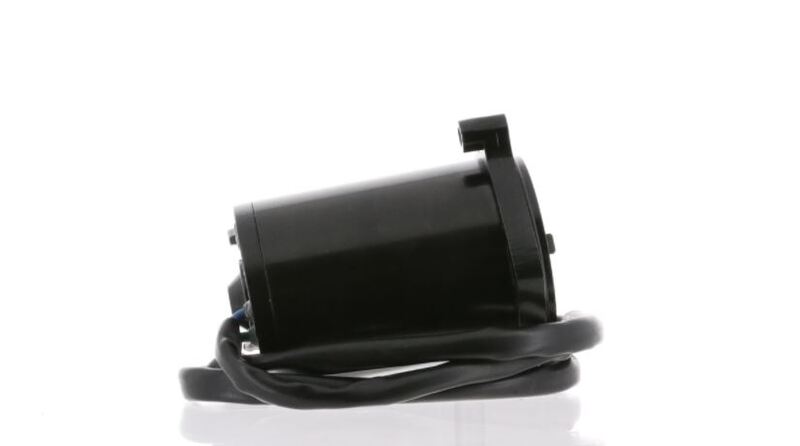

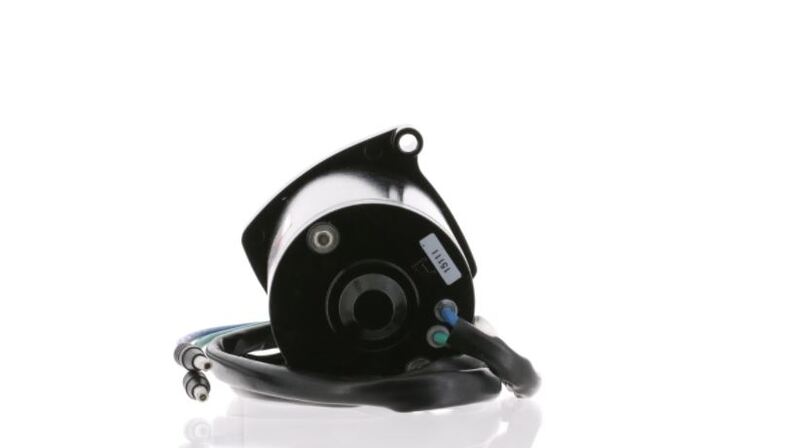

Arco Marine Tilt/Trim Motor • 6250
Product Details
ate model Mercury 135, 150 XR6, Magnum III, 175, 200, 225, 250 hp, 105-140 hp Jet
- Epoxy Powder Coated For Maximum Corrosion Protection
- Motor Shafts Induction Case Hardened At Bearing Surfaces For Superior Wear Resistance
- All Armatures Tested To Withstand 50 Times Operation Voltage (12 Voltage)
- All Motors Performance Tested At 5 Different Load Levels
- All Motors Must Meet Or Exceed OEM Performance Before Being Boxed
- Compatibility: Late Model Mercury/ Magnum
- Mounting Type: 2-Bolt
- Connection Type: 2 Wire
- Connector Gender: Bullet Connector Terminal
- Voltage: 12 Volt
- With O-Ring: Yes
- Limited 1 Year Warranty
Includes:
- 1 x Tilt/Trim Motor
- 2 x Wire connection
- 2 x Bolt mount
- Flat-blade shaft
- Bullet connector for Terminal ends
- 1 x O-Ring
Replaces Part Numbers:
- MERCURY Tilt Trim Motor 8M0031551
- MERCURY Tilt Trim Motor 8M0060140
- MERCURY Tilt Trim Motor 828708
- MERCURY Tilt Trim Motor 828708T
- MERCURY Tilt Trim Motor 878265A1
- MERCURY Tilt Trim Motor 878265A4
- SIERRA Tilt Trim Motor 18-6773
