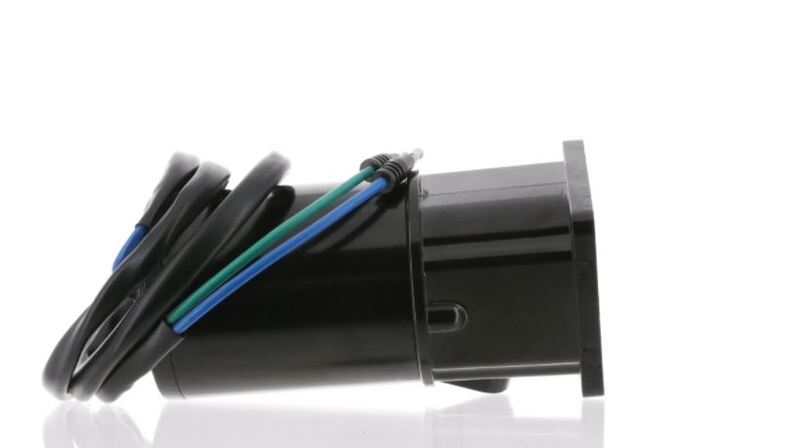

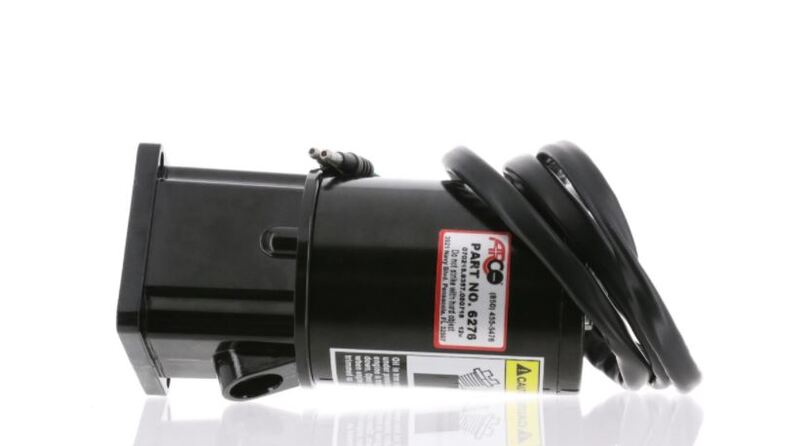

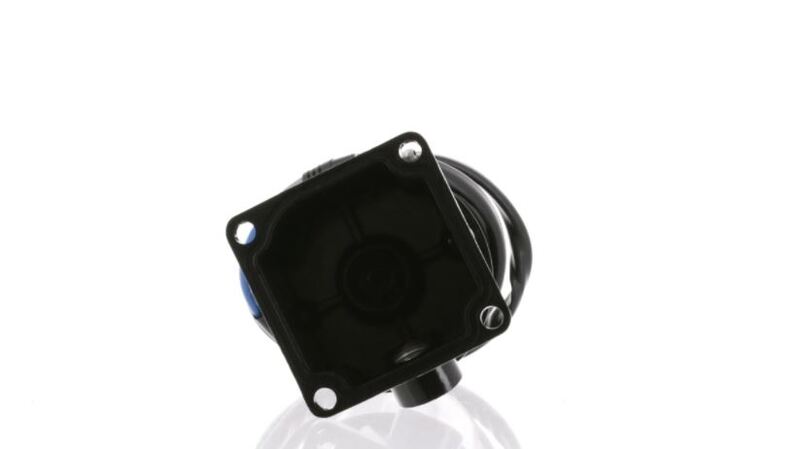

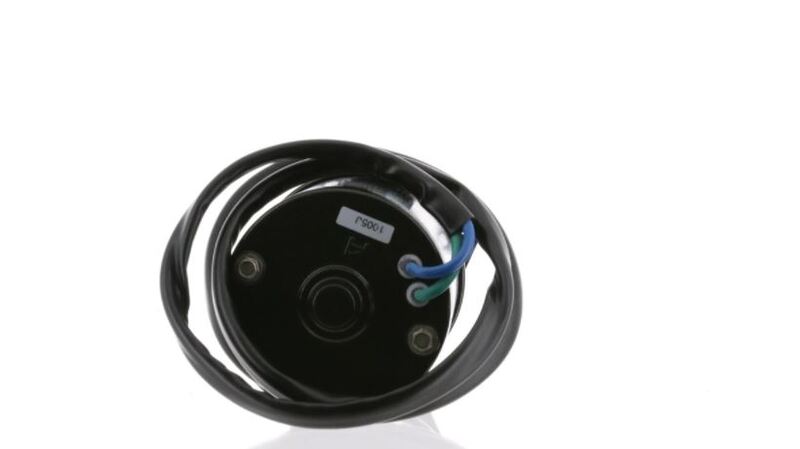

Arco Marine Tilt/Trim Motor - Late model Mercury /Mariner, Force 40-125 HP Outboards w/ Single Ram • 6276

Tilt/Trim Motor for late model Mercury/Mariner/Force 40-125 hp outboards w/ single ram

• Epoxy Powder Coated For Maximum Corrosion Protection
• Motor Shafts Induction Case Hardened At Bearing Surfaces For Superior Wear Resistance
• All Armatures Tested To Withstand 50 Times Operation Voltage (12 Voltage)
• All Motors Performance Tested At 5 Different Load Levels
• All Motors Must Meet Or Exceed OEM Performance Before Being Boxed
• Compatibility: Late Model Mercury/ Mariner
• Mounting Type: 4-Bolt
• Connection Type: 2 Wire
• Connector Gender: Bullet Connector Terminal
• Voltage: 12 Volt
• With O-Ring: Yes
• Limited 1 Year Warranty

• 1 x Tilt/Trim Motor
• 2 x Wire connection
• 4 x Stainless Steel bolt mount
• Hollow-hex shaft
• 1 x O-Ring
• 1 x Fill plug
• 1 x Shaft adaptor
• Bullet connector terminal ends

• MERCURY Tilt Trim Motor 19217A1
• MERCURY Tilt Trim Motor 19217A5
• MERCURY Tilt Trim Motor 809885A1
• MERCURY Tilt Trim Motor 809885A2
• MERCURY Tilt Trim Motor 809885T2
• MERCURY Tilt Trim Motor 811674
• MERCURY Tilt Trim Motor 813447
• MERCURY Tilt Trim Motor 818903A1
• MERCURY Tilt Trim Motor 819479A1
• MERCURY Tilt Trim Motor 8197480A1
• MERCURY Tilt Trim Motor 819762A4
• MERCURY Tilt Trim Motor 19762A5
• MERCURY Tilt Trim Motor 19762A6
• MERCURY Tilt Trim Motor 19762A7
• MERCURY Tilt Trim Motor 1977A8
• MERCURY Tilt Trim Motor 1977A9
• MERCURY Tilt Trim Motor 22870A1
• MERCURY Tilt Trim Motor 30250A3
• MERCURY Tilt Trim Motor 30250T3
• MERCURY Tilt Trim Motor 2021A1
• MERCURY Tilt Trim Motor 32021T1
• MERCURY Tilt Trim Motor 32021A2
• MERCURY Tilt Trim Motor 32021T2
• MERCURY Tilt Trim Motor 55654A1
• MERCURY Tilt Trim Motor 55654T2
• MERCURY Tilt Trim Motor 893907A02
• SIERRA Tilt Trim Motor 18-6777
