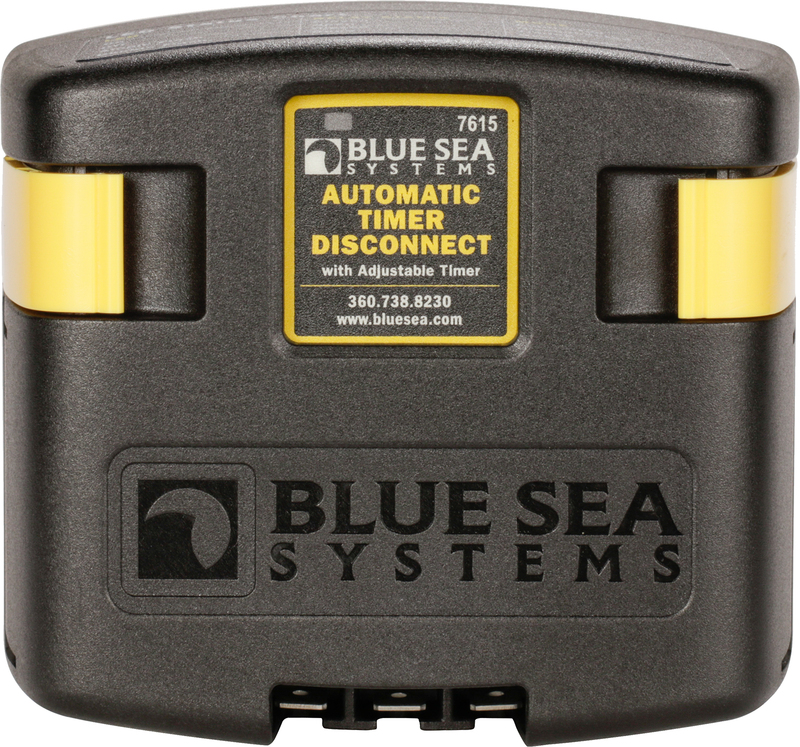

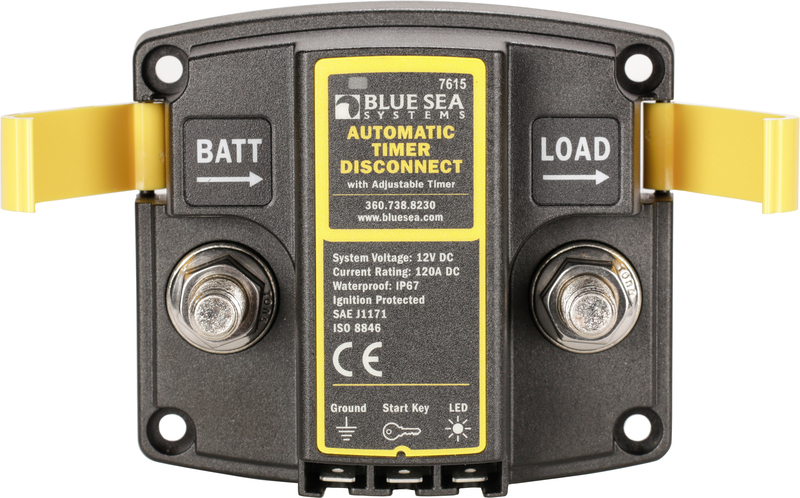

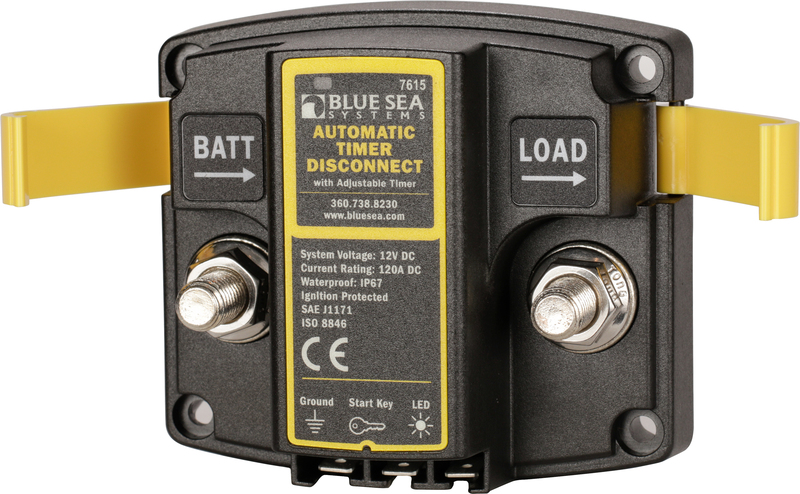

Blue Sea Automatic Timer Disconnect Switch 12V 120A • 7615-BSS

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

• 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time

• Disconnect can be triggered based on time, low voltage, or removal of 12V signal

• Low voltage will disconnect if time hasn_t been reached to preserve battery power

• Time and voltage options can be turned off to allow 12V signal based disconnect

• Clip-on cover insulates terminal connections

• One-piece stainless flange nuts ensure safe and secure connections

• Integrated LED indicates status
• Nominal Voltage:12V DC
• Amperage Operating Current: 175mA(Combine / 15mA(Open)

• Continuous Rating:120A

• Intermittent Duty: 210

• Terminal Stud Size: 3/8"-16 (M10)

• Time Range: 15min-4hrs
