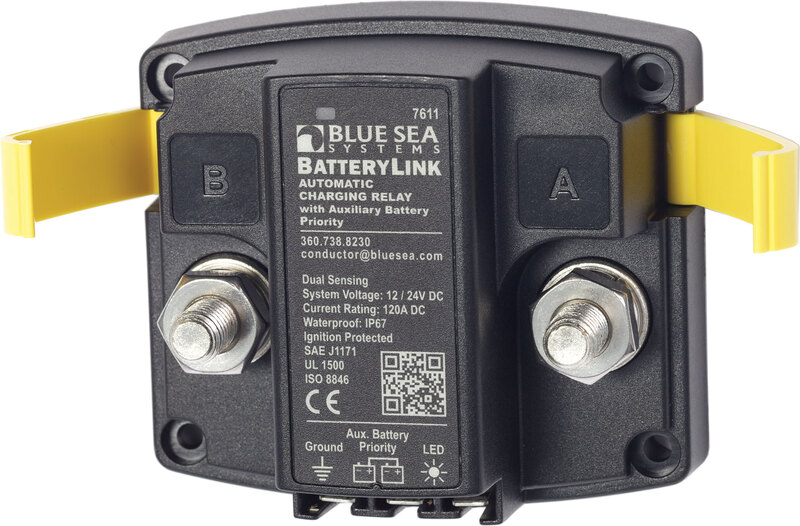

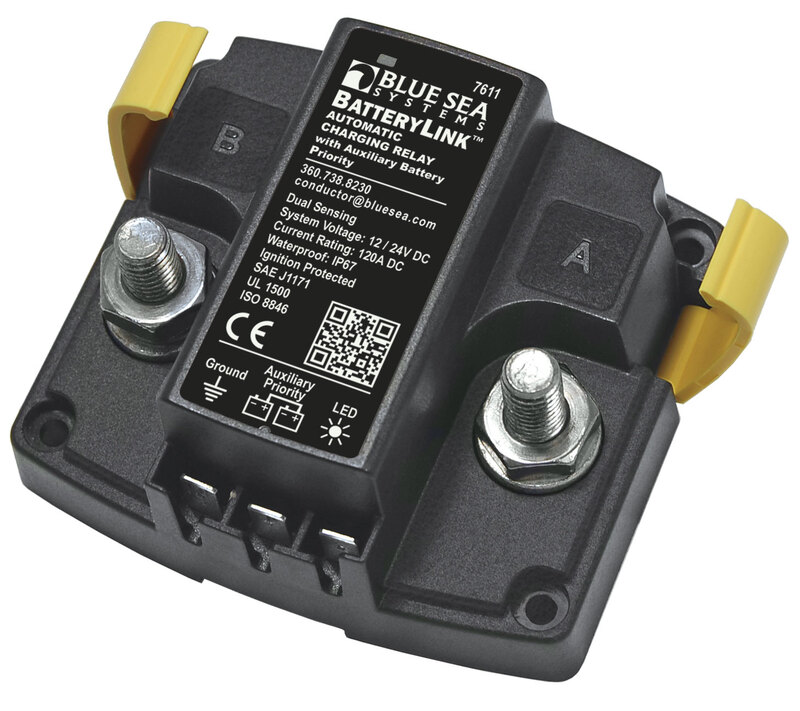

Blue Sea DC BatteryLink Automatic Charging Relay - 120 Amp W/Auxiliary Battery Charging • 7611-BSS
Product Details
Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time. Remote LED remotely indicates ACR states - requires optional LED.
- Function: Automatically Shares Single Source Of Charge With Auxiliary Battery
- Operating Voltage: 12/ 24 Volt
- Ampere Rating: 175 Milliampere

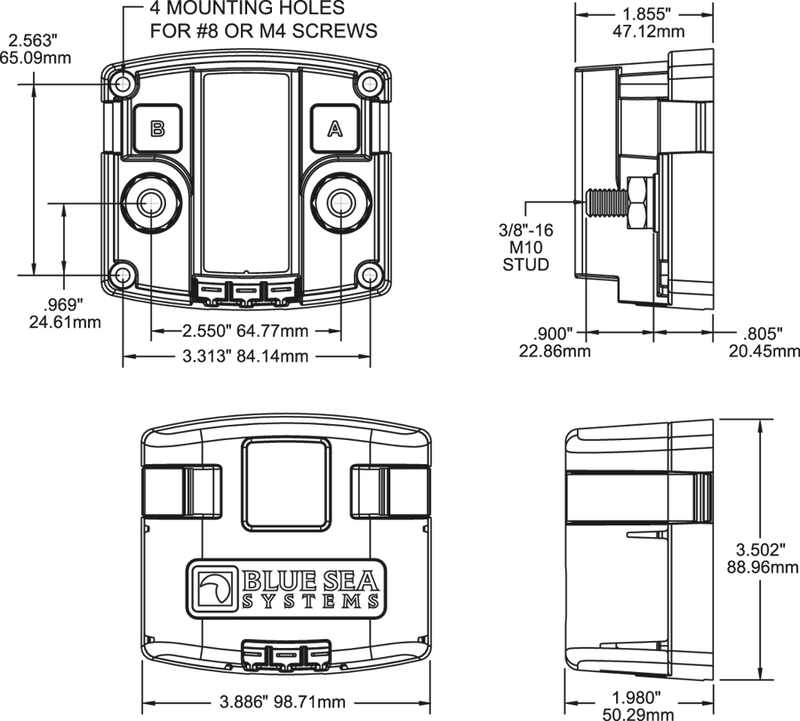

- Length (IN): 3-1/2 Inch
- Width (IN): 3.88 Inch
- Height (IN): 1.98 Inch
- Mounting Type: Panel
- 120 Ampere Continuous Rating
- Senses Charging On Two Battery Banks
- Side And Bottom Knockouts For Cable Connections
- Clip-On Cover Insulates Terminal Connections
- 7/8 Inch Stud Length To Accept Multiple Cable Terminals
- Integrated LED Indicates ACR Status
- Male Quick Connect Terminals For Ground And Optional Features
- Largest Battery Bank Cannot Exceed Group 27
$107.99
