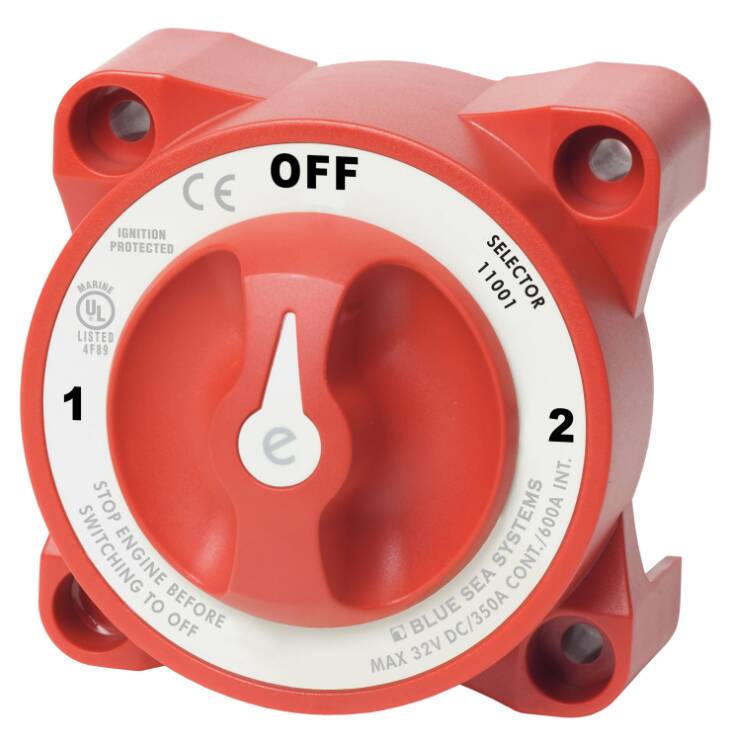

Blue Sea e-Series 32 V DC 350 A 3-Position Red Tinned Copper Selector Battery Switch with AFD , 3 Pieces • 11001-BSS

Switches a single battery to a single load group.

• Includes AFD (Alternator Field Disconnect)
• Ignition protected-safe for installation aboard gasoline powered boats

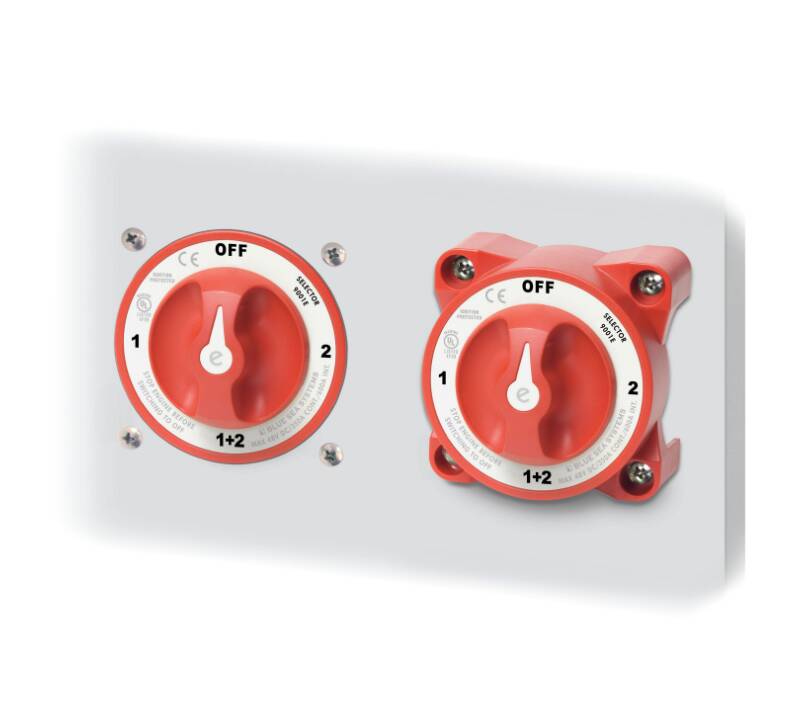

• Case design allows surface or rear panel mounting
• Current: 32 V DC
• Amperage: 350 A
• Position qty: 3-Position
• Color: Red
• Material: Tinned Copper
• Alternator Field Disconnect: Yes
• Battery Combine: No
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Cranking Rating 30 sec: 1200A
• Intermittent Rating: 600A (5 min)
• Mounting Holes: Accept 1/4" (M6) Screw
• Terminal Stud Size: 3/8" - 16 (M10)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
