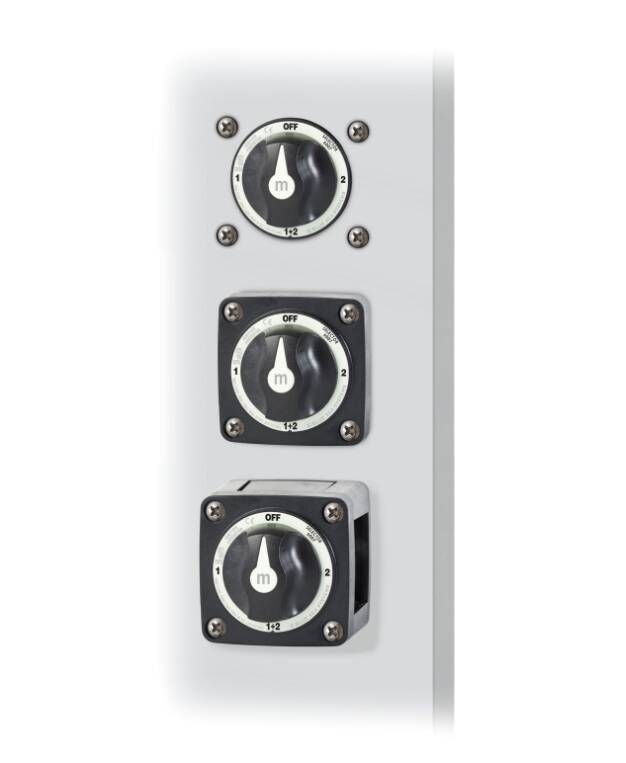

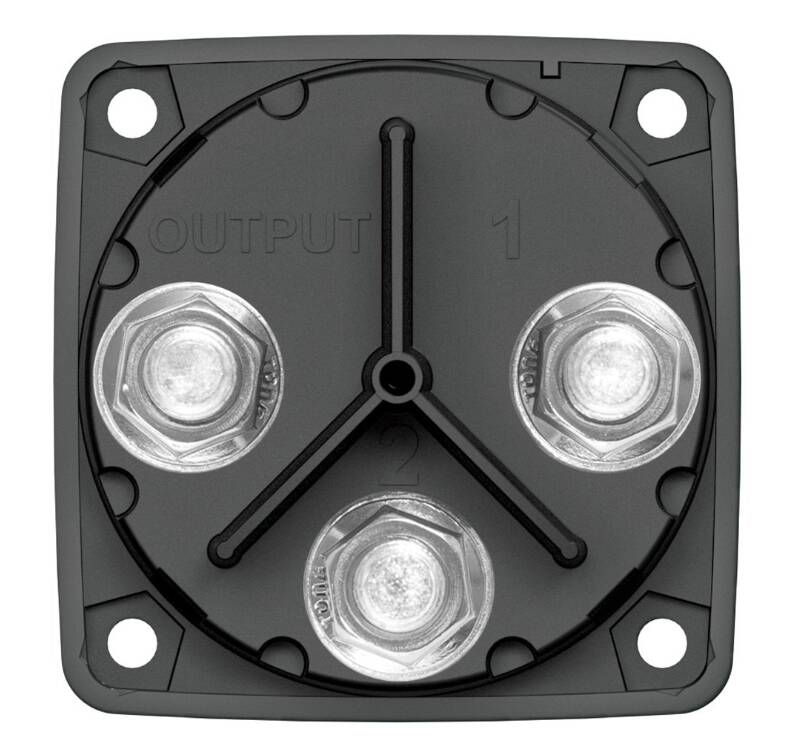

Blue Sea M-Series 32 V DC 500 A Black Tinned Copper Selector Battery Switch • 6007200-BSS
Product Details
Switches isolated battery banks to all loads or combines battery banks to all loads.
- Make before break contact design allows switching between battery banks without power interruption
- Current: 32 V DC
- Amperage: 500 A
- Color: Black
- Material: Tinned Copper
- Alternator Field Disconnect: No
- Battery Combine: Yes
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Cranking Rating 30 sec: 900A
- Intermittent Rating: 500A (5 min)
- Mounting Holes: Accept #10 Screw
- Stud Size: 3/8"
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
$39.99
Only 8 left in stock - order soon
Quantity
