Blue Sea M-Series Automatic Charging Relay • 7601-BSS

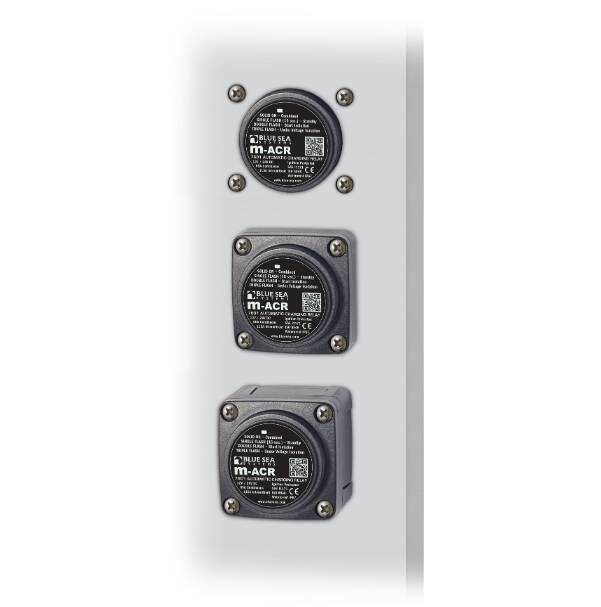

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines. Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes. The compact design allows for three mounting styles: surface, rear, or panel mount.

---

• Operating Voltage: 12/ 24 Volt
• Ampere Rating: 65 Amp Continuous/ 115 Amp Intermittent
• Mounting Type: Surface/ Panel Mount
• Senses Charging On Two Battery Banks
• Pull Off And Snap On Insulating Cover
• LED Indicates ACR Status
• 1 /4 Inch X .032 Inch Male Quick Connect Terminal For Ground
• 7/16 Inch Stud Length To Accept Multiple Cable Terminals
• Waterproof – Rated IP67 For Temporary Immersion
