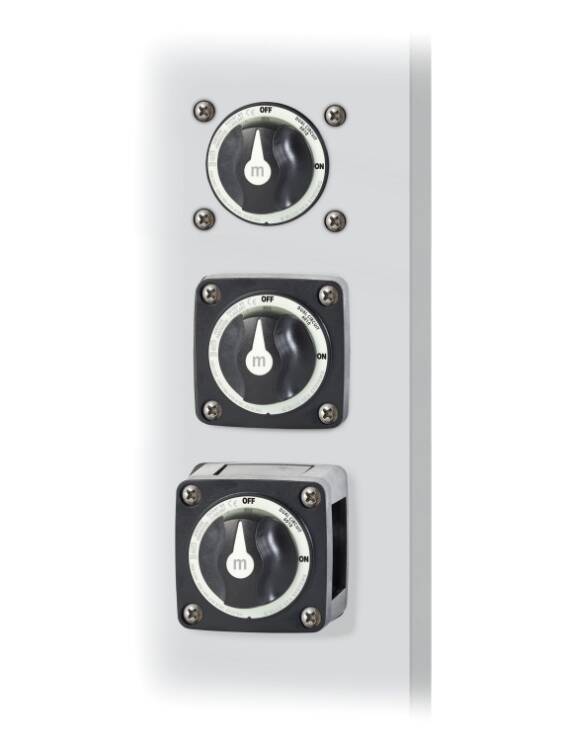

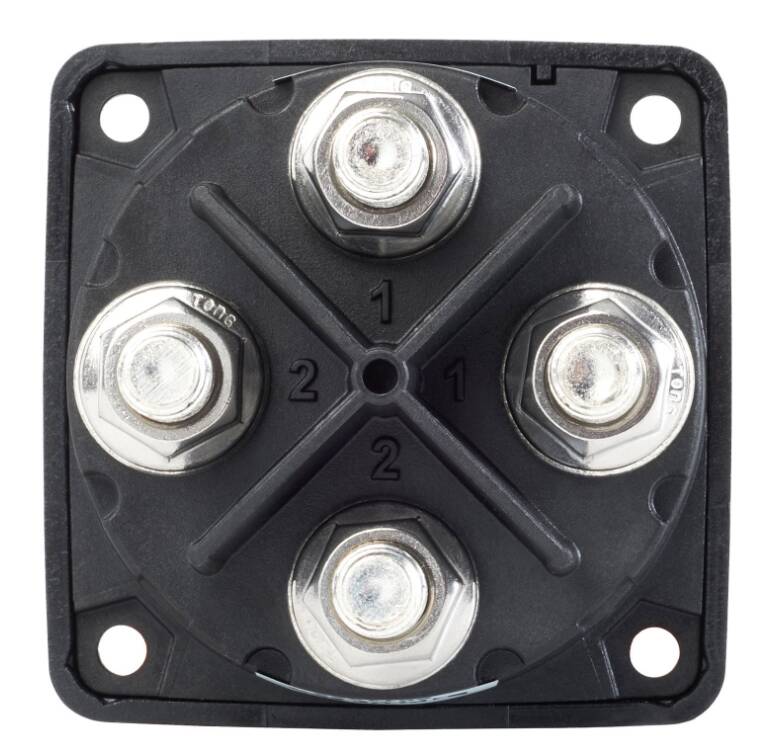

Blue Sea M-Series Mini 32 V DC 300 A 2-Position Black Tinned Copper 2-Circuit Battery Switch • 6010200-BSS
Product Details
Simultaneously switches two isolated battery banks.
- Current: 32 V DC
- Amperage: 300 A
- Position qty: 2-Position
- Color: Black
- Material: Tinned Copper
- Circuit: 2-Circuit
- Alternator Field Disconnect: No
- Battery Combine: No
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Cranking Rating 30 sec: 675A per circuit
- Intermittent Rating: 450A (5 min)
- Mounting Holes: Accept #10 Screw
- Stud Size: 3/8"
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
$42.99
12 in stock
Quantity
