Blue Sea
Product Details

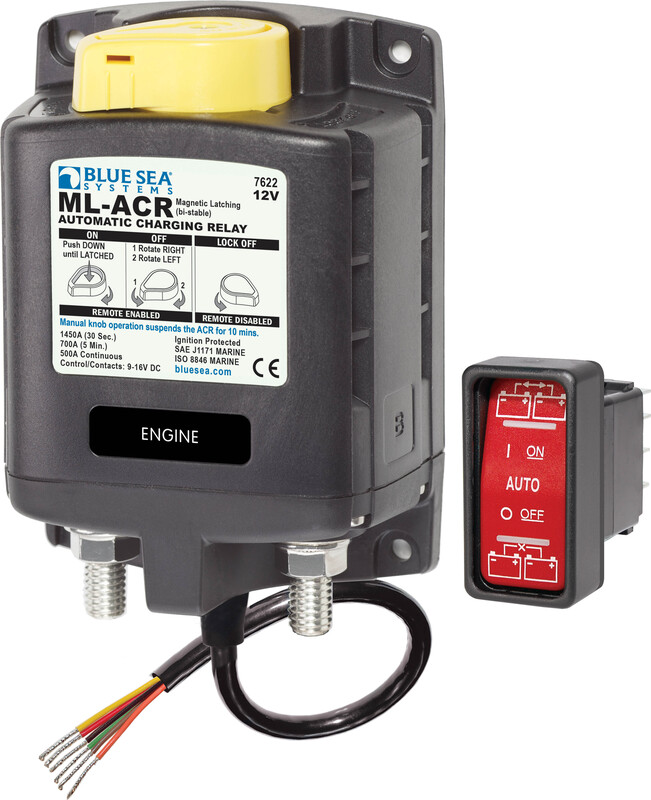

500 Ampere Magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.


  • Operating Voltage: 12 Volt
  • Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent
  • Automatically Manages The Charging Of Two Large Battery Banks
  • Allows Paralleling Of Battery Banks For Emergency Starting
  • 500 Ampere Continuous Rating To Support High-Output Alternators
  • Magnetic Latch (ML) - ACR Draws Very Low Current In The "ON" Or "OFF" States, And Draws Moderate Current For Very Short Time When Changing State
  • Dual Sensing- Senses Charge On Both Battery Banks
  • Start Isolation (SI)- Can Be Configured For Temporary Isolation Of House Loads From Engine Circuit During Engine Cranking To Protect Sensitive Electronics
  • Engine Isolation (EI)- Can Be Configured For Isolation Of Two Engines While Both Are Running To Protect Engine Electronics And Maximize Alternator Output Senses Charging On Two Battery Banks
  • LED Output To Remotely Indicate When Batteries Are Combined, Isolated, In Voltage Lockout, Or In Start Or Engine Isolation
  • Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance/Silver Alloy Contacts Provide High Reliability For Switching Live Load
$278.99
