Brandmotion 07-18 Summitview Jeep Wrangler JK Dual Camera Vision System for Factory Display • SUTV-8849

• Brandmotion Exclusive Stainless Steel Rear Tire Mount Ensures Perfect Fit
• Better Than OEM Design Allows For Seamless Integration
• Fully Adjustable Camera Bracket Design To Accommodate Virtually Any Wheel
• Includes Dual Input Interface for 6.1″ Factory Display

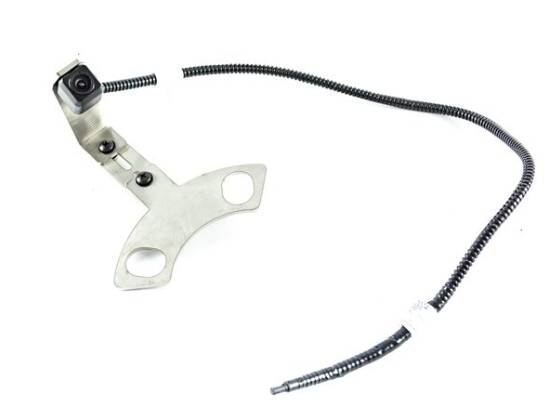

Front Camera Specifications

• High Quality CMOS Camera
• Jeep Wrangler Specific Harness
• 648 x 488 Resolution 480p
• 0.1 Lux For Better Illumination And A Sharper Image
• Parking Gridlines Optional
• Format: NTSC
• 9-16V Operating Voltage Range
• Color Image With Automatic White Balance
• Electric Auto Iris
• 150º Horizontal Field of View
• 100º Vertical Field of View
• Waterproof Case With Anti-fog Lens
• IP Rating: IP 68

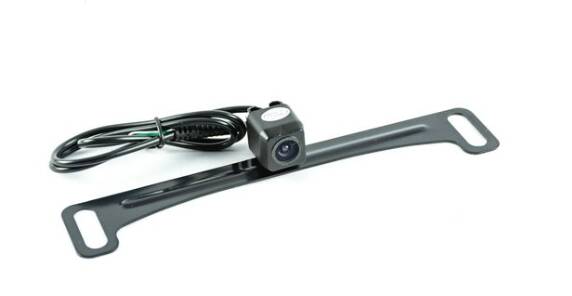

Rear Camera Specifications

• High Quality CMOS Camera
• 22 Foot Harness Length
• 648 x 488 Resolution 480p
• 0.1 Lux For Better Illumination And A Sharper Image
• Parking Gridlines Standard (Non-removable)
• Format: NTSC
• 9-16V Operating Voltage Range
• Color Image With Automatic White Balance
• Electric Auto Iris
• 150º Horizontal Field of View
• 100º Vertical Field of View
• Waterproof Case With Anti-fog Lens
• IP Rating: IP 68

Interface Specifications

• Adds 2 Inputs (1 If Vehicle Has A Factory Backup Camera)
• Gives Ability To Add Front Facing or Turn Signal Activated Camera
• Interface Automatically Turns Off Front Facing Video At Speeds Over 7 MPH
• Ability To Activate Front Facing Camera By Activating Toggle Switch
• No Parking Gridline Overlay
• Supports 6.1″ MyGig Factory Display

Fitment

• Jeep Wrangler JK 2007-2018 with Factory 6.1″ Display
