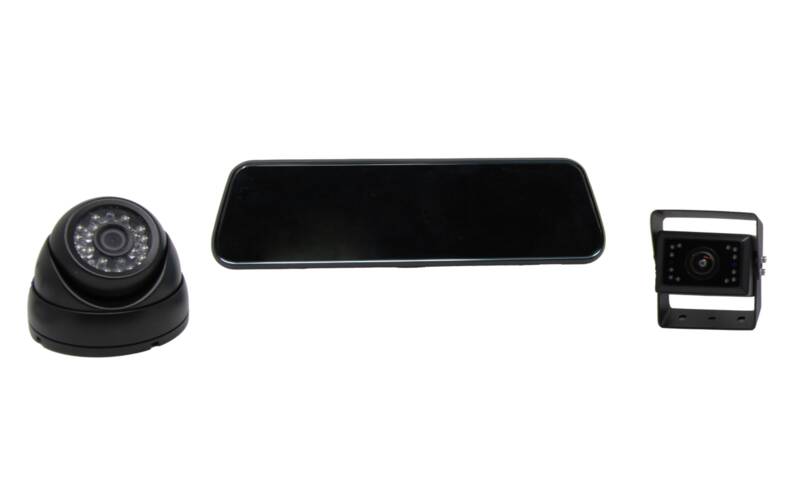

Brandmotion Universal Digital Rearview Mirror and Cargo Vision System • FVMR-1160

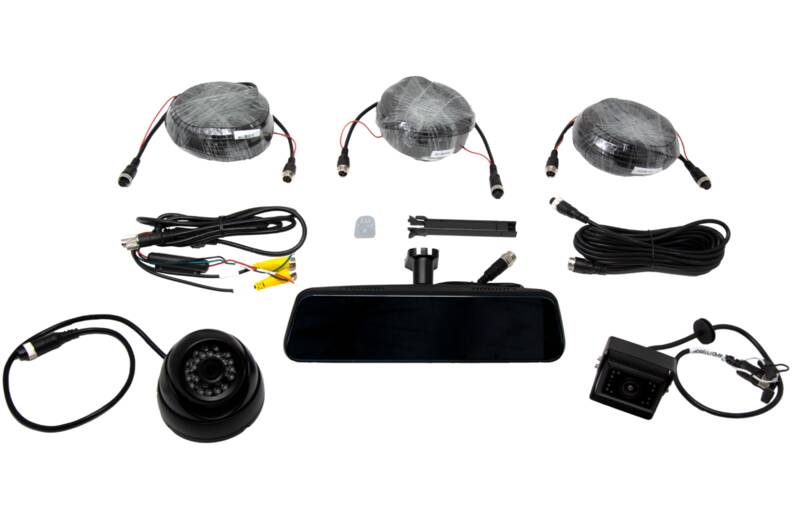

Introducing the Industry’s First Integrated Digital Mirror Cargo Vision System. Brandmotions FVMR-1160 is a 2 camera input, switchable mirror that gives real-time access to monitor cargo for shifts and prevent losses with a secondary rear-view camera for improved driver safety. This integrated design gives a high-quality OEM look with IR Night vision to see in all lighting conditions and an IP68 rating for all weather conditions.

Integration

• Integrates into Your Truck & Trailer
• Clever Design Allows for Multiple Uses
• Heavy-Duty Design for Increased Durability
• Ultra-High Quality Truck-to-Trailer Quick Disconnect Wiring
• Ultra-High Quality Truck-to-Trailer Quick Disconnect Wiring

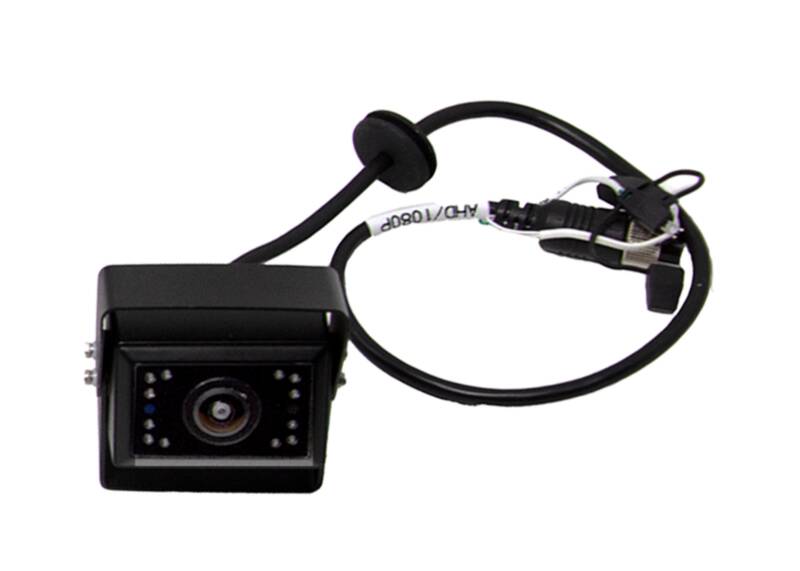

Rear Vehicle Camera Specifications

• Industrial Grade CMOS Camera
• 1280 x 390 Resolution 480p
• Camera dimensions: 2.5″ Wide x 2.2″ Deep x 2.3″ Tall (Bracket Adds 1.5″ Height)
• Included Harnessing
• 1920 x 1080 Resolution 1080p
• 0.1 Lux with Infrared for Better Illumination & Sharper Image
• Parking Gridlines Available
• Format: NTSC
• Not OnStar Compatible
• 9-16 V Operating Voltage Range
• Electric Auto Iris
• 170° Horizontal Field of View
• 130° Vertical Field of View
• Waterproof & Shockproof Case
• IP 68 Equivalent

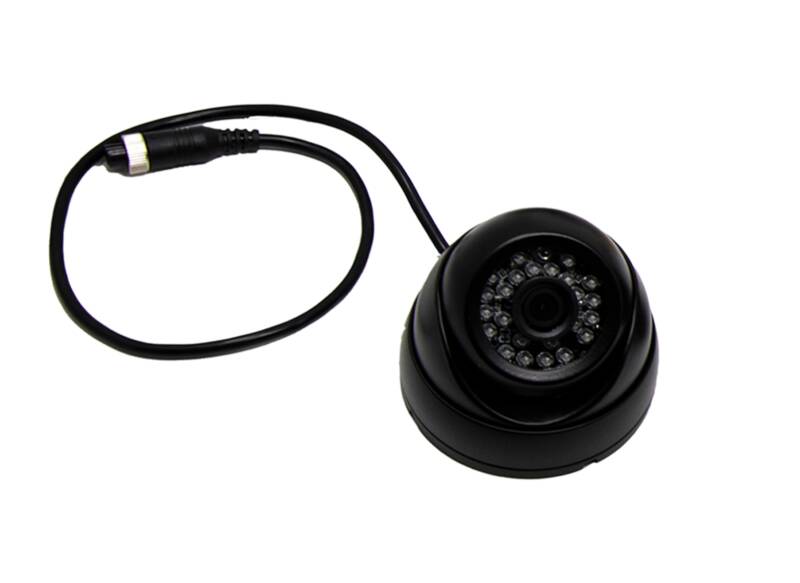

Cargo Box Camera Specifications

• Industrial Grade CCD Camera
• 1920 x 1080 Resolution 1080p
• 0.1 Lux with Infrared for Better Illumination & Sharper Image
• Parking Gridlines Available
• Format: NTSC
• 9-16 V Operating Voltage Range
• Color Image with Automatic White Balance
• Electric Auto Iris
• 150° Wide Viewing Angle
• Shockproof Case
• 4-Pin Aviation Connector
• Round Swivel & Fully Adjustable Mounting

Mirror Specifications

• Large, Vibrant 9.66″ Full Color Display
• 1980 x 320 Resolution 1080p
• 9.66″ Mirror with Edge-to-Edge Display Embedded
• 2 Inputs (4 Pin Aviation)
• 16:9 Aspect Ratio
• Format: NTSC & PAL
• 12-24 V Operating Voltage Range
• 2 Inputs Selectable via Bottom Button
• Mirror Functionality by Holding Bottom Button
• No Parking Gridline Overlay (May be Supplied by Camera)
