Brandmotion Universal Fit Dual Mount Camera With Infrared Light • 9002-7611





This low-cost aftermarket CMD camera is ideal if you’re looking to save some money and need a reliable camera. It features two unique mounting options; it can be installed behind the license plate or on a flat vehicle surface with minimal surface area requirements. This camera provides superior night vision thanks to the infrared lights on both sides of the camera. This camera features parking gridlines and as an added bonus, these lines can be turned off during installation. When using parking lines, it is recommended to mount the camera on the centerline of the vehicle.
Versatile Design Allows For Multiple Mounting Options

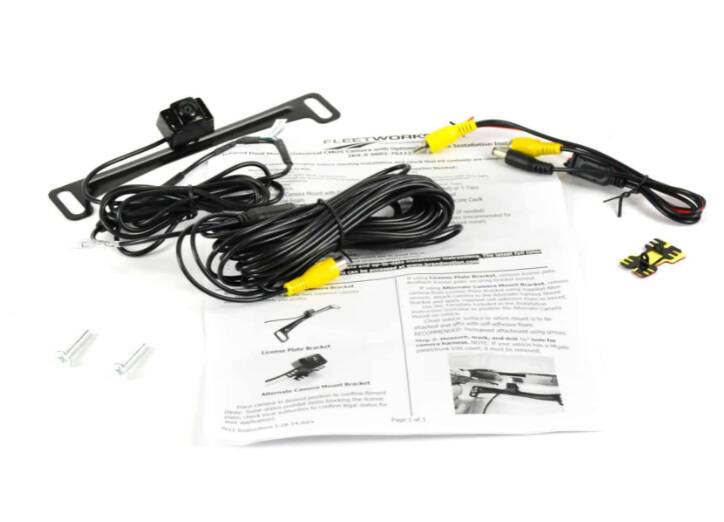

Includes Both A License Plate Mount And A Lip Mount
High Performance CMD-III Camera

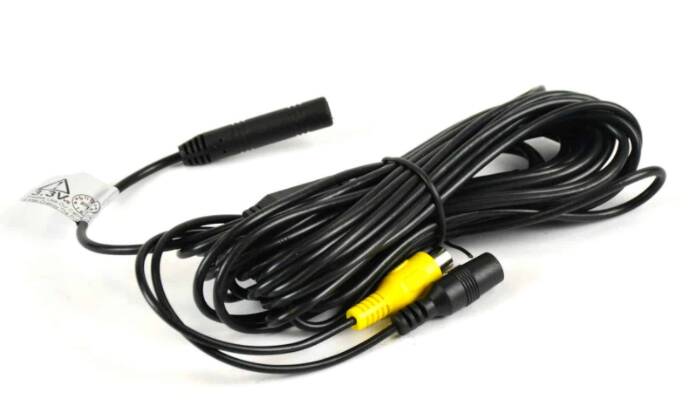

18 Foot Harness Length
768 x 494 Resolution 580p
0 Lux With Infrared For Better And A Sharper Image
Parking Gridlines Available And Image Mirroring Available
Format: NTSC
9-16V Operating Voltage Range
Color Image With Automatic White Balance
Electric Auto Iris
150º Horizontal Field of View
100º Vertical Field of View
Waterproof Case
IP Rating: IP 67
This is not a complete solution, you will need an aftermarket or factory display. You may need an interface to get a camera to work with the factory display.
This camera kit will fit any vehicle with a license plate when using the license plate bracket. When using the lip mount bracket the minimum surface required is 1.5 inches wide by .75 inches deep. This camera will connect to any display with a standard RCA plug.
1 Year Limited Warranty
