Brandmotion Universal Transparent Trailer HD Monitor Rear Vision System • TRNS-3110

• Integrates Into Your Truck And Trailer
• Clever Design Allows For Multiple Uses
• Heavy Duty Design For Increased Durability
• Ultra High Quality Truck-To-Trailer Quick Disconnect Wiring
• Includes 10m Vehicle Side Harness and 20m Trailer Side Harness

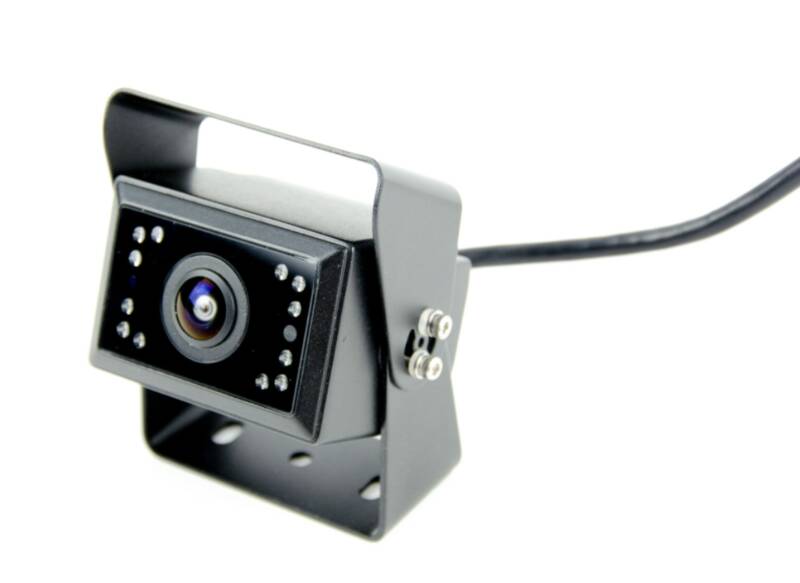

Camera Specifications

• Industrial Grade CMOS Camera
• Camera Dimensions: 2.5″ Wide x 2.2″ Deep x 2.3″ Tall (Bracket Adds 1.5″ Height)
• Included Harnessing
• 1920 x 1080 Resolution 1080p
• 0.1 Lux With Infrared For Better Illumination And A Sharper Image
• Parking Gridlines Available
• Format: NTSC
• 9-16V Operating Voltage Range
• Color Image With Automatic White Balance
• Electric Auto Iris
• 170º Horizontal Field of View
• 130º Vertical Field of View
• Waterproof and Shockproof Case
• IP 68 Equivalent

Monitor Specifications

• 7″ Screen (Measured Diagonally)
• 1920 x 1080 Resolution 1080P
• Display Dimensions: 6.75″ x 4.75″ x 1″
• 3 Inputs (4 Pin Aviation) With Trigger Wires
• 16:9 Aspect Ratio
• Format: NTSC or PAL
• 9-24V Operating Voltage Range
• Built-In Speaker
• Remote Control Included (Battery Sold Separately)
• Removable Sunshade
• No DVR Functionality
• Image Mirroring, Image Rotation, and Parking Gridlines Available
• Supports 1080P, 720P, and CVBS Cameras

This Universal Transparent Trailer Rear Vision System is designed to be able to easily add a camera to any trailer up to 65′ long. This kit will come with a single camera, quick disconnect truck-to-trailer harness, a 10m truck harness, a 20m trailer harness, and a 7″ display mirror as a complete rear vision solution.
