Brandmotion Wireless Transparent Trailer System for Ford F-150 (2015-Current) & Super Duty (2017-Current) • TRNS-2181
New
Product Details

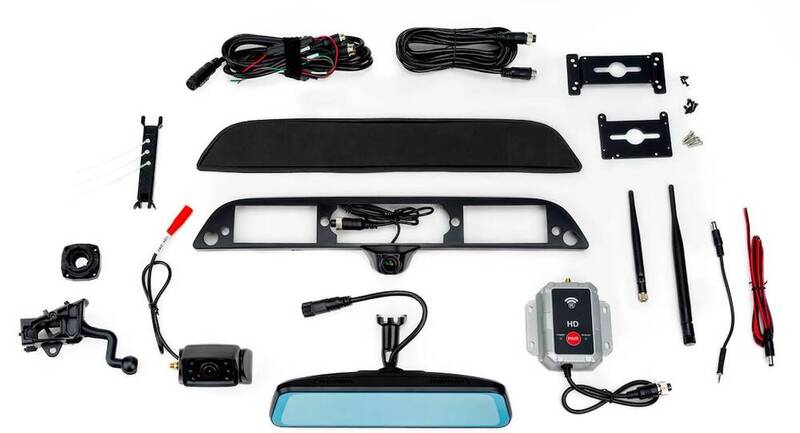

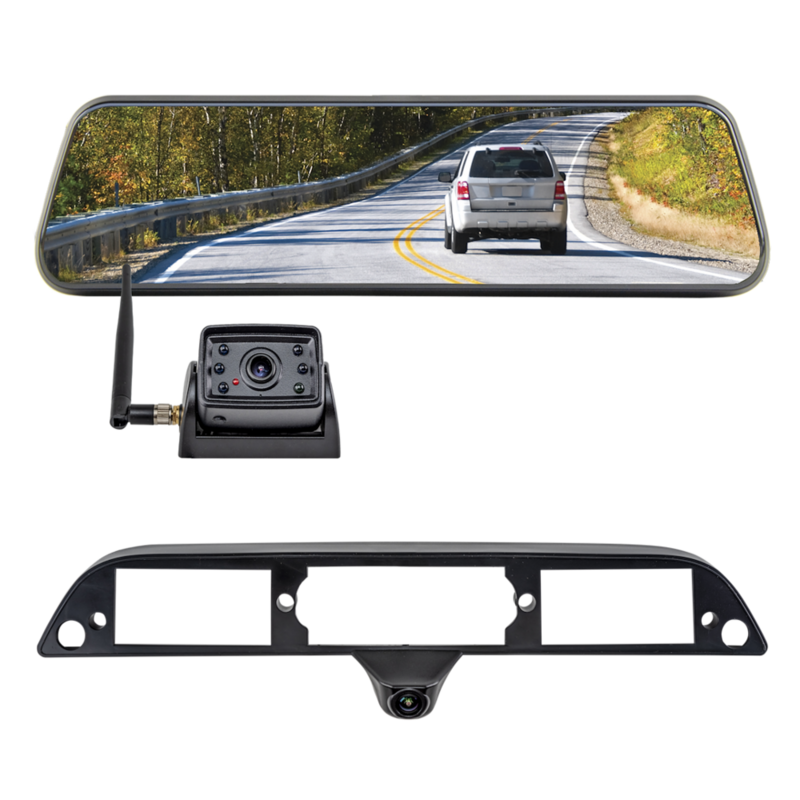

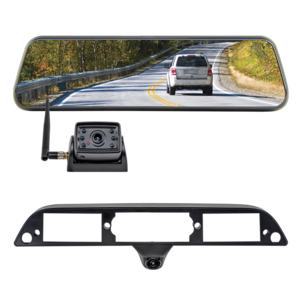

The Wireless Transparent Trailer® System eliminates blind spots and provides unobstructed visibility whether you’re pulling a trailer or not. The high-definition digital mirror replaces your traditional rearview mirror and provides two cameras: a truck-specific third brake light camera and a wireless camera on the rear of your trailer. Switch between the two views with the click of a button. Take the stress out of towing with this industry leading product!
Fitment:
- Truck specific third brake light camera bezel
- 2 cameras
- Wireless IP68 HD infrared trailer camera with 130º viewing angle
- Truck-specific bezel camera with a 170º viewing angle
- Includes mounting bracket for Furrion® and Voyager® pre-wired trailers

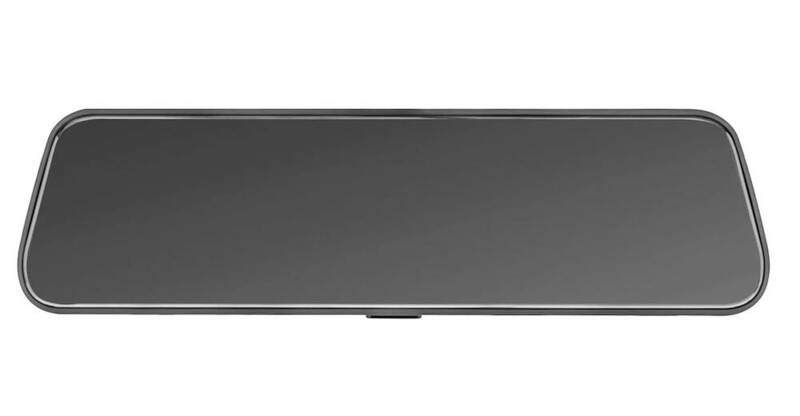

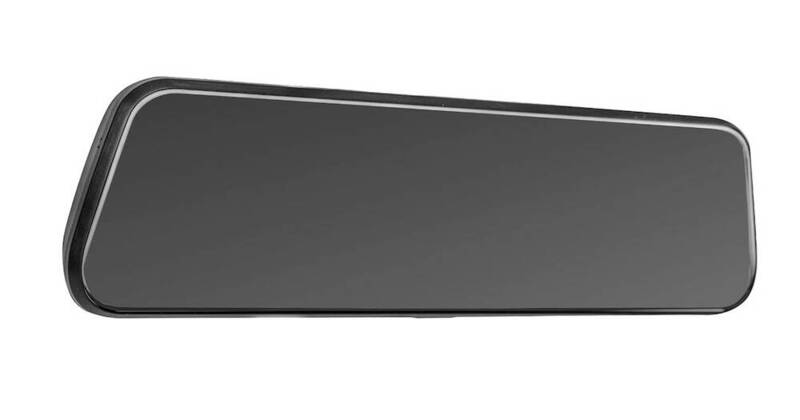

MIRROR
- Working Voltage DC 12V/24V
- Rated Voltage / Current
- Power Consumption
- Working Temperature -20°C to 70°C
- Storage Temperature -30°C to 80°C
- Display Brightness 800cd/m2
- Screen Size 9.66 inch
- Resolution 1080p
- Aspect Ratio 320*1980
- Camera Connection Type Wired (Max 2 cameras)
- Video Format Input AHD/CVBS
- 2 Video trigger input triggers

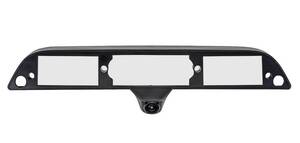

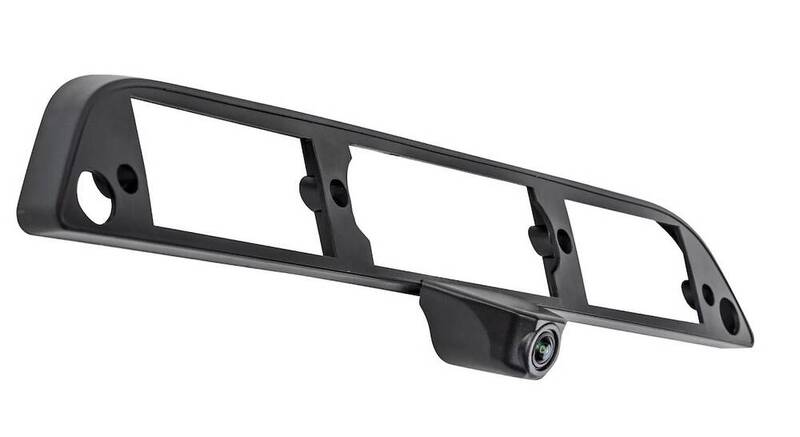

TRUCK CAMERA
- Working Voltage 6V – 16V
- Rated Voltage / Current <1W
- Working Temperature -10°C to 60°C
- Storage Temperature -30c to 70c
- Connection Type wired 4-pin avaitor
- Mounting Locations thrid brake light bezel
- Mounting Type rear
- Field of View 170°(H), 130°(V)
- Low Light Night Vision 0.1lux
- Lens Size 18.5*L22mm
- Waterproof Rating IP68
- Video Format Output AHD
- Resolution 1080p

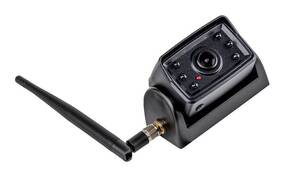

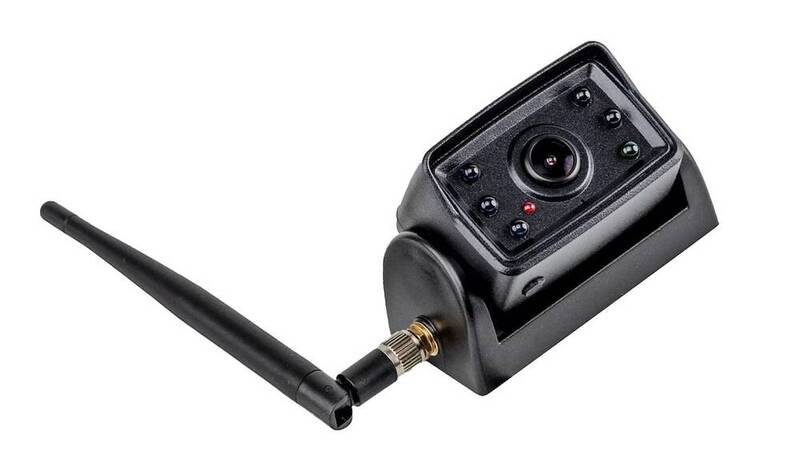

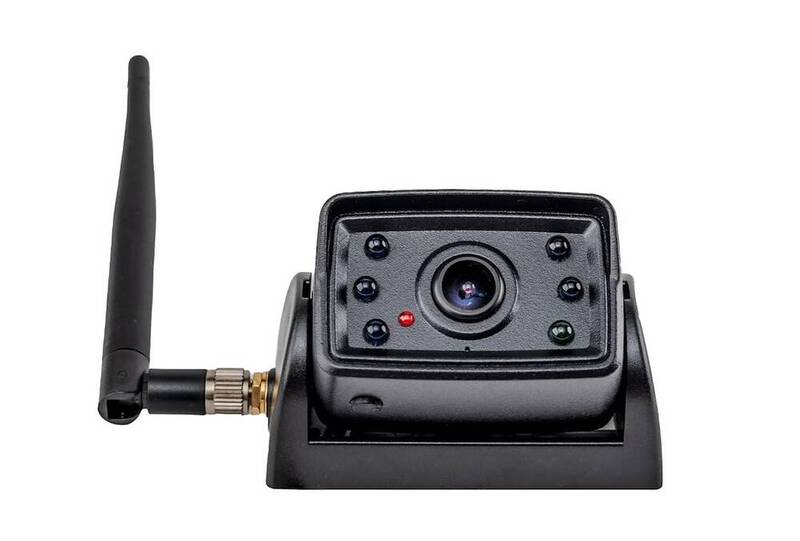

WIRELESS CAMERA
- Working Voltage DC12V & DC24V
- Rated Voltage / Current
- Working Temperature -20℃ to 70℃
- Storage Temperature -30℃ to 80℃
- Wireless Connection Type
- Rear Mounting Location
- Mounting Type Multiply bracket types for surface mount
- Field of View 110º (H), 80º (V)
- Low Light Night Vision 0.2 LUX
- Lens Size 22.6mm
- Built in IRs
- Waterproof Rating IP68
- Video Format Output AHD 2.4G
- Resolution 1936H×1096V
Fitment:
Ford F-150 (2015-Current) & Super Duty (2017-Current)
$774.36
in stock
