Bulldog Winch 12,000 lbs Trailer Winch with Wire Rope • 10039

Heavy-duty winch with 6-hp, permanent magnet motor lets you quickly and safely pull large vehicles onto your trailer. Low-profile winch fits easily into most custom boxes and cabinets. Includes wireless remote and mounting plate with hardware.

• Heavy-duty winch lets you pull trucks, vans, tractors, and other large vehicles onto your trailer
  • Perfect for gooseneck car haulers, flatbeds, tagalongs, dovetails, and large tilt trailers
• Low-profile design - fits easily into most custom cabinets or boxes
• Steel mounting plate and hardware included
  • Lets you mount winch and fairlead to trailer deck or frame
• 6-hp, Permanent magnet motor delivers powerful, fast, and safe line pulling
  • Motor is lighter and uses less current than a series-wound motor
  • Vent lets vapor escape to prevent moisture buildup
• Sealed, 450-amp contactor transmits power from your battery to the winch motor
  • Water- and weather-resistant to IP67 specifications
• Side-mounted power unit includes contactor, plastic housing, and all electrical wiring
• Automatic, mechanical brake holds 100 percent of the load while minimizing winch creep
• All-steel, 3-stage planetary gear train
  • Provides increased drum speed when compared with worm drives and 1- or 2-stage planetary gear trains

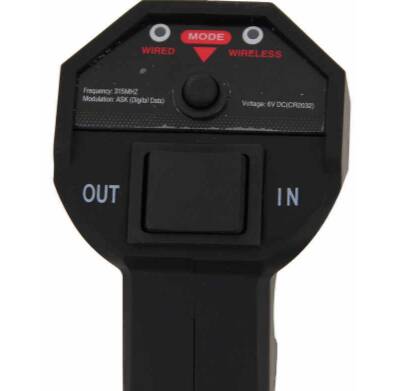

• Wireless, hand-held remote lets you operate the winch from up to 100' away
  • 20' Lead lets you plug in remote in case of battery failure
• Free-spooling clutch ensures fast rope payout and reduces wear on the motor
  • Gearbox can be rotated 360 degrees so you can reach the clutch handle no matter where you mount the winch
• 3/8" Diameter zinc-plated wire rope is strong and abrasion resistant
  • 90' Long, aircraft-grade galvanized steel cable
  • Steel spring tensioner allows easy rope management and ensures correct spooling
  • 3/8" Steel clevis hook and nylon hand-saver strap included
• Heavy-duty, compact roller fairlead
  • 4 Steel rollers reduce friction and wear on the rope
  • Silver-zinc-plated finish resists corrosion
• Durable, black powder coated steel body and motor resist corrosion
  • Dacromet-plated motor tube resists internal corrosion
• Tie-bars and side frames help to create a strong and rigid winch body

• Rated line pull (with a single layer of wire rope around the drum):
  • Static load: 12,000 lbs
  • Rolling load: 120,000 lbs
• Motor: 12-volt DC
  • Line pull at 0 lbs:
    • Power draw: 65 amps
    • Line speed: 21 FPM
  • Line pull at 12,000 lbs:
    • Power draw: 400 amps
    • Line speed: 4-1/2 FPM
• Gear ratio: 265:1
• Duty cycle: 2 minutes on/15 minutes off
• Braking: 100-percent load-holding mechanical
• Battery lead wire: 1 gauge
• Battery lead length: 6'
• Rope dimensions: 90' long x 3/8" (9.5 mm) diameter
• Winch dimensions: 24" long x 7-1/4" wide x 7-1/4" tall
• Drum dimensions: 2-1/2" diameter x 8-13/16" long
• Mounting bolt pattern:
  • Inside: 10" x 4-1/2"
  • Outside: 13" x 6-1/8"
• Distance between roller fairlead mounting holes (center to center): 10"
• Minimum winch box/cabinet size: 20" wide x 10" tall
• Wireless remote range: 100'
• Winch weight (with wire rope installed): 64 lbs
• Recommended battery size (for maximum power): 650 CCA
• 2-Year limited warranty
