Bulldog Winch 3,400 lbs Trailer/Utility Winch with Wire Rope • 15017
Product Details
- Rated Line Pull: 3400 lb
- Motor: 1.5 hp 12Vdc Permanent Magnet
- Switch: 250A Sealed Contactor

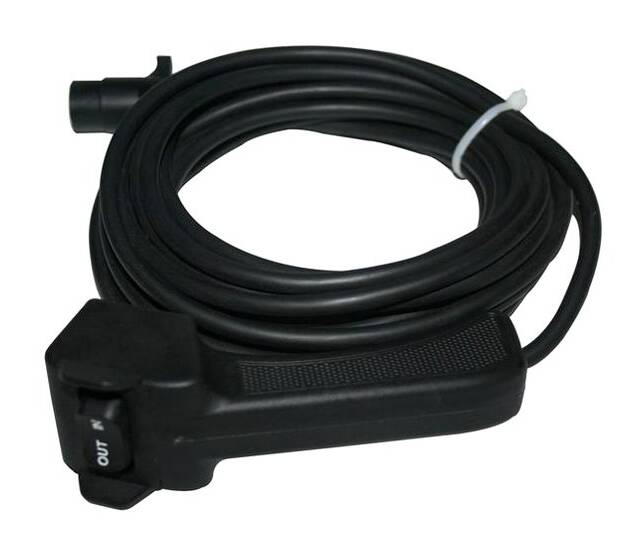

- Controller Wired: Hand Held with 20' Lead
- Controller Wireless: Optional 20212
- Battery Leads: 6'
- Gear Train: 3-Stage Planetary
- Gear Ratio: 166:1
- Clutch: Freespooling
- Brake: Automatic Load Hold In Drum
- Drum Dia x L: 2" x 3.15"
- Winch Mounting Bolt Pattern: 4.88" x 3" (124 x 76mm)

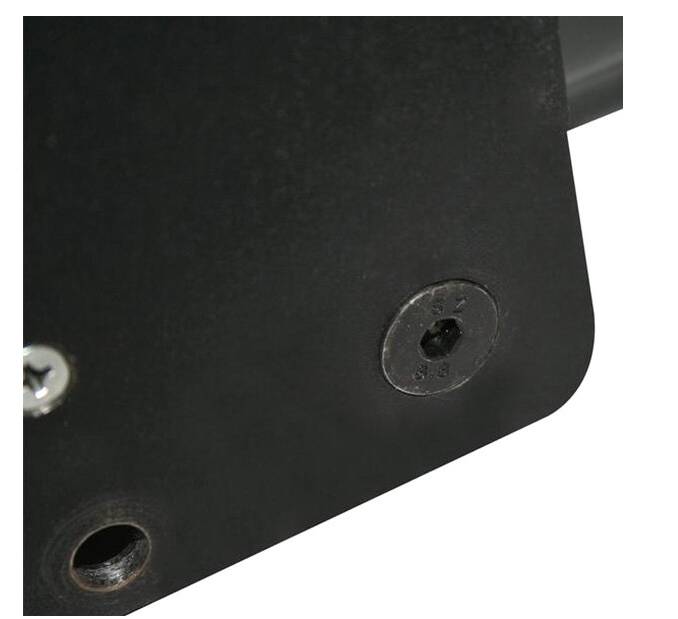

- Plate Mounting Bolt Pattern: 1.96" x 3.74" (50 x 95mm)
- Weight: 18.7 lbs
- Warranty: 2 Years Limited
- All-in-one design including the mounting plate for easy deck mounting
- low profile & compact design - even the largest size will fit into a 20" box/cabinet
- Premium 250A & 450A sealed contactors for dependable service
- 20ft wired controller for use at the back of the trailer & optional wireless available
- Shorter 45 to 55ft ropes on narrow drums with rope tensioner for easy spooling and rope management
- Designed to deliver superb functional performance
- Rugged construction for maximum strength and durability
- Engineered to withstand the most demanding conditions
$312.99
16 in stock
Quantity
