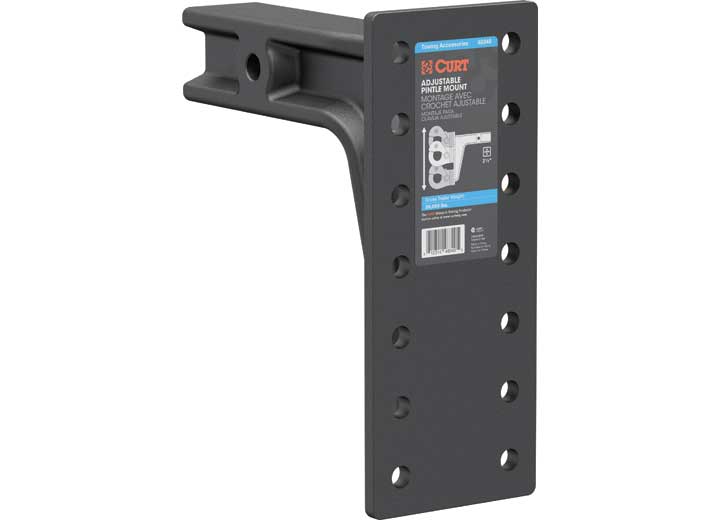

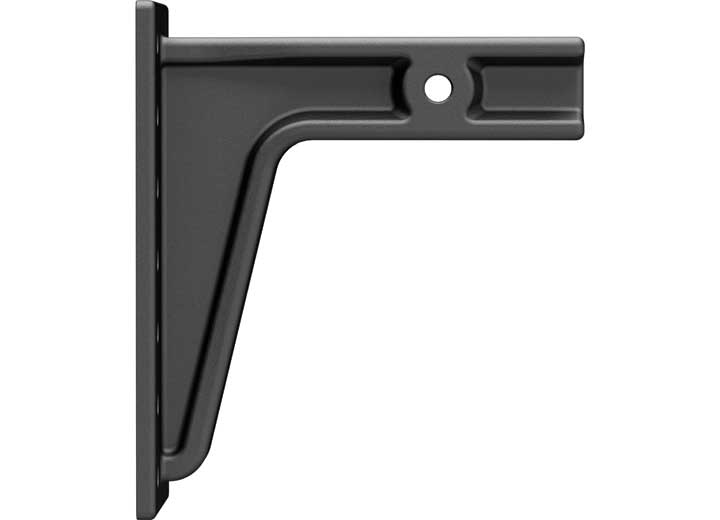

Curt Adjustable Pintle Mount, 2-1/2" Shank, 20,000 lbs., 12-1/2" High, 10-3/4" Long • 48349
Your truck might have the muscle and your hitch might have more capacity than you know what to do with, but what about a ball mount that can keep up? The CURT 2-1/2" adjustable pintle mount is the ideal heavy-duty counterpart to your full-size pickup and class 5 trailer hitch. Rather than using a reducer sleeve or hitch adapter to increase the shank size of your 2" mount, this pintle mount features a solid steel 2-1/2" x 2-1/2" shank. It can accept any mounted CURT pintle hook or ball and pintle combination, and with its 12-1/2" height, it offers up to six height adjustment positions (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Not only does the 2-1/2" x 2-1/2" pintle mount accommodate a variety of trailers with different coupler heights, but it also allows for use with the heaviest of loads. Its solid shank gives it the strength to accept a gross trailer weight up to 20,000 lbs. It also features a black carbide powder coat finish to ensure maximum resistance to chipping, scratches and rust. Never let your towing equipment hold you back from the job that needs getting done.
- Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
- Mounts any CURT adjustable pintle hook or ball & pintle combination

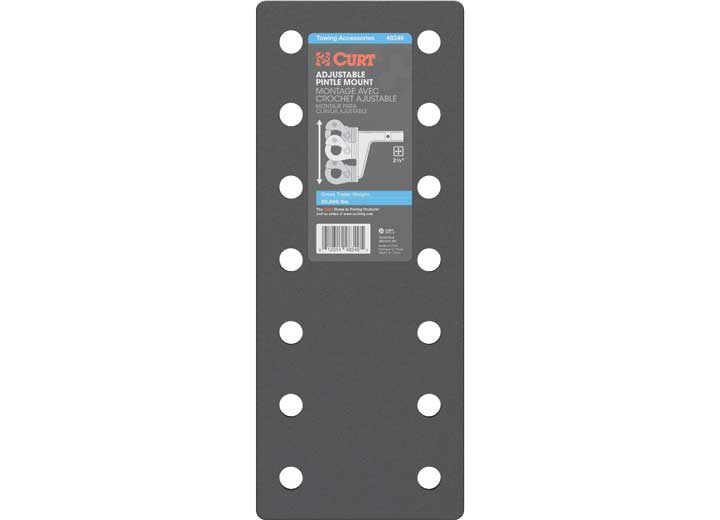

- Face plate holes spaced apart 1-3/4" high x 3-5/16" wide
- GTW: 20,000 LB
- Six-position height adjustment allows for precise trailer leveling
- Shank constructed from solid steel for optimum strength
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- For use in drop position only
