Curt Adjustable Pintle Mount, 2" Shank, 10,000 LBS, 7" High, 6" Long • 48323
Product Details

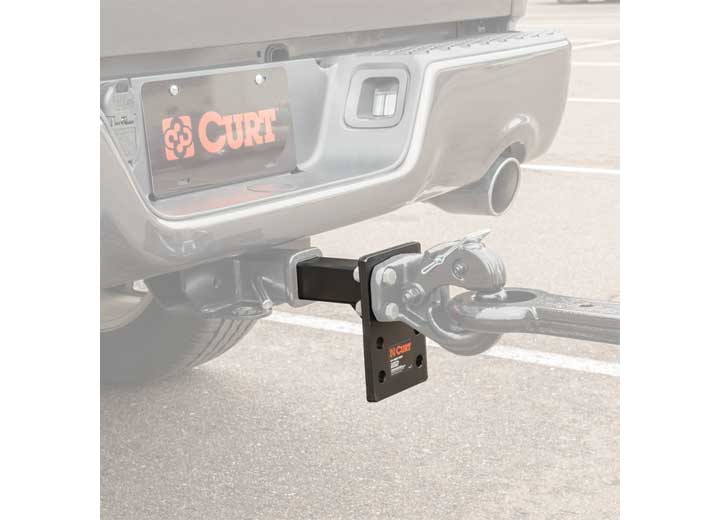

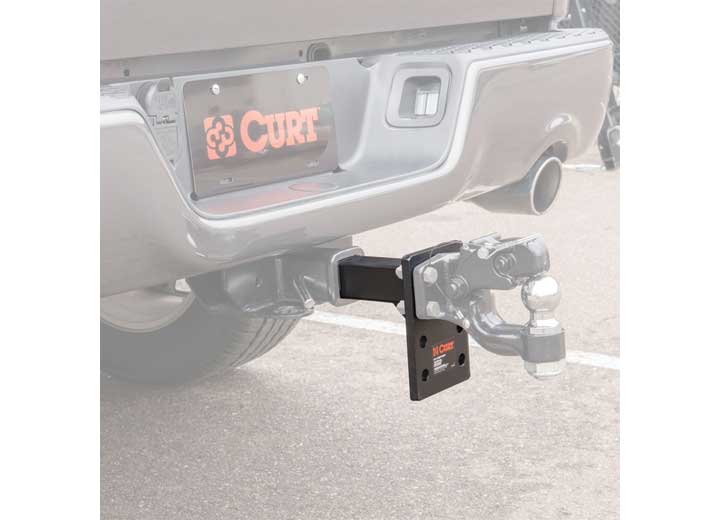

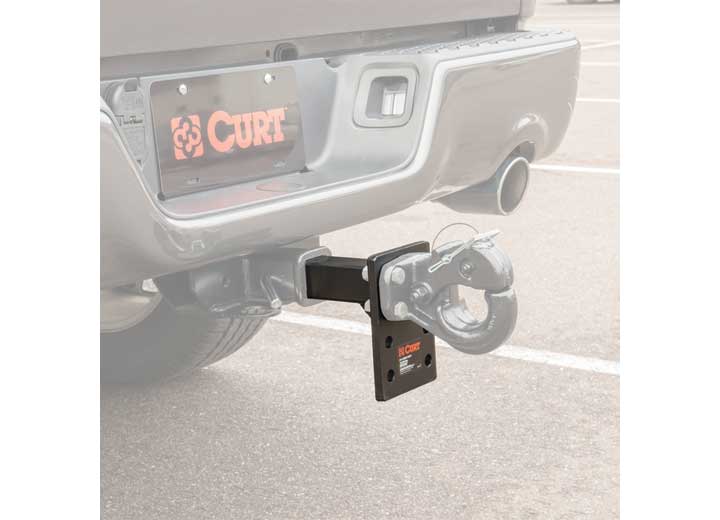

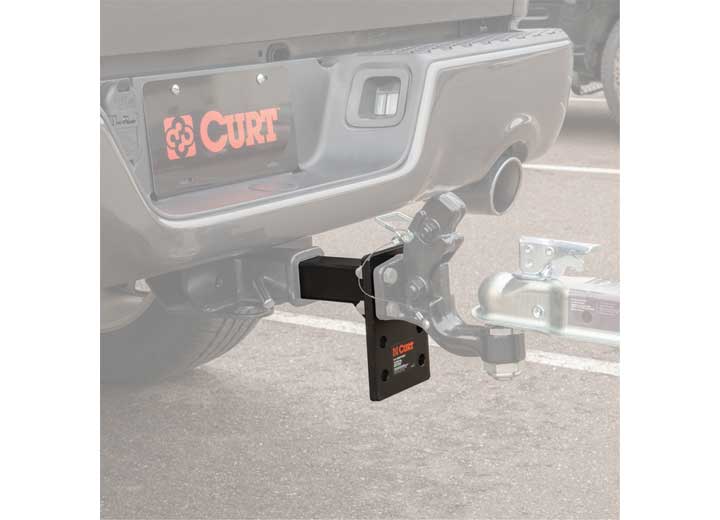

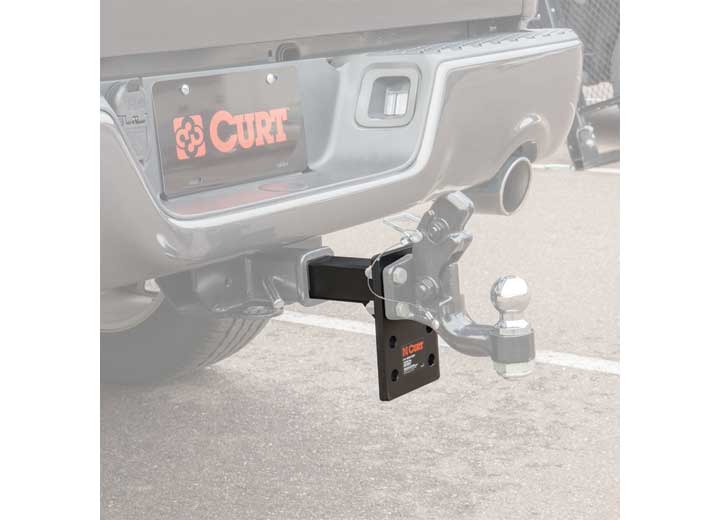

This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It features a series of mounting holes to provide three different mounting heights for the hook and can be mounted in any 2" x 2" receiver tube opening. This pintle mount offers a gross trailer weight capacity up to 10,000 lbs. and features a total plate height of 7", providing up to 6-1/2" of drop.

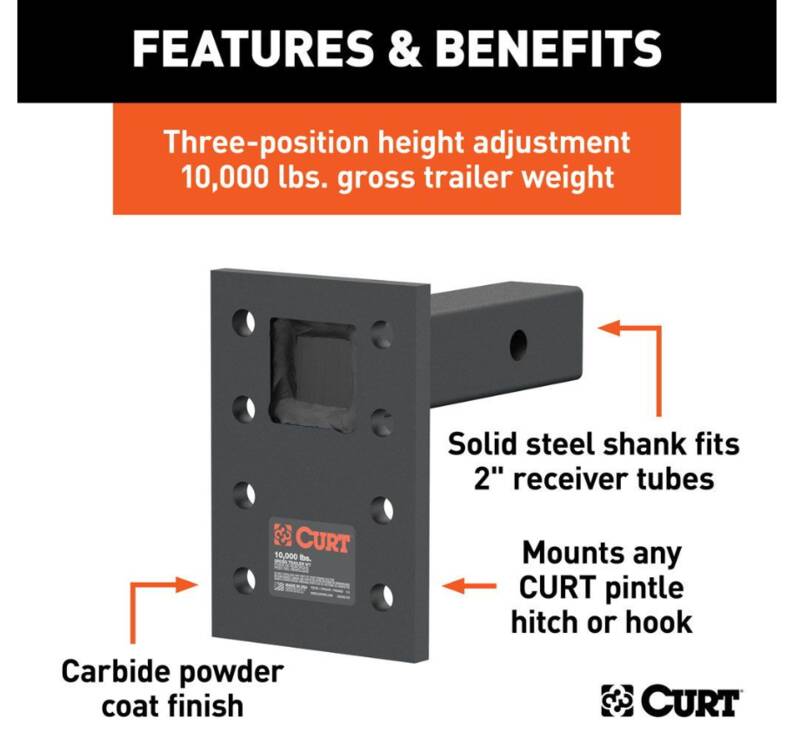

- Fits trailer hitches with a 2" x 2" receiver tube opening
- Mounts any CURT adjustable pintle hook or ball & pintle combination

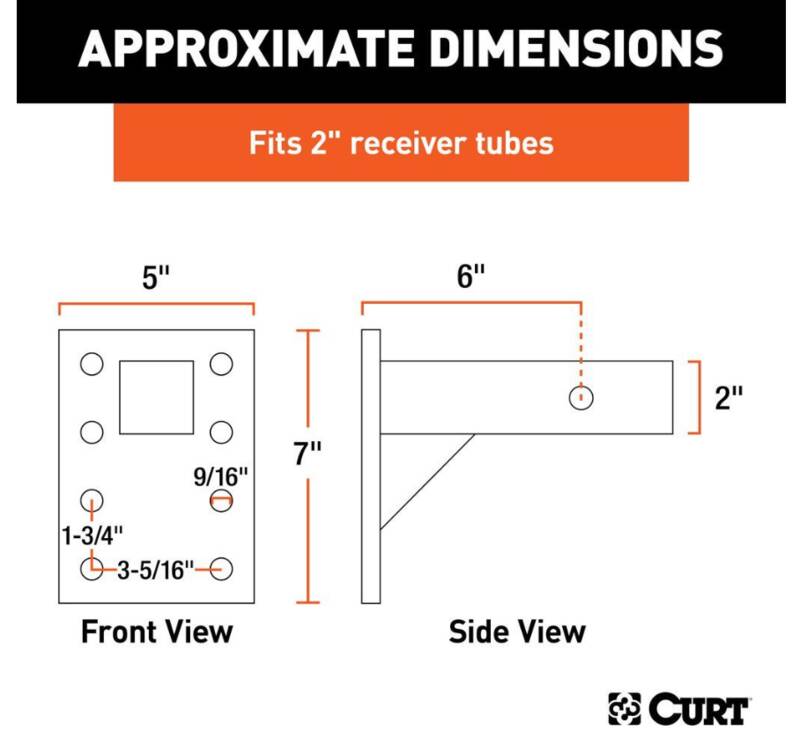

- Face plate holes spaced apart 1-3/4" high x 3-5/16" wide
- Three-position height adjustment allows for precise trailer leveling
- Shank constructed from solid steel for optimum strength
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Note: For use in drop position only
PRODUCT SPECIFICATIONS
Gross Trailer Weight (GTW): 10,000 LB
Shipping Weight: 14.130
Product Weight: 14.130
Part Type: Adjustable Pintle Mount
Max Drop: 6-1/2 IN
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Plate Height: 7 IN
Shank Length: 8-1/2 IN
Receiver Tube Size: 2 IN
Finish: CARBIDE BLACK POWDER COAT
