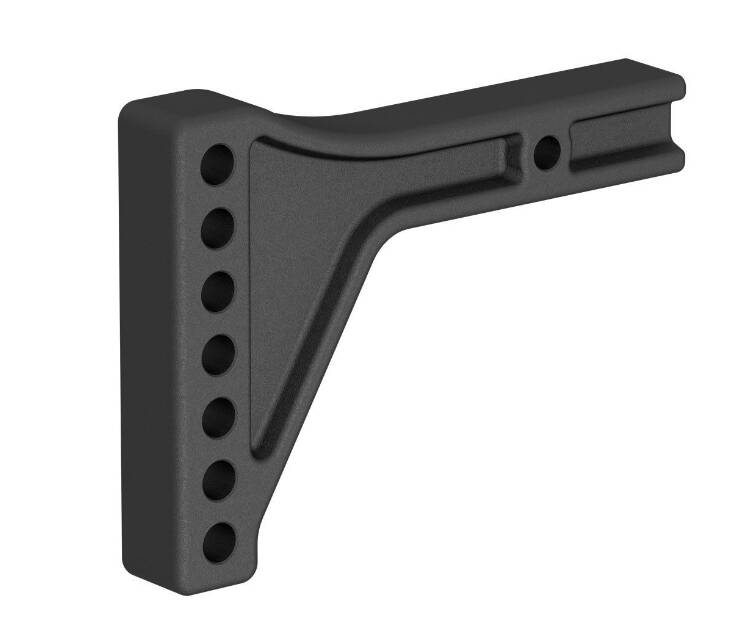

Curt Forged Weight Distribution Shank, 2" Shank, 3-1/8" Drop, 7-1/8" Rise • 17133

This CURT replacement weight distribution shank is compatible with all CURT weight distribution hitches. It can be used to replace a damaged shank or to give your WD hitch greater flexibility in vertical adjustment. It features a standard 2" shank, multiple mounting options and a high-strength construction that is fully tested for tough jobs and harsh conditions.  The 2" horizontal shank is designed to fit any 2" x 2" trailer hitch receiver. This makes it the perfect choice for most CURT class 3 hitches, class 4 hitches or Xtra Duty class 5 hitches. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8" diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver.  This particular weight distribution shank is 7-1/2" high by 8" long overall. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 7-1/2", this WD shank provides a maximum rise of 7-1/8". The entire shank can also be flipped in the receiver tube to provide a maximum drop of 3-1/8".

• Provides an adjustable mount for any CURT weight distribution hitch

• Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight

• Features multiple holes for adjustable head height

• Can be flipped to provide necessary drop or rise

• 3/4" diameter holes are spaced 1-1/4" from center to center

• Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole

• Constructed from forged steel for superior strength

• Protected by a durable powder coat finish

• Includes shank only (weight distribution hitch sold separately)

• Limited to spring bar capacity

• Limited lifetime warranty (one-year finish, one-year parts)
