New
Curt
Product Details

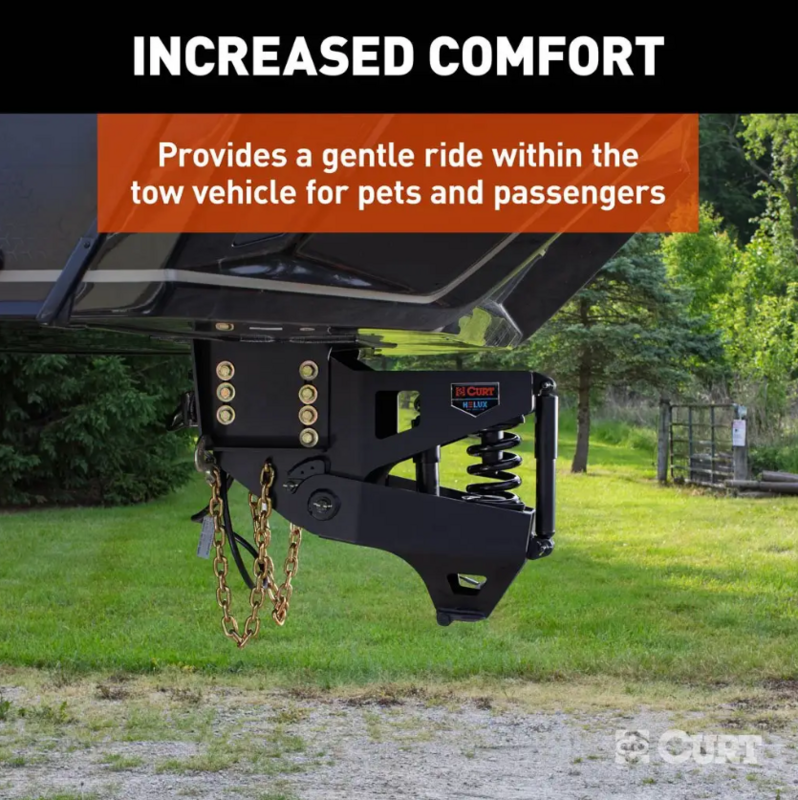

Upgrade your towing setup with the CURT Helux Coil-Spring Gooseneck Pin Box #2024044576, engineered for maximum comfort, safety, and control. Designed to replace standard 5th-wheel pin boxes and convert your trailer to a gooseneck hitch connection, the Helux combines coil-spring and shock-absorbing technology to deliver a smooth, quiet, and stable ride.

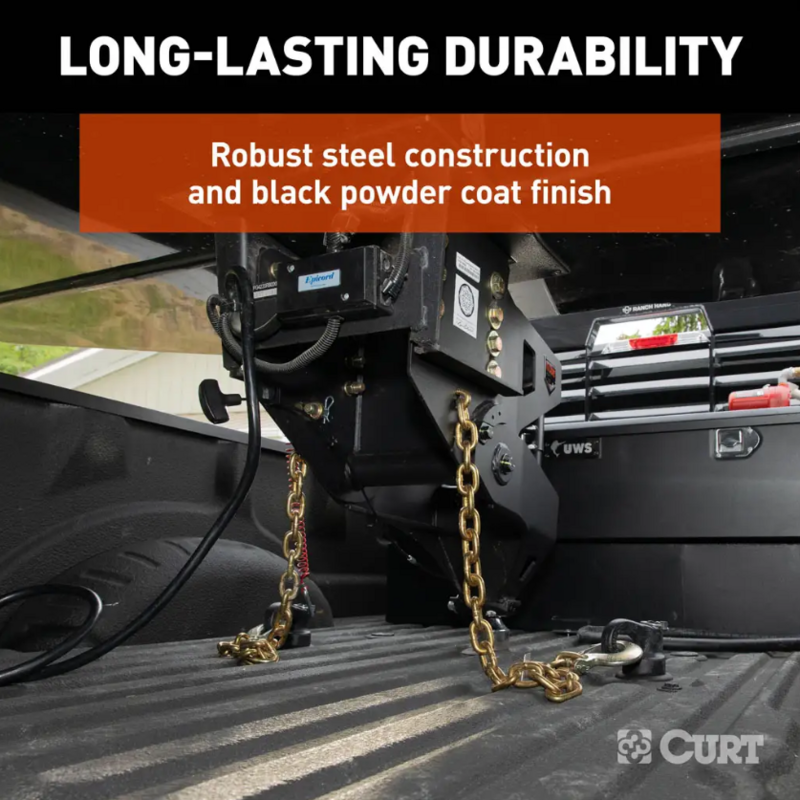

This premium CURT pin box is rated for up to 20,000 lbs gross trailer weight and a 3,200 lb maximum pin weight, making it ideal for large RVs and heavy-duty trailers. Its automotive-grade coil system reduces jarring and “chucking” by up to 30 percent, protecting your RV’s frame, body, and cargo. Built from high-strength carbon steel and finished with a durable black powder coat, the Helux resists corrosion and wear for years of dependable service.


The auto-latching 2-5/16″ gooseneck coupler simplifies hookup and frees up valuable truck-bed space versus traditional 5th-wheel hitches. Installation is straightforward with its bolt-on design compatible with the Rhino Box mounting pattern, and it includes safety chains, a cable-release kit, and mounting hardware for a complete install.


Proudly made in the USA with global materials and SAE J2638 tested, this pin box meets or exceeds all major towing safety standards. With a limited lifetime structural warranty and 1-year finish and parts coverage, the CURT Helux 2024044576 is the ultimate heavy-duty solution for anyone seeking the best combination of strength, innovation, and ride comfort in a gooseneck conversion system.
Key Features:

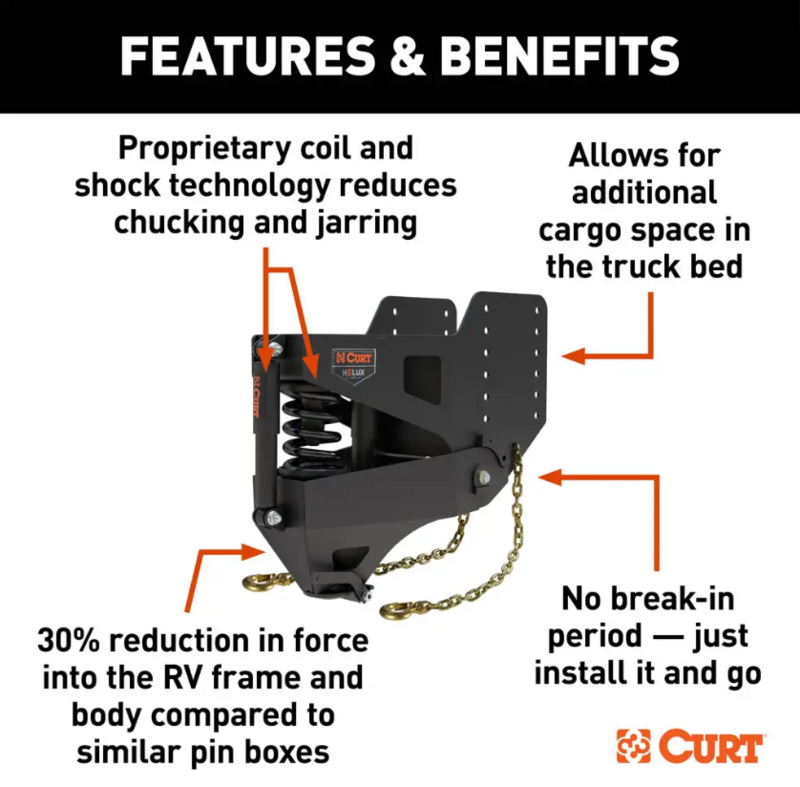

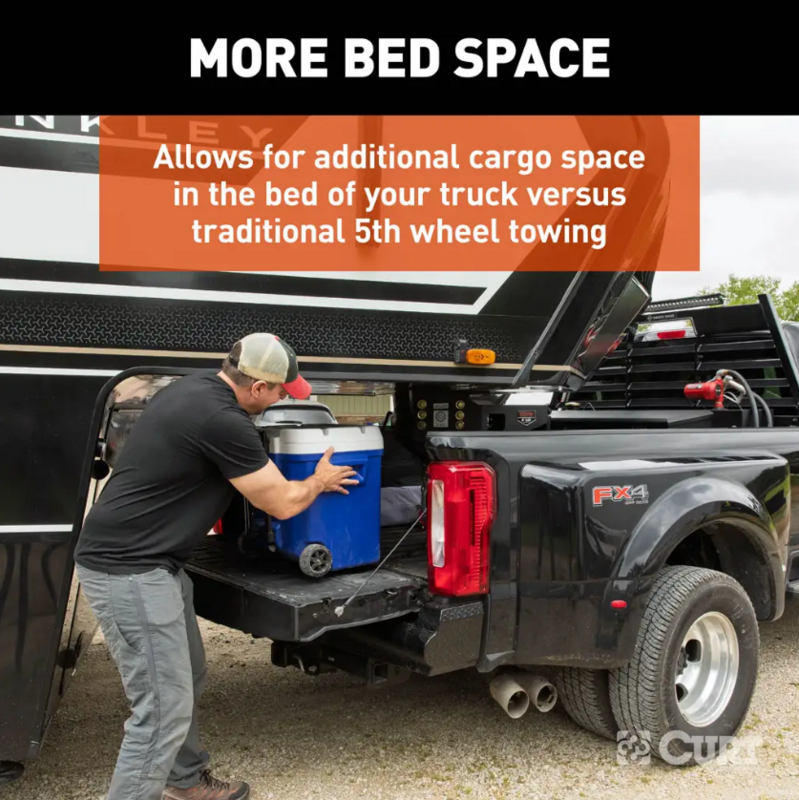

  • Converts 5th-wheel trailers to gooseneck towing for greater truck-bed space

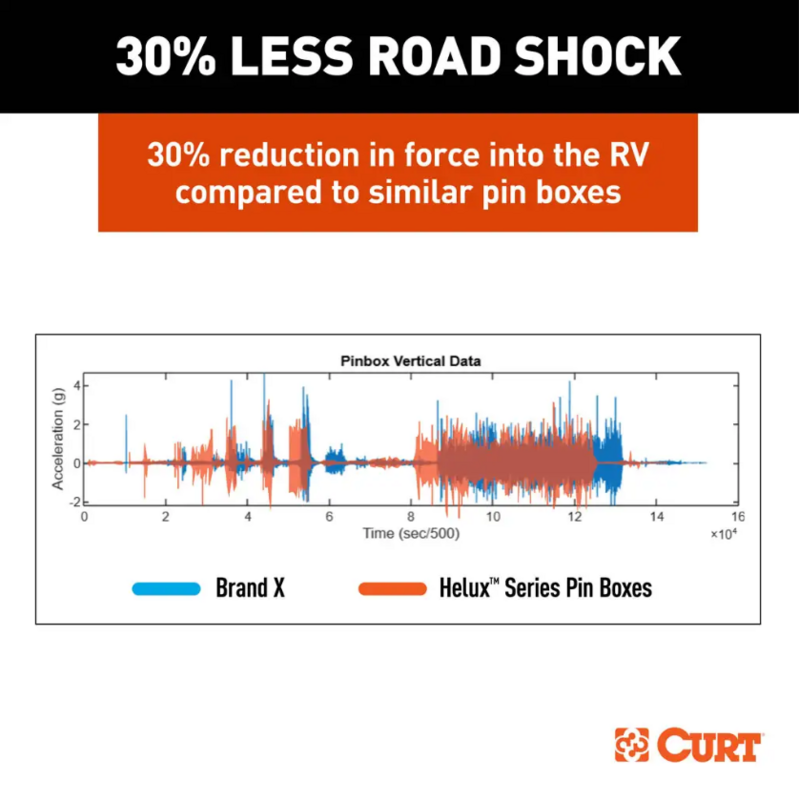

  • Proprietary coil and shock system cuts chucking and frame stress by up to 30 %

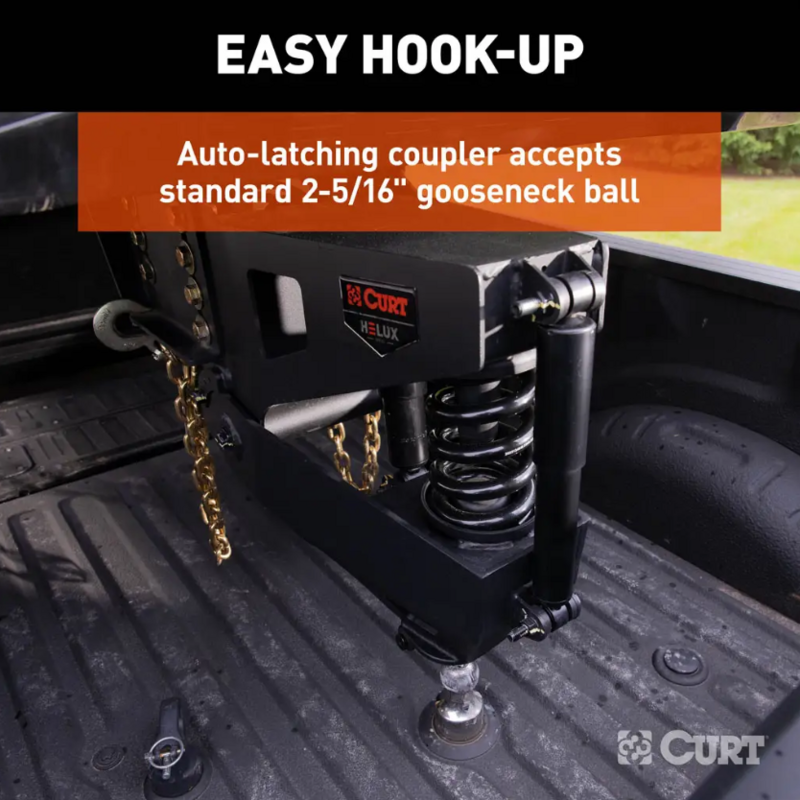

  • Auto-latching coupler fits standard 2-5/16″ gooseneck ball

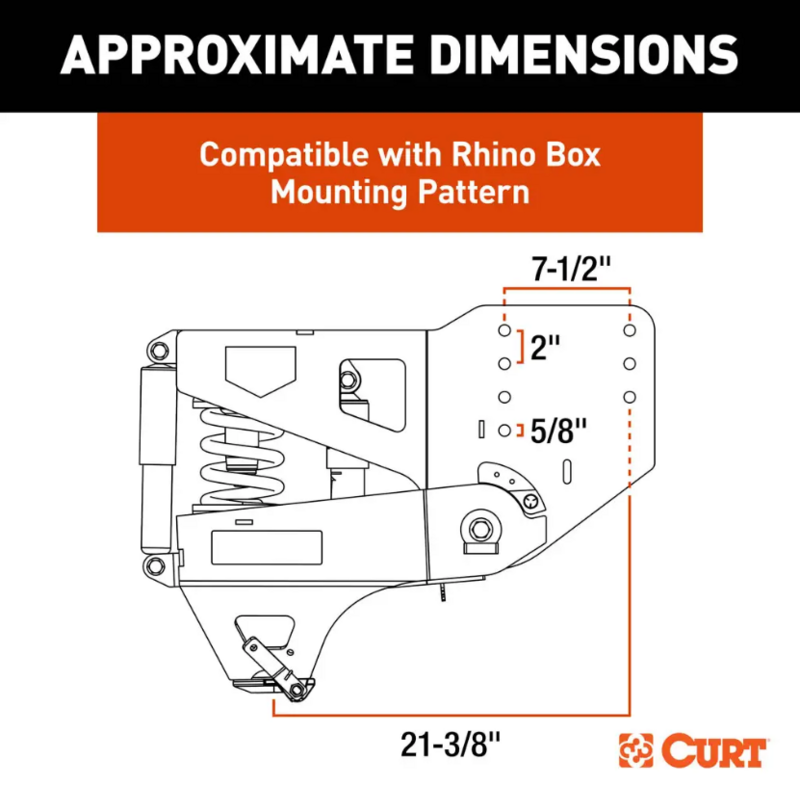

  • Bolt-on mounting, compatible with Rhino Box bolt pattern

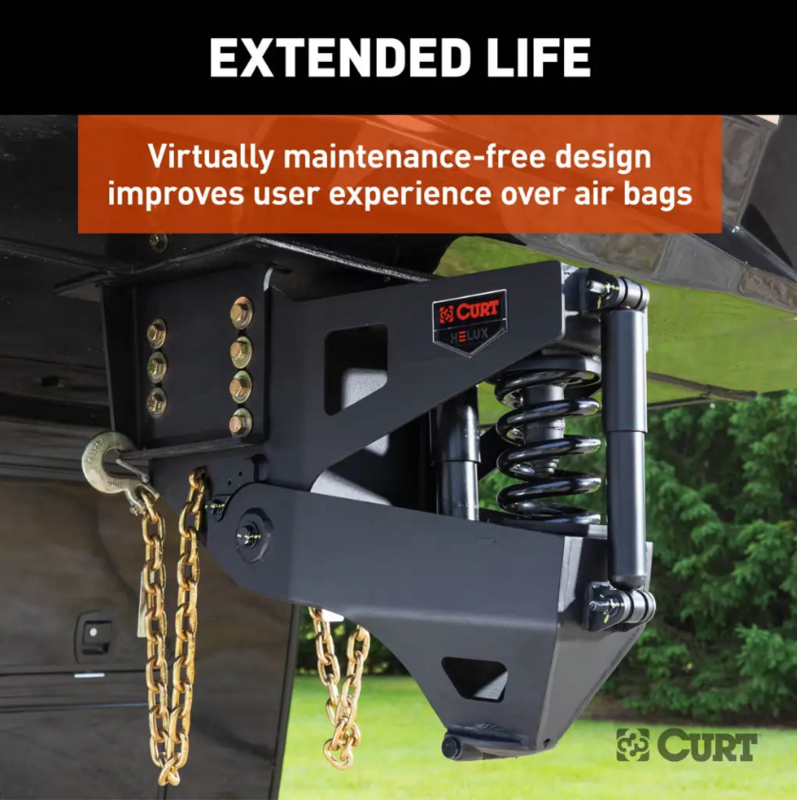

  • Virtually maintenance-free — no airbags, grease points, or break-in needed

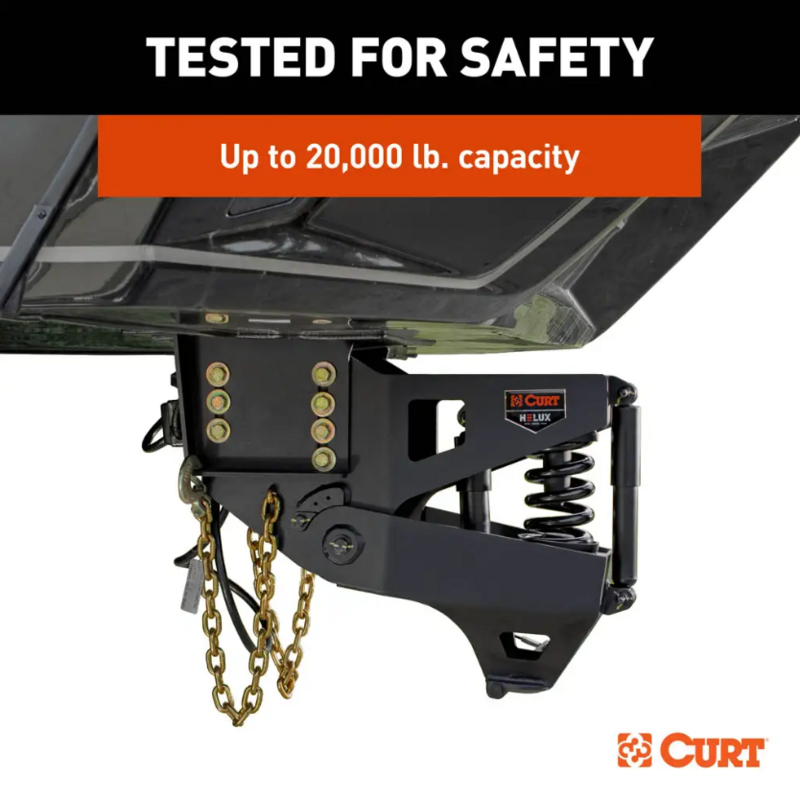

  • Tested for safety under SAE J2638 standards

  • Includes safety chains, cable-release kit, and mounting hardware

  • Made in the USA with global materials

  • Limited lifetime warranty (structure) + 1-year parts/finish

Specifications:


  • Part Number 2024044576

  • UPC 612314057931

  • Gross Trailer Weight (GTW) 20,000 lbs

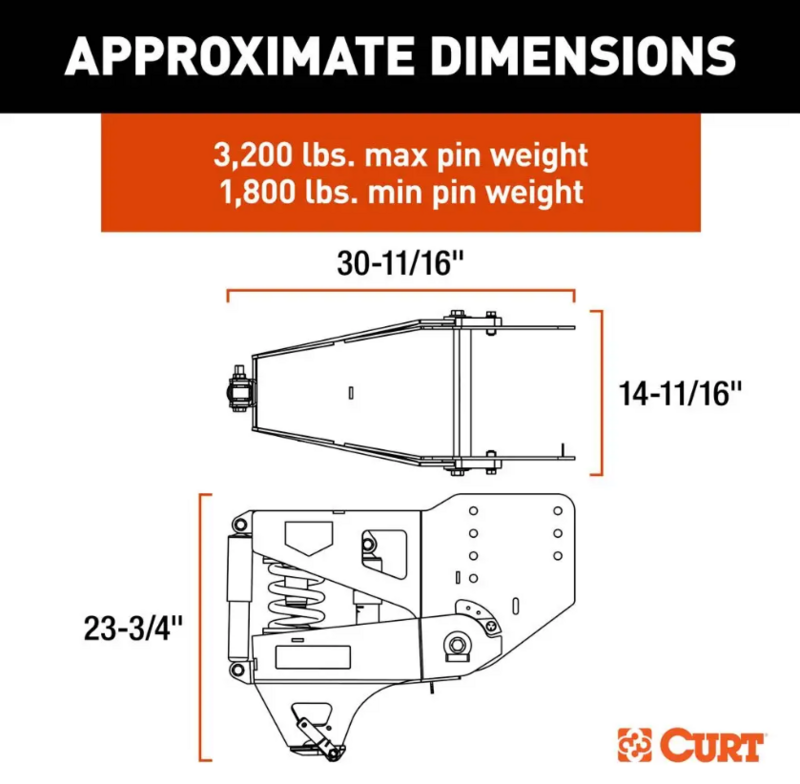

  • Pin Weight Range 1,800 – 3,200 lbs

  • Material Carbon Steel

  • Finish Black Powder Coat

  • Coupler Type Auto-latching, standard 2-5/16″ gooseneck ball

  • Mount Type Bolt-on / Rhino Box compatible

  • Shipping Weight 200 lbs

  • Testing Standard SAE J2638 Compliant

  • Country of Origin Made in USA with Global Materials

  • Warranty Limited Lifetime (structure), 1-Year (parts & finish)

  • Compatibility Lippert Frames (approved), Not for Rockerball gooseneck balls




$1,835.95
Only 2 left in stock - order soon
