Curt SecureLatch Lunette Ring & Channel, 40,000lb, 3" ID, 11-3/4" Channel Height • 48641
The CURT SecureLatch adjustable lunette ring and channel set offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers maximum height adjustment, featuring an offset base. This allows the ring to be flipped within the channel for more drop or rise as needed. The CURT SecureLatch lunette ring comes with an 11-3/4-inch tall x 2-3/4-inch inside width channel. It has a 3-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 40,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a dark grey teridium finish for a premium look and resistance to the elements.

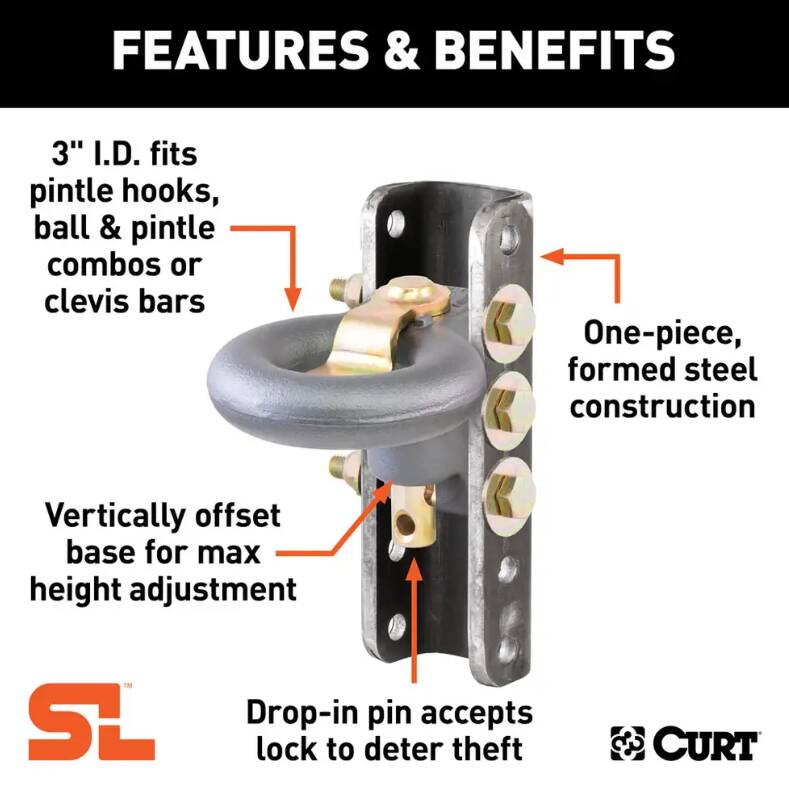

- Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
- Flexible height adjustment for more drop or rise as needed

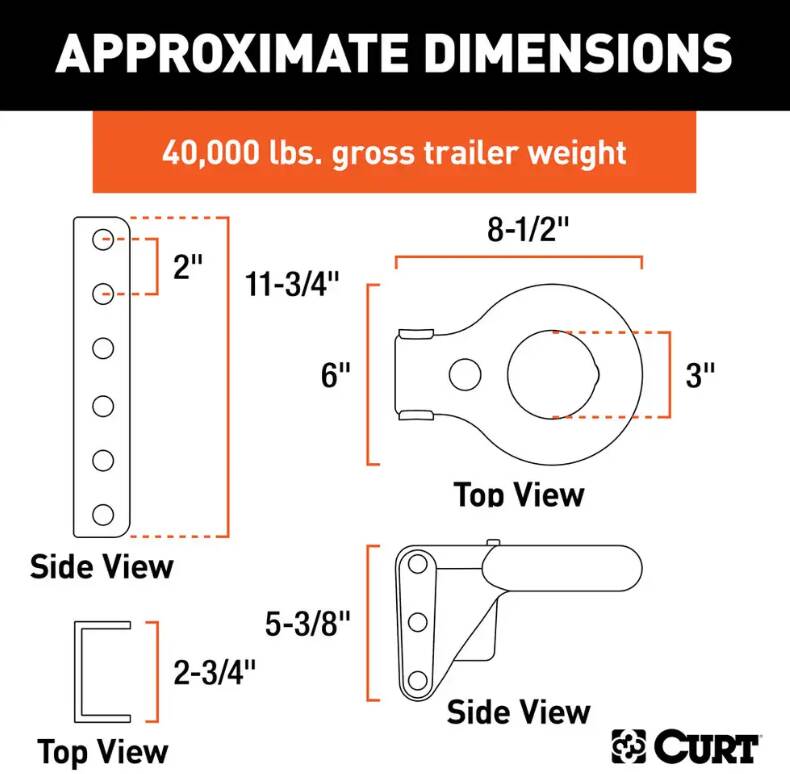

- Heavy-duty 3-hole bolt pattern with 11-3/4" x 2-3/4" channel
- Rated for 40,000 lbs. gross trailer weight

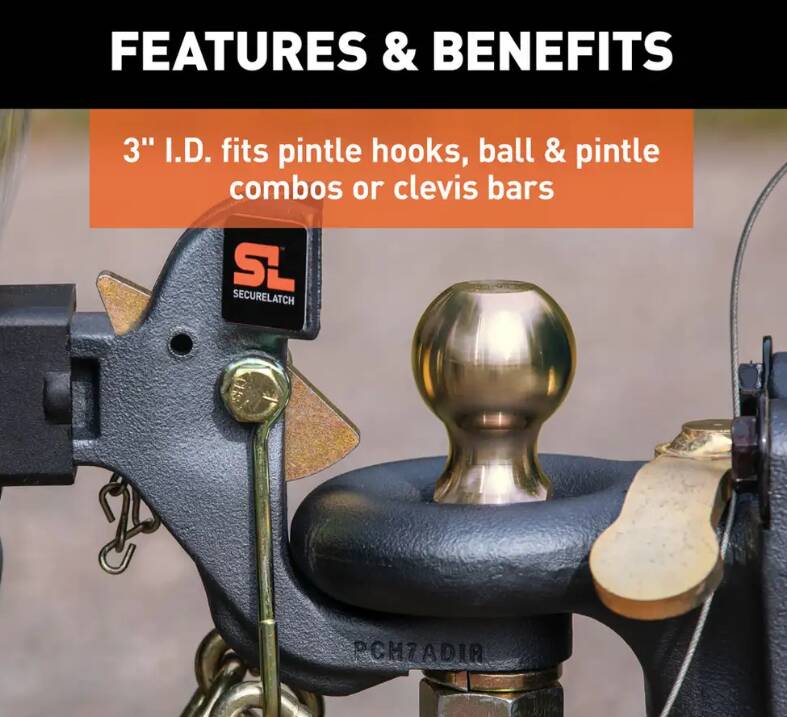

- 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
- Cast iron construction is austempered for superior strength and wear resistance

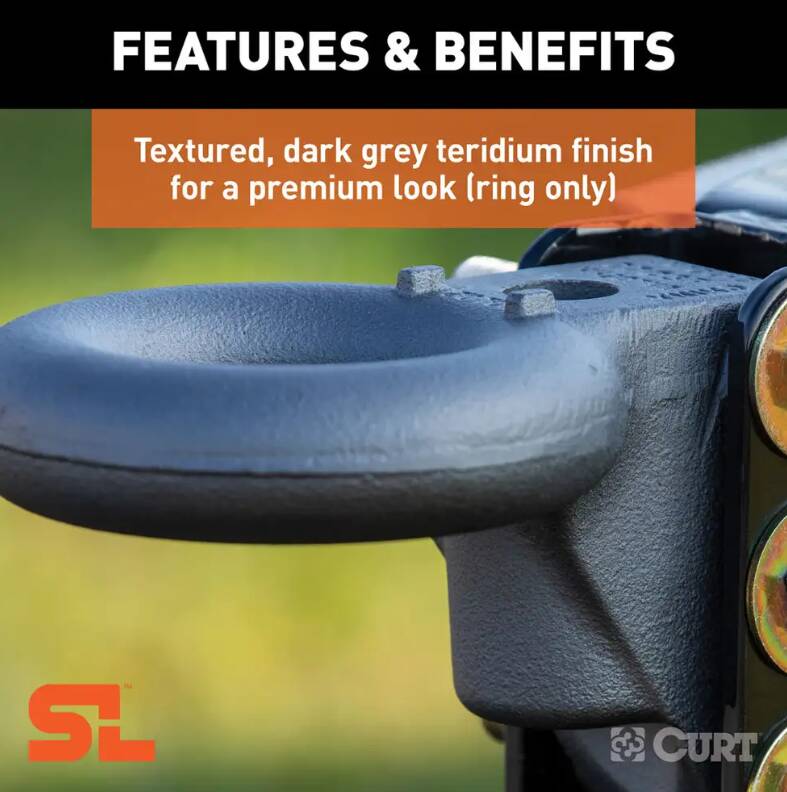

- Textured, dark grey teridium powder coat for a premium finish
- Bright gold zinc-plated pin for long-lasting corrosion resistance
- Limited lifetime warranty (one-year finish, one-year parts)
- Includes lunette ring #48626, channel #48651 and hardware
- Lunette ring fits 2-3/4" I.D. channel only
