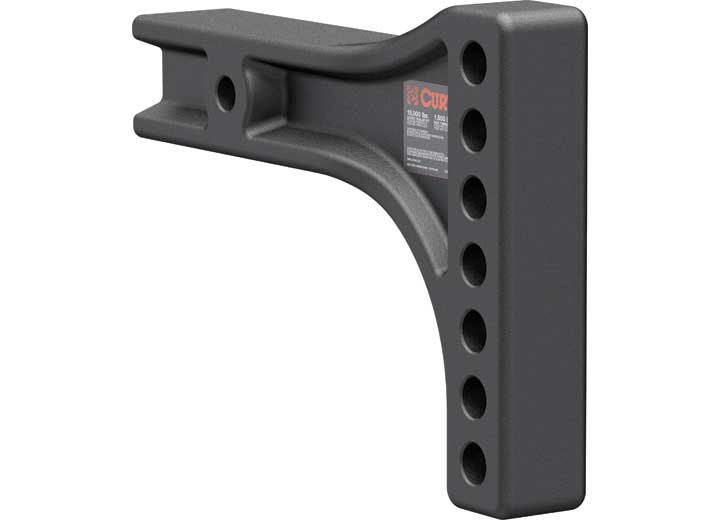

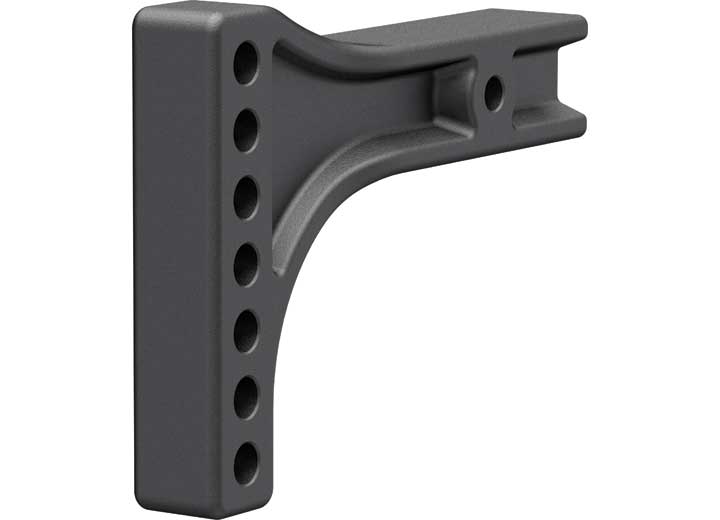

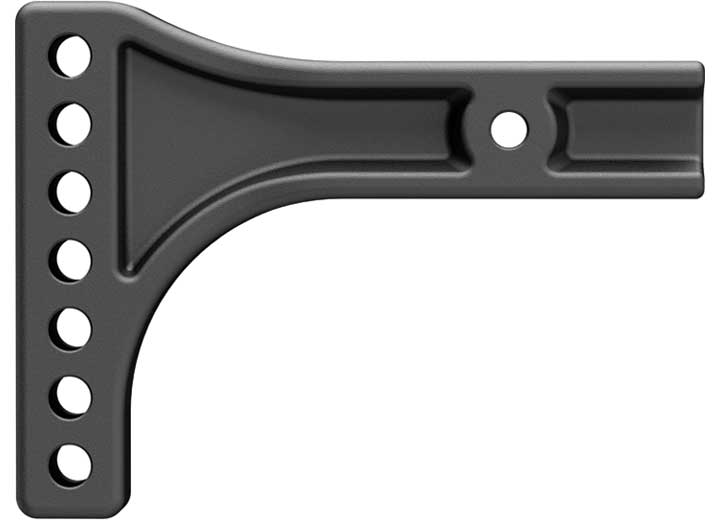

Curt Weight Distribution Shank, 2-1/2" Shank, 2" Drop, 6" Rise • 17131
This CURT replacement weight distribution shank is compatible with all CURT weight distribution hitches. It can be used to replace a damaged shank or to give your WD hitch greater flexibility in vertical adjustment. It features a standard 2-1/2" shank, multiple mounting options and a high-strength construction that is fully tested for tough jobs and harsh conditions. The 2-1/2" horizontal shank is designed to fit any 2-1/2" x 2-1/2" trailer hitch receiver. This makes it the perfect choice for a CURT Commercial Duty class 5 hitch or other heavy-duty hitches with 2-1/2" receivers. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8" diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver. This particular weight distribution shank is 9-1/2" high by 12-1/2" long, measured from the outermost holes center-to-center. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 9-1/2", this WD shank provides a maximum rise of 6". The entire shank can also be flipped in the receiver tube to provide a maximum drop of 2".
- Provides an adjustable mount for any CURT weight distribution hitch
- Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
- Features multiple holes for adjustable head height
- Can be flipped to provide necessary drop or rise
- 3/4" diameter holes are spaced 1-1/4" from center to center
- Fits 2-1/2" x 2-1/2" hitch receiver tube opening with 5/8" hitch pin hole
- Constructed from solid steel for reliable strength
- Protected by a highly durable carbide black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Includes shank only (weight distribution hitch sold separately)
