Curt Weight Distribution Shank (2" Shank, 2" Drop, 6" Rise) • 17103

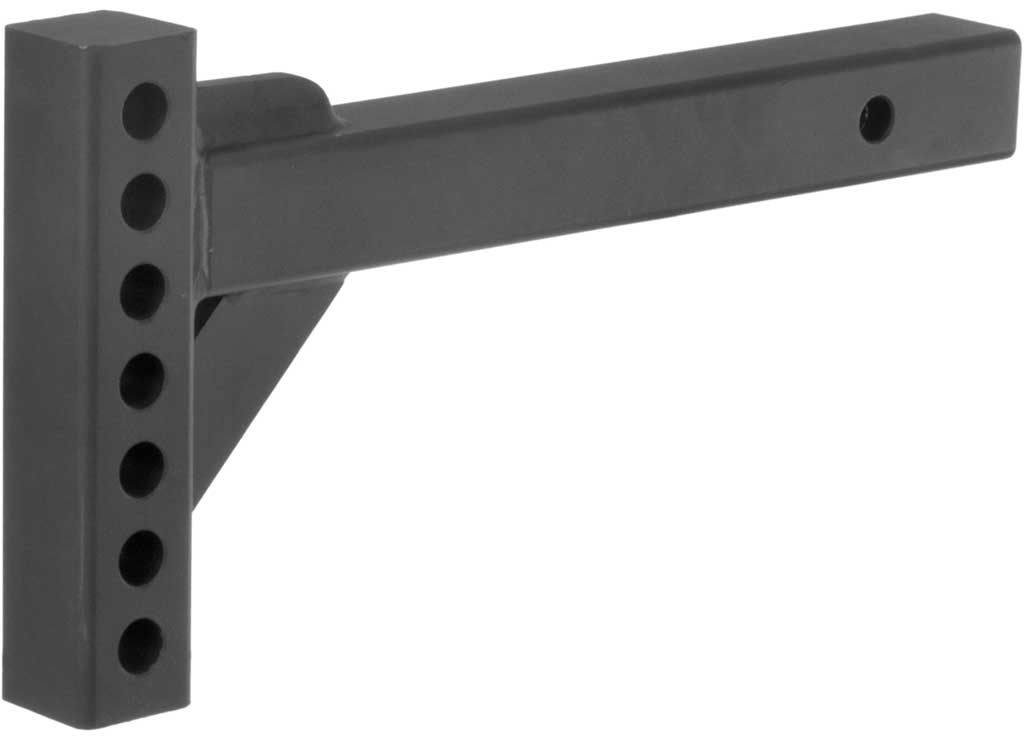

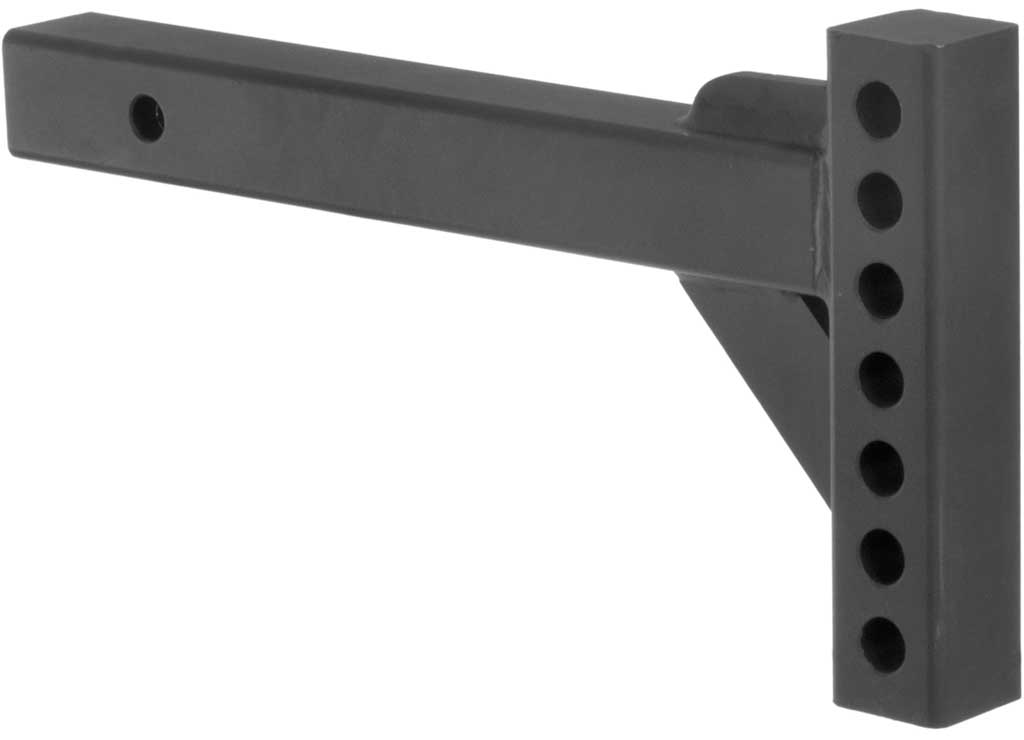

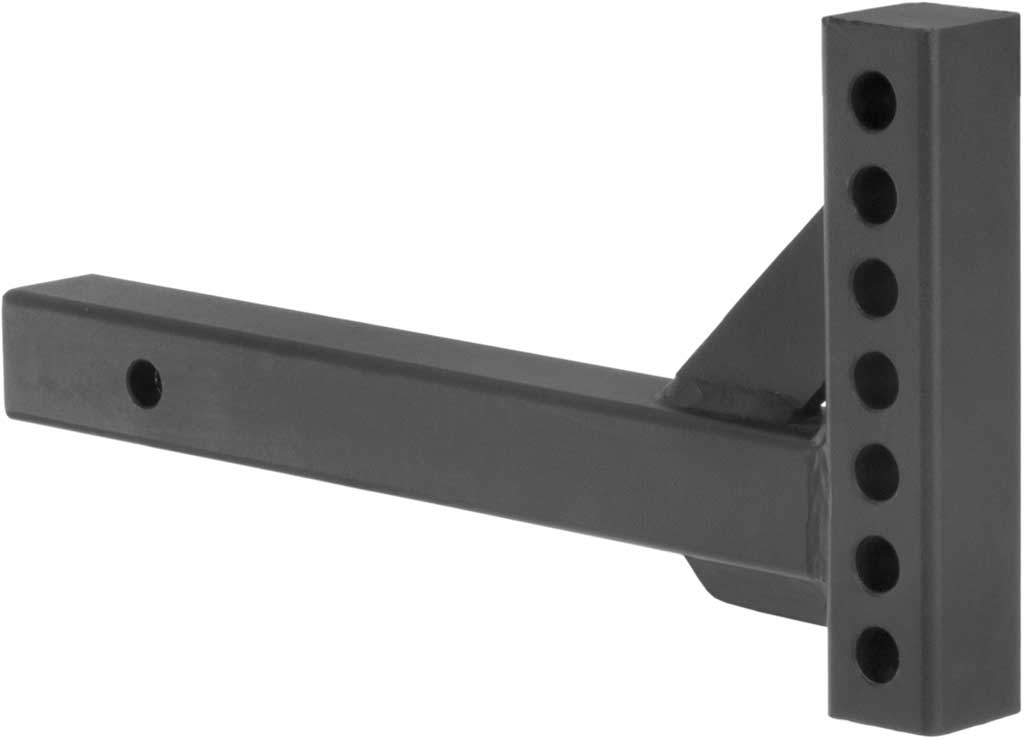

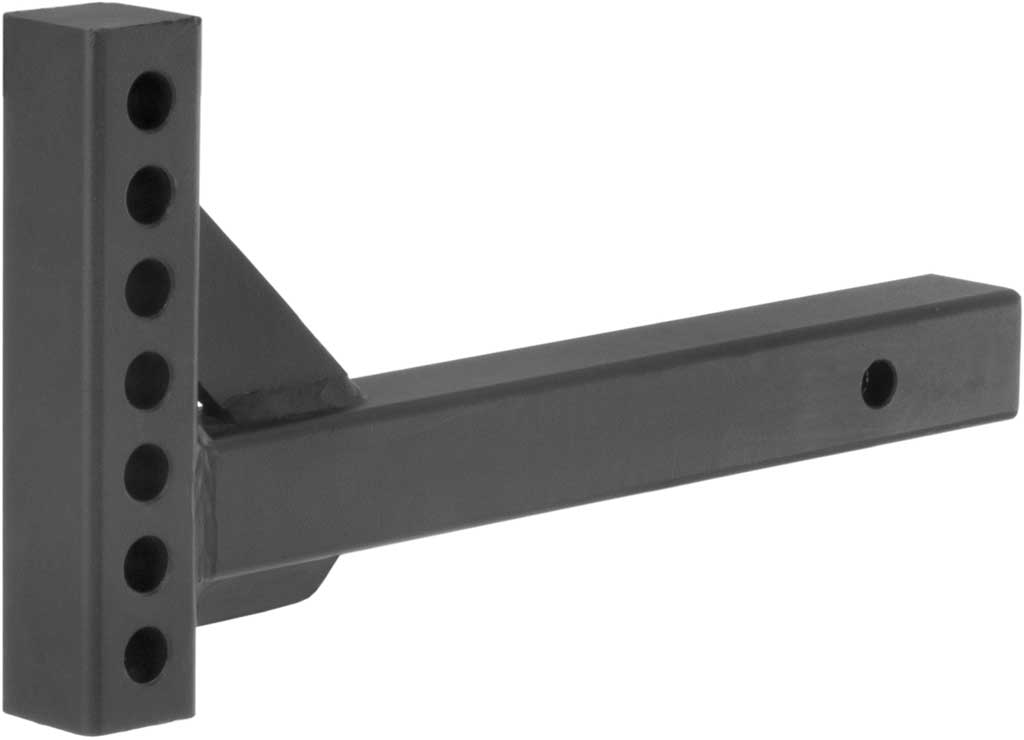

This particular weight distribution shank is 9-1/2" high by 18" long overall. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 9-1/2", this WD shank provides a maximum rise of 6". The entire shank can also be flipped in the receiver tube to provide a maximum drop of 2".

---

• Provides an adjustable mount for any CURT weight distribution hitch
• Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
• Features multiple holes for adjustable head height
• Can be flipped to provide necessary drop or rise
• 3/4" diameter holes are spaced 1-1/4" from center to center
• Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole
• Constructed from solid steel for reliable strength
• Protected by a durable powder coat finish
• Includes shank only (weight distribution hitch sold separately)

• Limited lifetime warranty (one-year finish, one-year parts)
