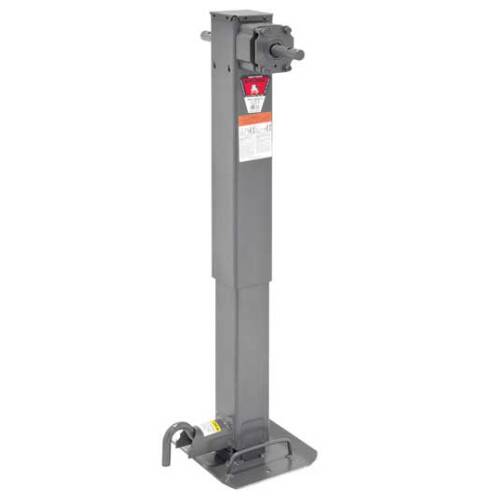

Draw-Tite 2-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Side Wind, 12-1/2 in. Travel • 183416

The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind. BULLDOG's 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting 27 turns per 1" (planetary) and 29 turns per 1" (traditional) of travel. In high gear, the cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.

• State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads
• Designed for today's standard agricultural, construction and industrial trailer applications.
• User friendly design makes operation smooth and easy
• Engineered alloys for enhaced strength, stability and sideload capability
• Planetary gearbox fits within the width profile of the jack's outer tube, eliminating the need for spacers
• Part number: 183416
• Warranty: limited 5 year warranty
• Weight: 73 lbs
• Capacity: 12,000 lbs.
• Travel: 12.5 in.
• Retracted: 29.5 in.
• Extended: 55.6 in.
• Handle style: Planetary
