Echomaster TerrainView Universal Underbody 4-Camera Kit with DVR • EMUBCAMKIT
Get an amazing view of the terrain around your Jeep. Rock Crawler, or Overlander, and capture it on DVR with TerrainView from Echomaster! Add 4 cameras to any vehicle with a single video input. View 1, 2, 3 or all 4 cameras at once on your existing display.

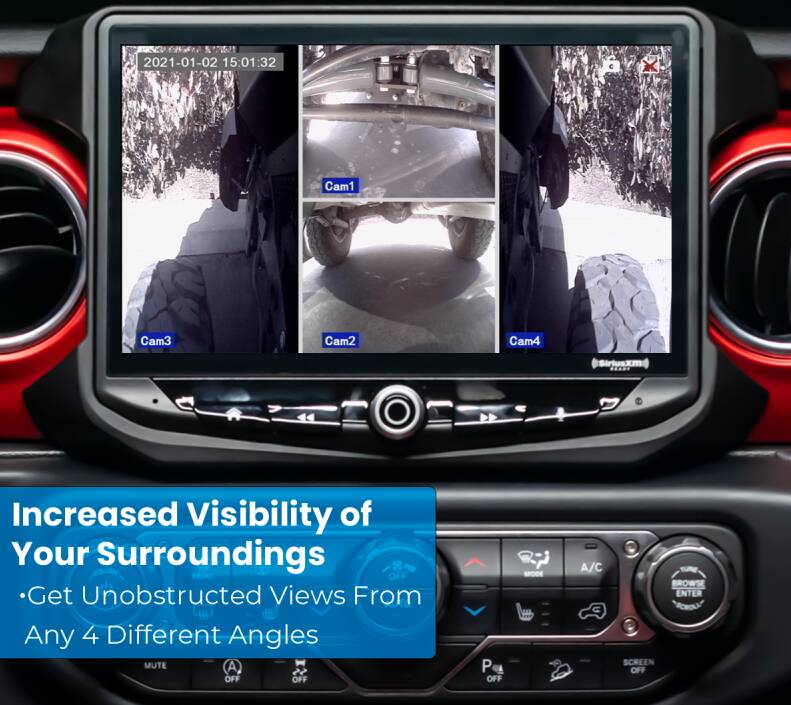

Increased Visibility: Get an unobstructed view of what’s around and under your vehicle from 4 different angles

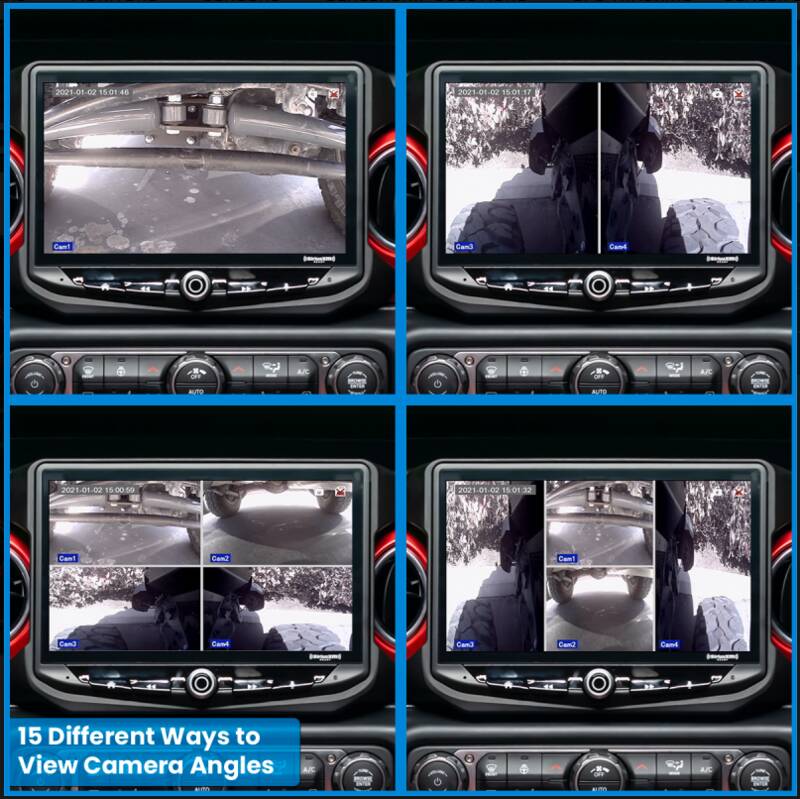

15 Viewing Options: Access any specific camera. Or see a split-screen view of multiple cameras simultaneously
Built-In DVR: Automatically capture your adventures from all 4 cameras on a micro sd card (not included)
Durable: Trail-ready IP67-rated camera is ready to withstand the harsh elements
Wired remote control button Toggle through all 15 available view combinations by clicking the button

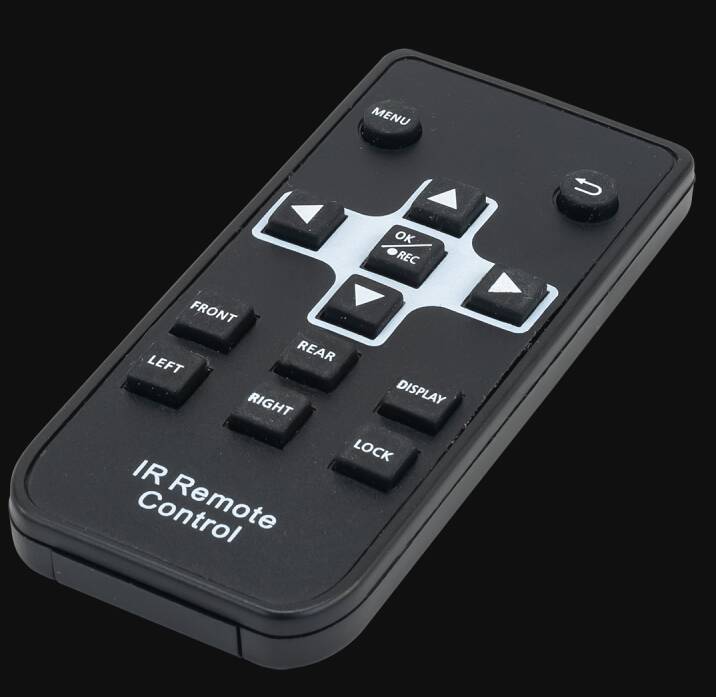

Wireless remote control Wireless IR remote provides access to a specific camera or cameras
Direct camera access 12-volt trigger wires are provided for each of the 4 cameras. Wire these to your existing switches, or add any switches, and directly access any camera at any time
Turn-signal activation Connect the direct access trigger wires to your turn signals to activate a side-view camera when using your turn signal
3 Year Camera Warranty
TECHNICAL SPECS
Video output options:
CVBS output at 648 x 488
AHD output at 1280 x 720
Camera viewing angle 170 degrees
Sensor type 1/4” CMOS
All cameras equipped with infrared LEDs for low light situations
Water/debris resistance rating IP67
Mirror option (selectable using DIP switch)
v1.0 Supports up to 128GB Micro SD Card (not included)
v2.0 128GB USB thumb drive
3-Year warranty on cameras, 1-year on video multiplexer
4x IP67-Rated cameras
1 AVS21 video switcher
1 Video multiplexer with built-in DVR
4 Camera connection harnesses
4 Camera extension cables
Wireless remote control
Wired remote control
Zip ties
Manual
Warranty card
