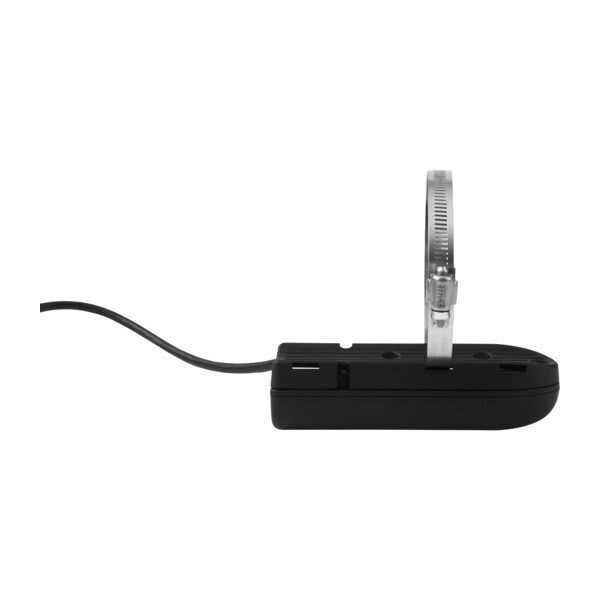

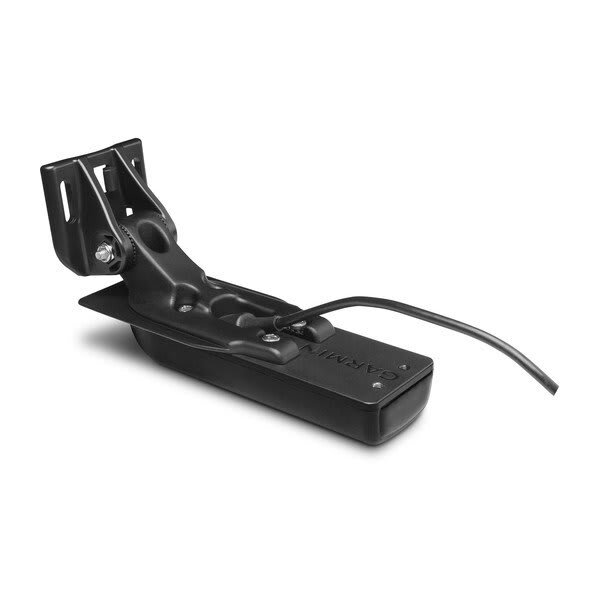

Garmin 12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable • 010-12405-00

Garmin 12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable  • 010-12405-00
Garmin 12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable  • 010-12405-00
Garmin 12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable  • 010-12405-00
Garmin 12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable  • 010-12405-00
Garmin
Product Details

12-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable (010-12405-00) by Garmin®. Measures: Depth/Temperature. Frequency: 150-240/425-485/790-850kHz. Max Power: 350W. Accommodates Deadrise: 0° - 70°. GT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat. The 12-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü and CHIRP SideVü (455/800 kHz) elements have a power rating of 350 W each (1,050 W total). GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.


  • Frequency (kHz): CHIRP High Wide (150-240kHz), 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) DownVü/SideVü
  • Power (W): Traditional 250, Down/Side 350
  • Beam Width (Deg.) LF/HF (-3dB): Traditional 24/16, Down/Side<2.0x50@455, 1.0x30@800
  • Max. Depth (ft.): Traditional 800, Down/Side 500
  • Depth/Speed/Temp: D/T
  • # of Pins: 12
  • Cable Length (ft.): 20
  • Supported Deadrise/Transom Angles: 0-70 Deg. Transom
  • Limited 2 Year Warranty

Included:

  • Transducer
  • 20' Cable

$282.99
in stock
