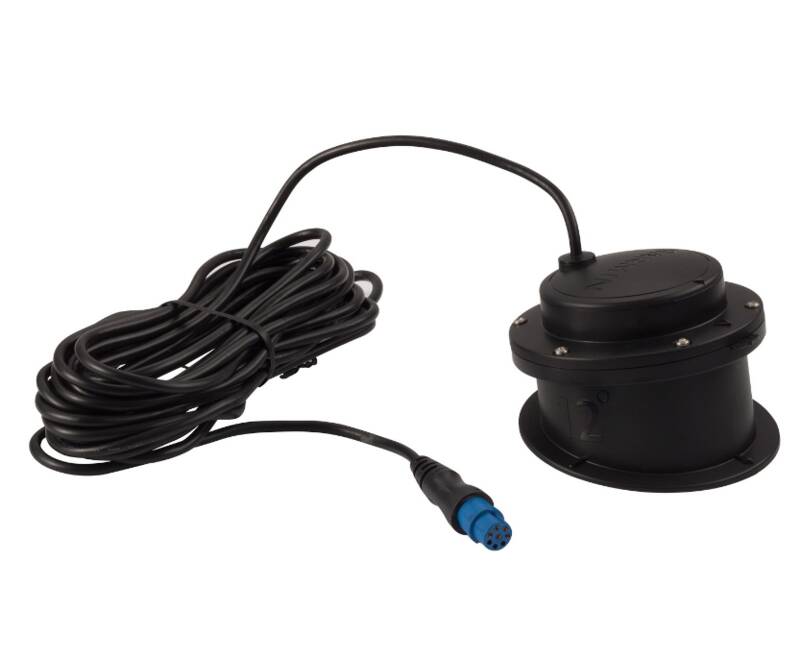

Garmin 8-Pin Plastic In-hull Mount Transducer with 20' Cable • 010-12402-00
8-Pin Plastic In-hull Mount Transducer with 20' Cable (010-12402-00) by Garmin®. Measures: Depth. Frequency: 85-165kHz. Max Power: 600W. Accommodates Deadrise: 0° - 25°. GT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings. The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and anadapter cableso you can maintain depth at high speeds and scanning capabilities at trolling speeds. For installation, follow the included instructions carefully to avoid damaging your boat.
- Frequency (kHz): CHIRP Mid-band (85-165 kHz)
- Power (W): 600
- Beam Width (Deg.) LF/HF (-3dB): 24-13
- Max. Depth (ft.): Traditional: 1900 freshwater
- Depth/Speed/Temp: D
- # of Pins: 8
- Cable Length (ft.): 20
- Supported Deadrise/Transom Angles: 0-25 Deg. Deadrise
Limited 2 Year Warranty
Includes:
- GT15M-IH transducer
- 20' Cable
- 4 plastic tanks
- Mounting hardware
- Documentation
