Garmin 8-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable • 010-12403-00

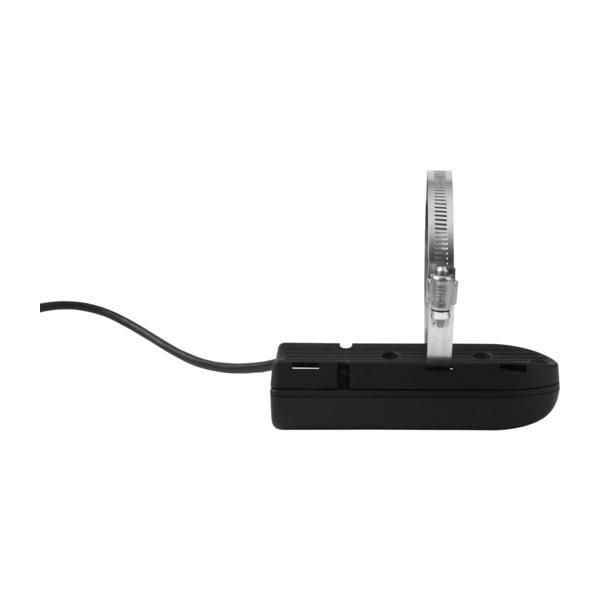

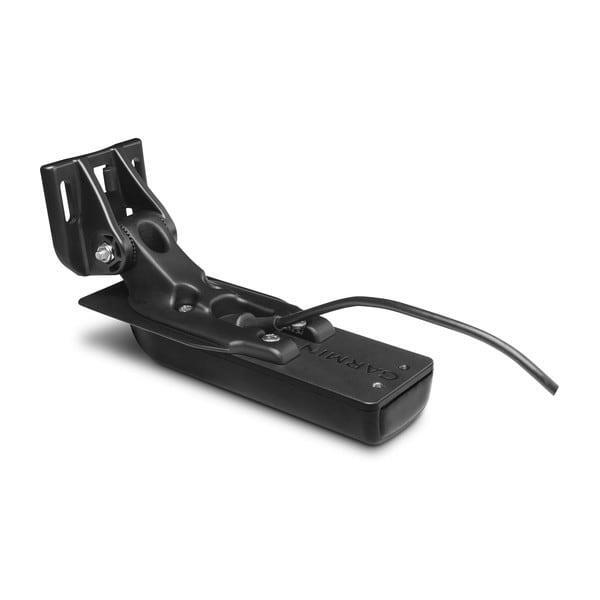

8-Pin Plastic Transom/Trolling Motor Mount Transducer with 20' Cable (010-12403-00) by Garmin®. Measures: Depth/Temperature. Frequency: 150-240/455/800kHz. Max Power: 350W. Accommodates Deadrise: 0° - 70°. GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat. The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü (455/800 kHz) element has a power rating of 350 W. GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

• Frequency (kHz): CHIRP High Wide (150-240kHz), 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) DownVü
• Power (W): Traditional 250, Down 350
• Beam Width (Deg.) LF/HF (-3dB): Traditional 24/16, Down<2.0x50@455, 1.0x30@800
• Max. Depth (ft.): Traditional 800, Down 500
• Depth/Speed/Temp: D/T
• # of Pins: 8
• Cable Length (ft.): 20
• Supported Deadrise/Transom Angles: 0-70 Deg. Transom

• Limited 2 Year Warranty

Includes:

• Transducer
• 20' Cable
