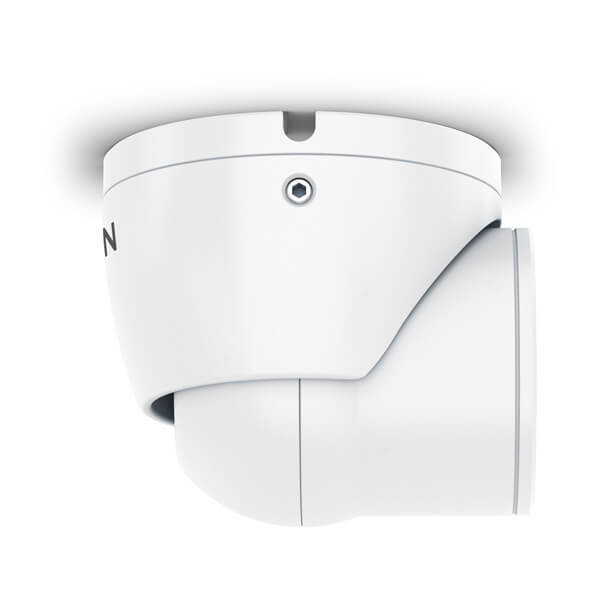

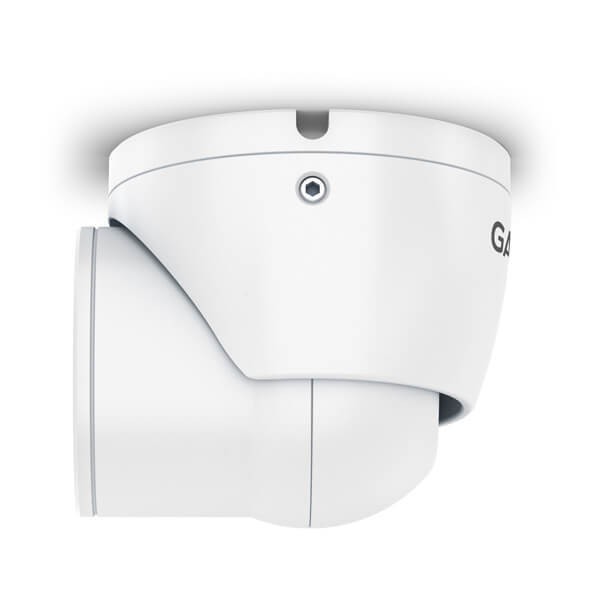

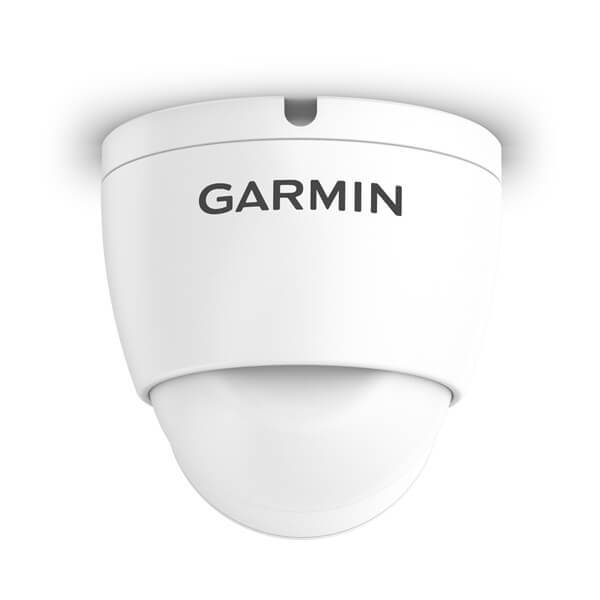

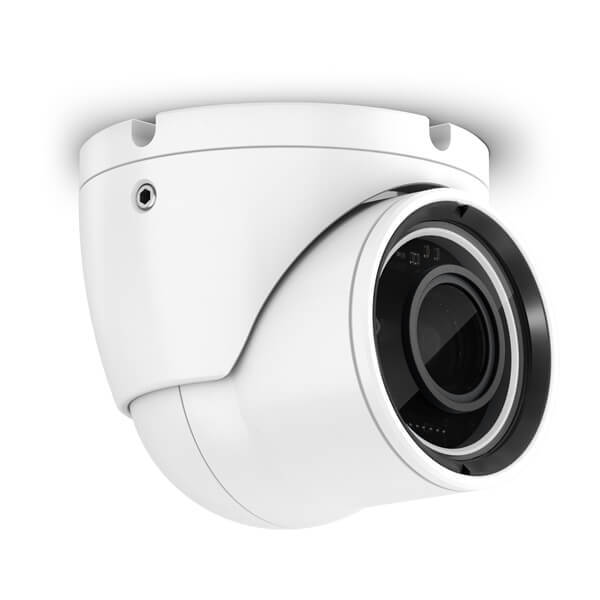

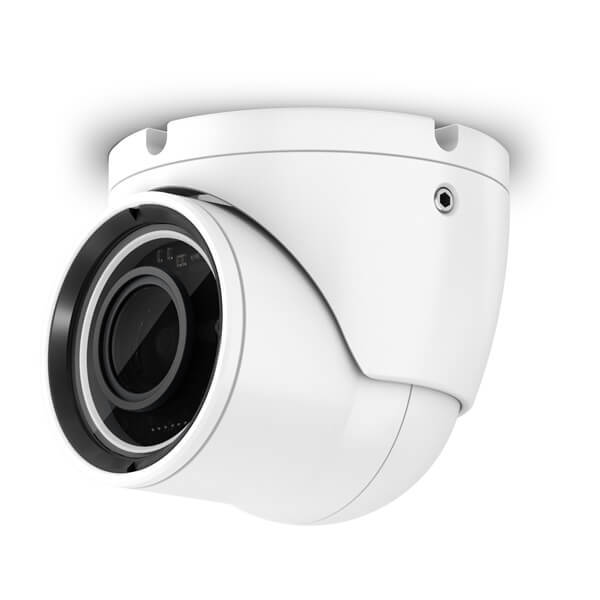

Garmin GC14 Marine Camera • 010-02667-00

This small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. Use it in multiple areas above or below decks, and view on one chartplotter or across multiple networked compatible chartplotters. GC 14 features a convenient reverse-image setting to help you back out of tight locations such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement.

---

• Provides An Extra Set Of Eyes Aboard Your Vessel To Monitor Areas Above Or Below Decks
• Analog Camera Delivers Excellent Quality Images, Even In Low Light; Perfect For Engine Rooms
• Provides Visibility In Low Light Up To 15 Meters, An Improvement Over Previous Generation Analog Cameras
• Reverse-Image Setting On Compatible Chartplotters Helps When Backing Out Of Tight Locations Such As A Crowded Marina
• Rotate Images On Compatible Chartplotters 90, 180, 270 Degrees So You Can Mount In Any Orientation
• Water Rating: IPX7
• Limited 2 Year Warranty

---

• Dimensions (W x D x H): 6.1″ x 13.1″ x 3.0″ (155.5 x 333.6 x 76.2 mm)
• Weight: 28.6 oz (810 g)
• Cable length: 19 ft 8 in (6 m)
• Temperature range: 5° to 158° F (-15° to 70° C)
• Case material: Glue sealed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 0″ (0 mm)
• Power source input: 9-16 Vdc, unregulated
• Input current: 180 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 6 (300 mA max)
• Position accuracy, typical marine use: < 1 metre, CEP, < 3 metres, 95%
• Heading accuracy: 2° RMS
• Heave accuracy: 8 cm RMS
