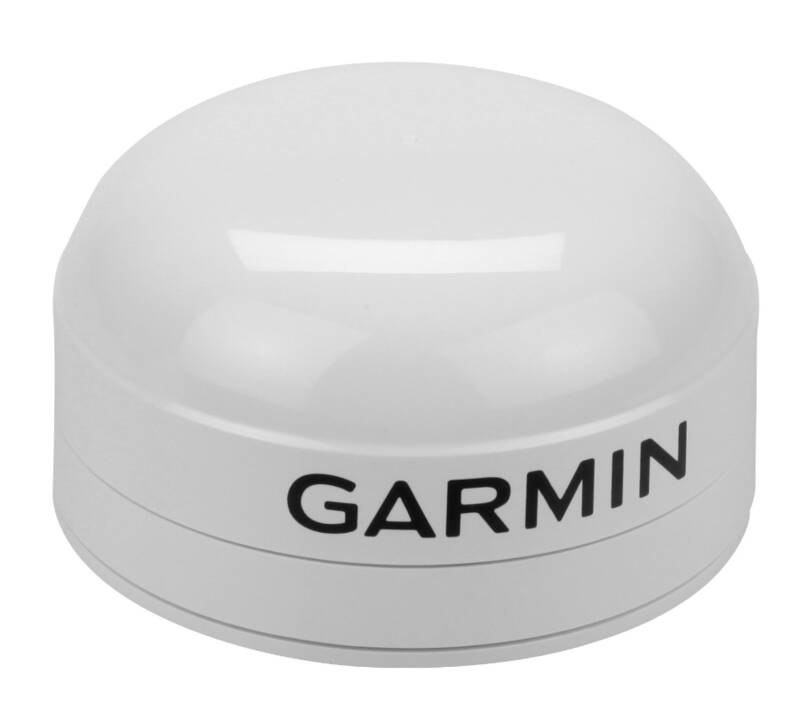

Garmin GPS 24xd White GPS Antenna with 19'8" Cable and Surface/Pole Mount • 010-02316-00

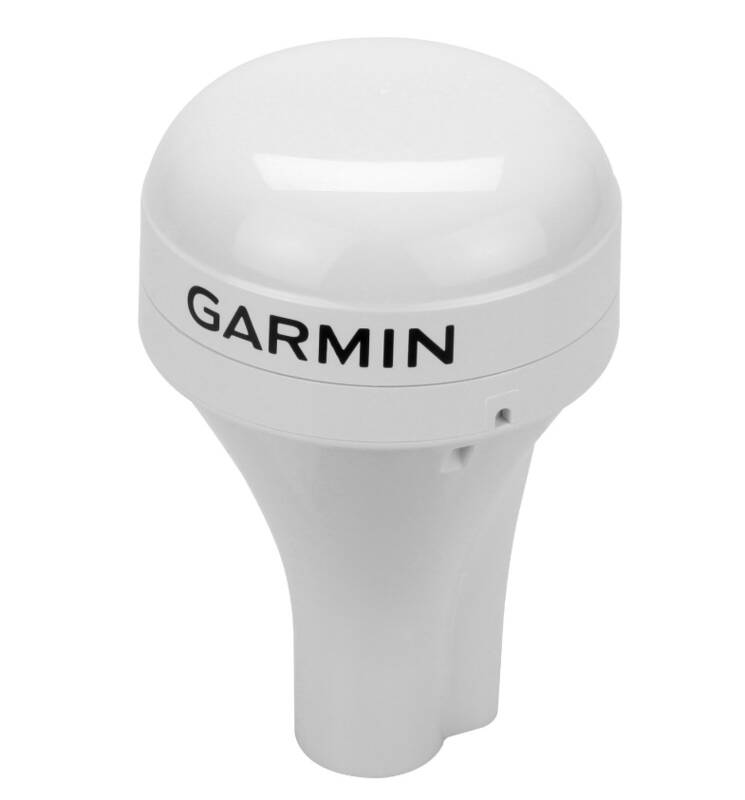

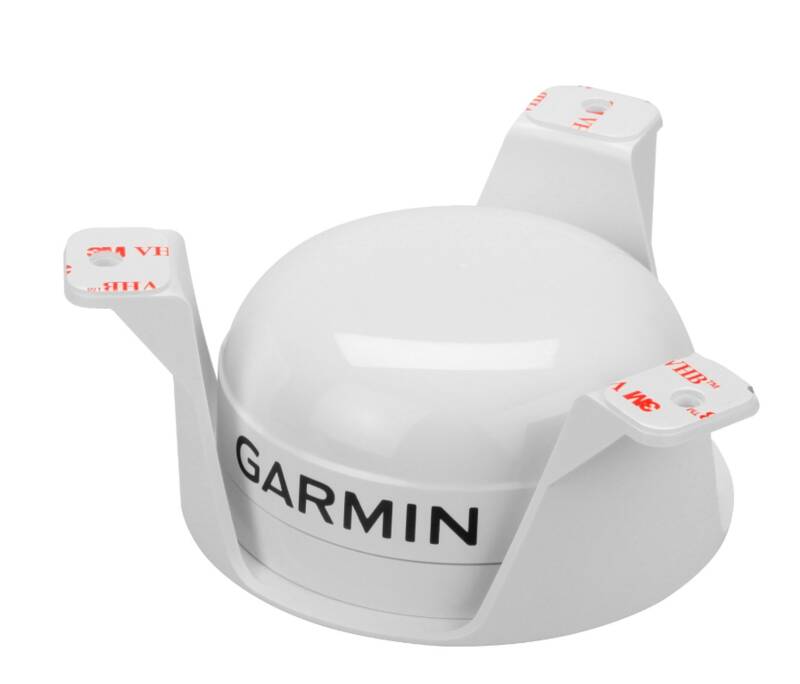

The GPS 24xd HVS position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds. Navigate in more locations with expanded GNSS support. Get high-sensitivity tracking with fast GPS update rate. Accurately pinpoint your heading — regardless of speed. It’s water-resistant (IPX7) to withstand the elements. Install it easily with multiple mounting options. Installation is easy with under-deck, pole and surface-mount options.

---

• Multi-Band GNSS Provides Precise Location Accuracy1 to Within 1 Meter To Compatible Marine Multifunction Displays, Instrument Displays And Autopilots
• Magnetic Heading Sensor Provides Accuracy To Within 3 Degrees, Stabilizing Charts, Radar Overlay And MARPA Even At Slow Speeds
• Fast 10 Hertz Position Update Rates Provide High-Sensitivity Position, Velocity And Time Data
• GPS 24xd Provides Access To Four Key Global Navigation Satellite Systems To More Accurately Track In Challenging Conditions Than GPS Alone
• Multi-SBAS Compatibility Corrects Signal Measurement Errors And Provides Information About The Accuracy, Integrity, Continuity And Availability Of Its Signals
• Water-Resistant IPX7 to Withstand The Elements
• Limited 1 Year Warranty

---

• Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g)
• Cable length: 19 ft 8" (6 m)
• Temperature range: -22° to 176° F (-30° to 80° C)
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 5.9" (150 mm)
• Power source input: 9-16 VDC, unregulated
• Input current: 150 mA at 12 VDC
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%
