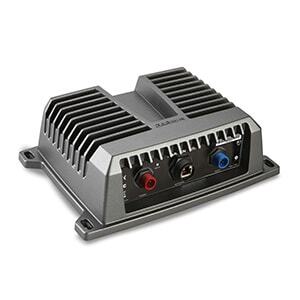

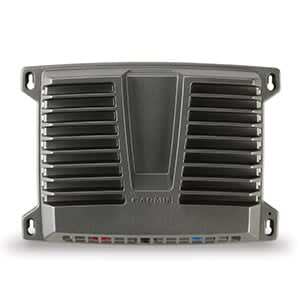

Garmin GSD 24 Advanced Sonar Module • 010-00957-00

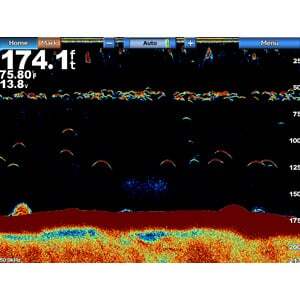

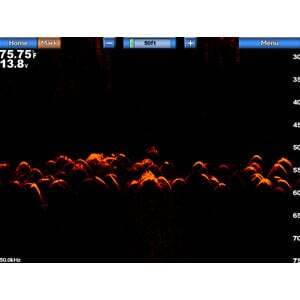

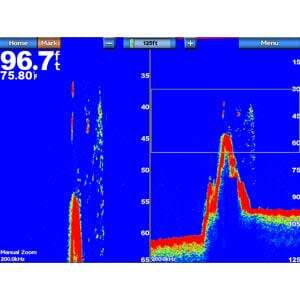

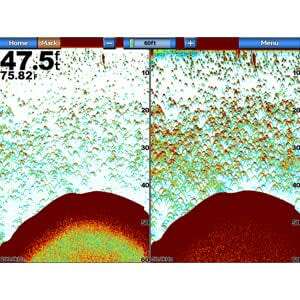

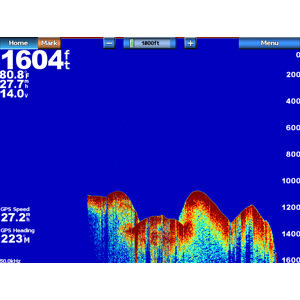

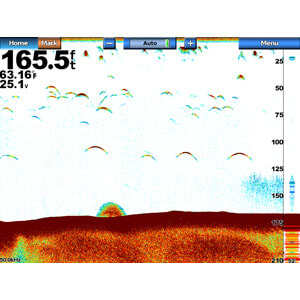

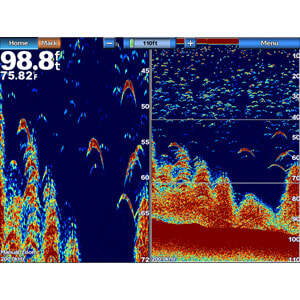

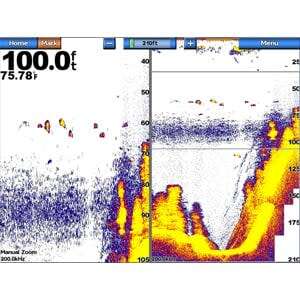

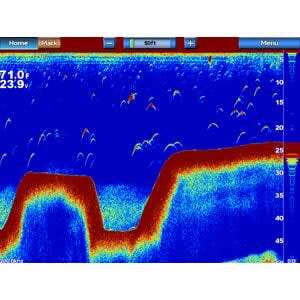

With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency capable and offers selectable transmit power for pin-point accuracy at depths of up to 5,000 Feet. So whether you’re out sport fishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you’ll see a clearer picture with enhanced separation of images and deeper bottom detection. Thanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.

---

• Features A Vastly Improved Digital Sonar Design For Superior Target Definition And Deep-Water Performance
• With Up To 2,000 Watts Of Transmit Power And A High-Dynamic Range Receiver, The GSD 24 Brings High-Definition Imaging To Your Compatible Garmin Chartplotter
• System Is Dual Frequency Capable And Offers Selectable Transmit Power For Pin-Point Accuracy At Depths Of Up To 5,000 Feet
• Easy Connectivity Of The Garmin Marine Network
• Water Rating: IPX7
• Limited 2 Year Warranty

---

Specifications:

• Case material: Fully gasketed, aluminum and steel housing

• Physical dimensions: 8" x 11.2" x 3.2" (204 mm x 284 mm x 81 mm)

• Weight: 5.27 lbs (2.39 kg)

• Water rating: IPX7

• Garmin Marine Network™ ports: 1

• Temperature range: From 5°F to 158°F (from -15°C to 70°C)

• Frequencies supported: 50/200 kHz

• Transmit power: 25-2,000 W rms

• ClearVü: No

• SideVü: No

• Maximum depth: 5,000' (1,524 m)

• Power input: 10-35 V

• Power usage: 40 W maximum

• Fuse: 7.5 A

• Compass-safe distance: 15.75" (40 cm)

---

• GSD 24 Module
• Power cable
• Marine network cable (6')
• Mounting hardware
• 8-pin Female to wire block adapter
• Documentation
