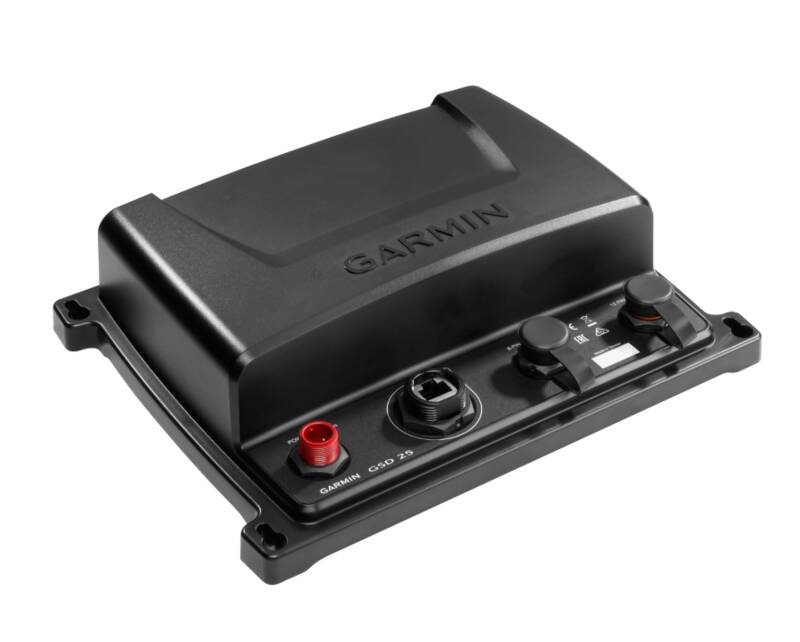

Garmin GSD 25 Premium CHIRP Sonar Module • 010-01159-00
Product Details
GSD 25 Premium CHIRP Sonar Module by Garmin. The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP ClearVü and Garmin CHIRP SideVü sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.
- Premium Remote Network Sonar Solution
- Provides Serious Sport Fishers Outstanding Fishfinding And Bottom Tracking Capabilities
- Helps Distinguish Between Small And Closely Spaced Fish At Key Fishing Depths
- Features True Dual-Channel 1 KW CHIRP, Plus CHIRP SideVü And ClearVü Scanning Sonar For The Clearest Images On The Water
- Depth Capability To 5,000 Feet
- Limited 2 Year Warranty
Specifications:
Physical dimensions: 9.9" x 7.6" x 2.6" (251 mm x 192 mm x 66 mm)
Weight: 1.7 lbs (0.77 kg)
Water rating: IPX7
Temperature range: From 5°F to 158°F (from -15°C to 70°C)
Case material: Polycarbonate
Compass-safe distance: 30 cm (11.8")
Garmin Marine Network™ ports: 1
Frequencies supported: Traditional: 50/200, 77/200, 83/200
Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/ClearVü: CHIRP 455/800 & CHIRP 260/455
(dependent on transducer)
Transmit power: 1 kW
ClearVü: Yes with CHIRP
SideVü: Yes with CHIRP
Maximum depth: 5,000' (1,524 m)
Traditional CHIRP capable: Yes
Power input: 10-35 V
Power usage: 27 W maximum
Fuse: 4.0 A
Includes:
- GSD 25Sonar Module
- Right-angle power cable (6 feet)
- Right-angle network cable (6 feet)
- Mounting hardware
- Documentation
$804.99
in stock
Quantity
