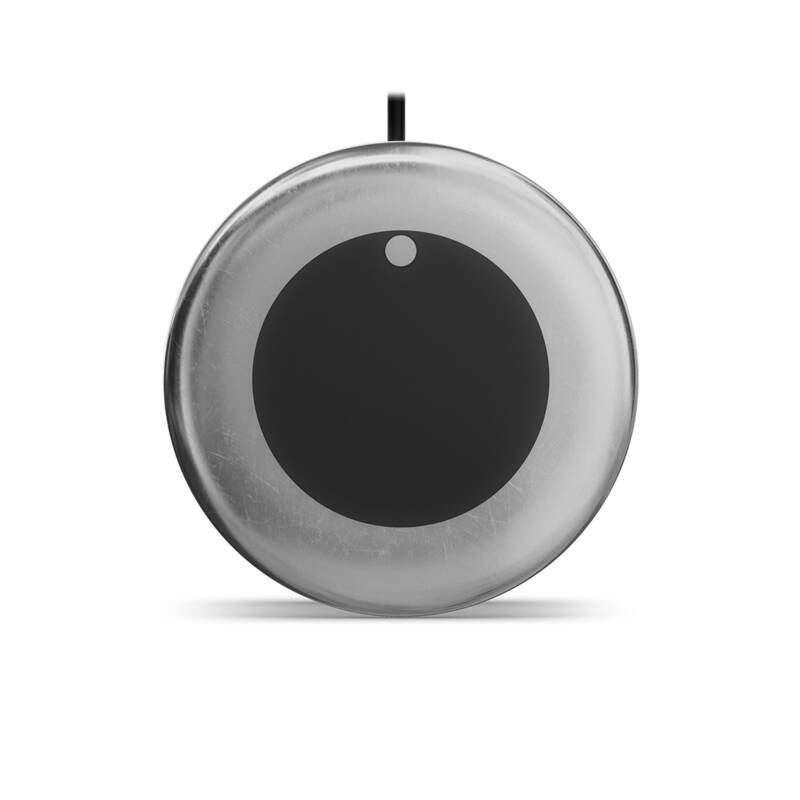

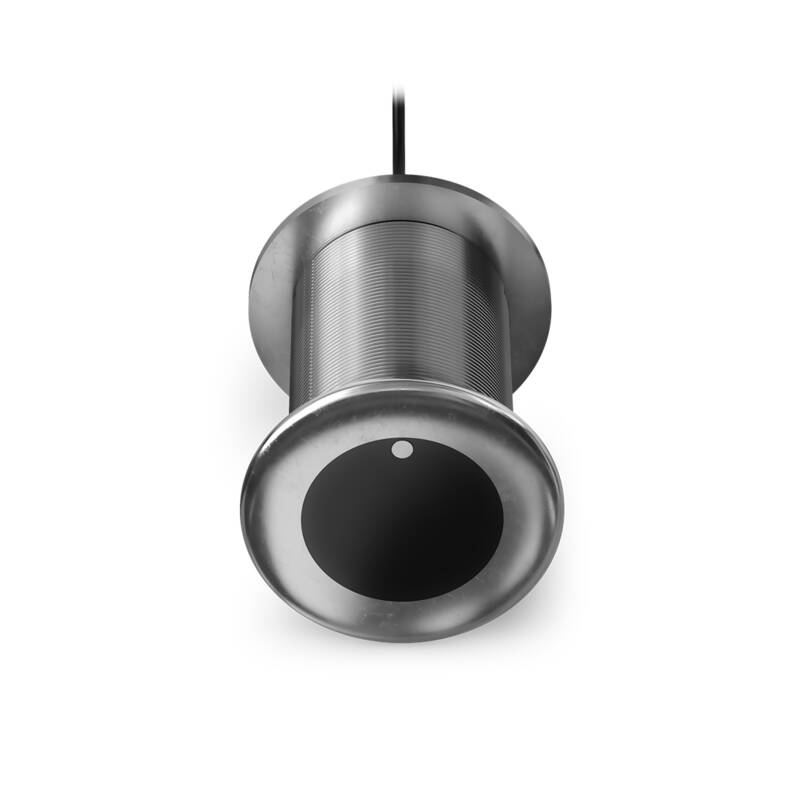

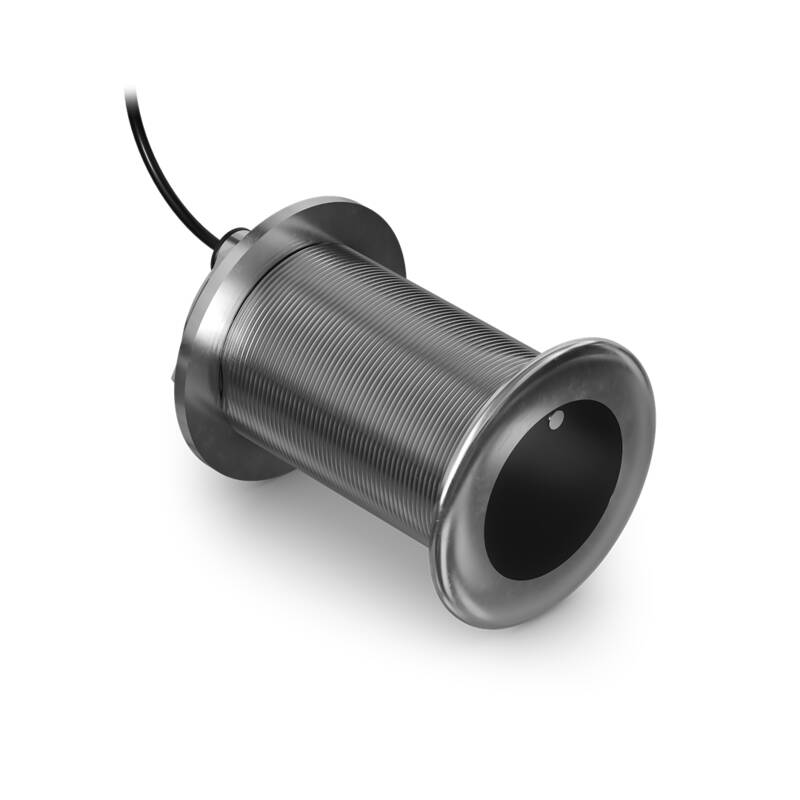

Garmin GT15M-THF Transducer, 0 Degree Tilt, 600 W, Stainless Steel, Thru-Hull Mount • 010-02868-00

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600 Watt midband CHIRP transducer clearly defines fish arches, structure and bottom depth returns on your display. Enjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used. Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum and wood, the transducer is available in a range of tilt versions to accommodate dead rise angles of 0–20 Degrees without a fairing block.

---

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 8 Pin
• Depth: 1200 Feet For Saltwater/ 1900 Feet For Freshwater
• Power Rating: 600 Watt
• Frequency Range: 85 To 165 kHz Medium Band CHIRP
• Supported Angle: 0 To 7 Degree Transom Angle
• Cable Length: 50 Feet
• See Maximum Depth Performance To 1,900 Feet In Freshwater
• Access CHIRP Sonar Frequency Range From 85 To 165 Kilohertz
• Search With Beam Widths Of 16 To 24 Degree
• Count On Fast-Response Water Temperature Sensing
• Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20 Degree Tilt
• This 8-Pin, 600 Watt Stainless Steel Thru-Hull Transducer Features High-Definition Midband CHIRP Sonar That Clearly Defines Fish Targets
• Use The Perfect Frequency For The Waters You’re Fishing
• Offering Excellent Sonar Sensitivity, Low Noise, High Resolution And Good Separation Of Targets
• Durable Stainless Steel Housing And Stem Offer Straightforward Thru-Hull Flush Mounting For Minimum Drag And Optimum Beam Orientation For Clear Sonar Returns
• Limited 1 Year Warranty
