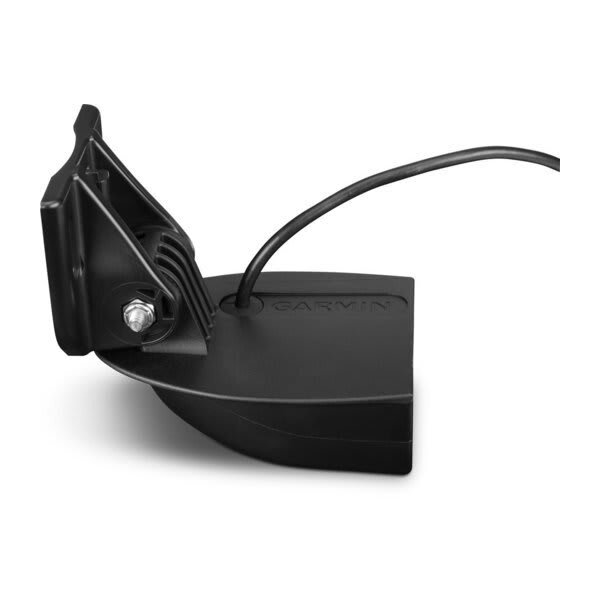

Garmin GT15M-TM Plastic Transom Mount Transducer w/o Cable • 010-12402-10

GT15M-TM Plastic Transom Mount Transducer without Cable (010-12402-10) by Garmin®. Measures: Depth/Temperature. Frequency: 85-165kHz. Max Power: 600W. Accommodates Deadrise: 0° - 70°. GT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet. The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom. Follow the included installation instructions carefully to avoid damaging your boat.

• Frequency: CHIRP Mid-band (85-165 kHz)
• Power: 600 W
• Beamwidth: 24-13
• Maximum depth: 1,900' freshwater
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 8-pin
• Supported Deadrise/Transom angles: 0°- 70° degree transom
• Weight: 1.00 lb (0.45 kg)

• Limited 2 Year Warranty

Includes:

• GT15M-TM transducer
• Transom mount
• Documentation
