Garmin GT30-THP Stainless Steel External Thru-hull Mount Transducers with Y-Cable, Pair • 010-01961-11

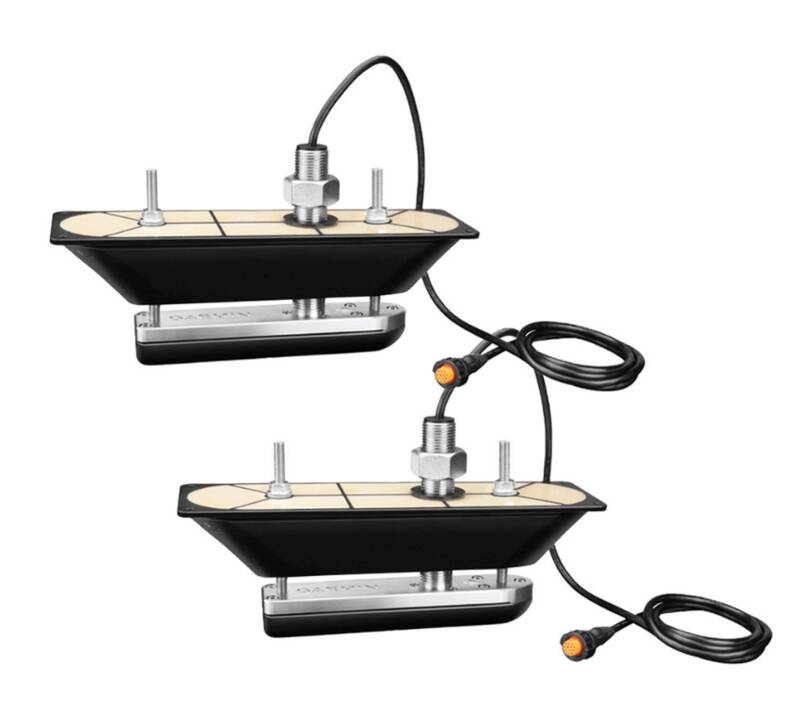

GT30-THP Stainless Steel External Thru-hull Mount Transducers with Y-Cable, Pair (010-01961-11) by Garmin®. Measures: Depth/Temperature. Frequency: 425-485/790-850kHz. Max Power: 500W. Accommodates Deadrise: 0° - 25°. Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat. These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750' (ClearVü) and 500' left and right (SideVü); an operating frequency of CHIRP 455/800 kHz (CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.) for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™10 scanning sonar module. Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

• Weight: 4.18 lbs. (1.90 kg)
• Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
• Power: ClearVü/SideVü 500 W
• Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
• Maximum depth: ClearVü: 750'; SideVü: 500'
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 5' + 30' y-extension cable
• Supported deadrise/Transom angles: Up to 25° deadrise

• Limited 2 Year Warranty

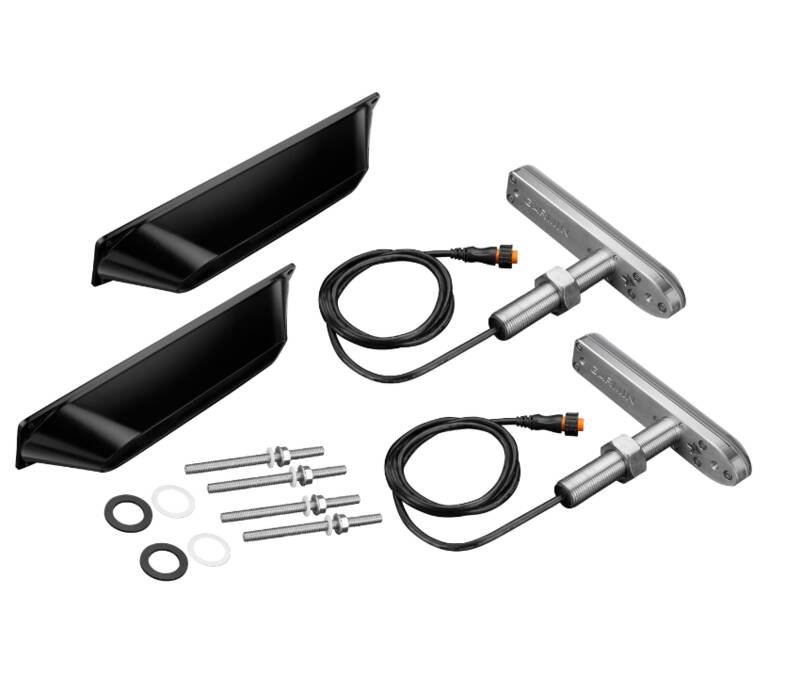

Includes:

• Transducers with stainless steel stems
• Fairing blocks
• Y-cable
• Bushings
• Mounting hardware
• Installation instructions
