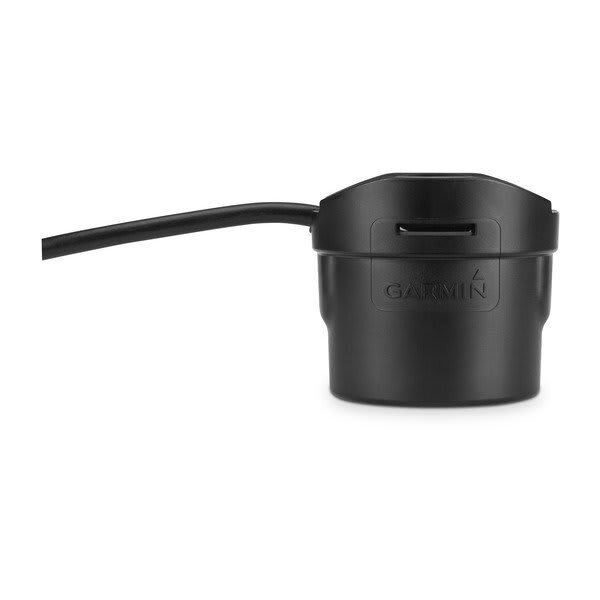

Garmin GT8HW-IH Plastic In-hull Mount Transducer with 20' Cable • 010-12401-10

GT8HW-IH Plastic In-hull Mount Transducer with 20' Cable (010-12401-10) by Garmin®. Measures: Depth. Frequency: 145-230kHz. Max Power: 250W. Accommodates Deadrise: 0° - 6°. GT8HW-IH transducer is ideal for bass boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It requires a flat section (<6°) in the hull to be mounted and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer features high-wide CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds. For installation, follow the included instructions carefully to avoid damaging your boat.

• Frequency: CHIRP High Wide (145-230 kHz)
• Power: 250 W
• Beamwidth: 24-16
• Maximum depth: 800' freshwater
• Depth/Speed/Temperature: Depth
• Number of pins: 8-pin
• Cable Length: 20'
• Supported Deadrise/Transom angles: 0°- 6° deadrise
• Weight: 0.63 lb (0.29 kg)
• Dimensions: 3.5 x 1.8 x 2.2 in (88 x 45 x 56 mm)

• Limited 2 Year Warranty

Includes:

• GT8HW-IH transducer
• 20' Cable
• In-hull fitting
• Documentation
