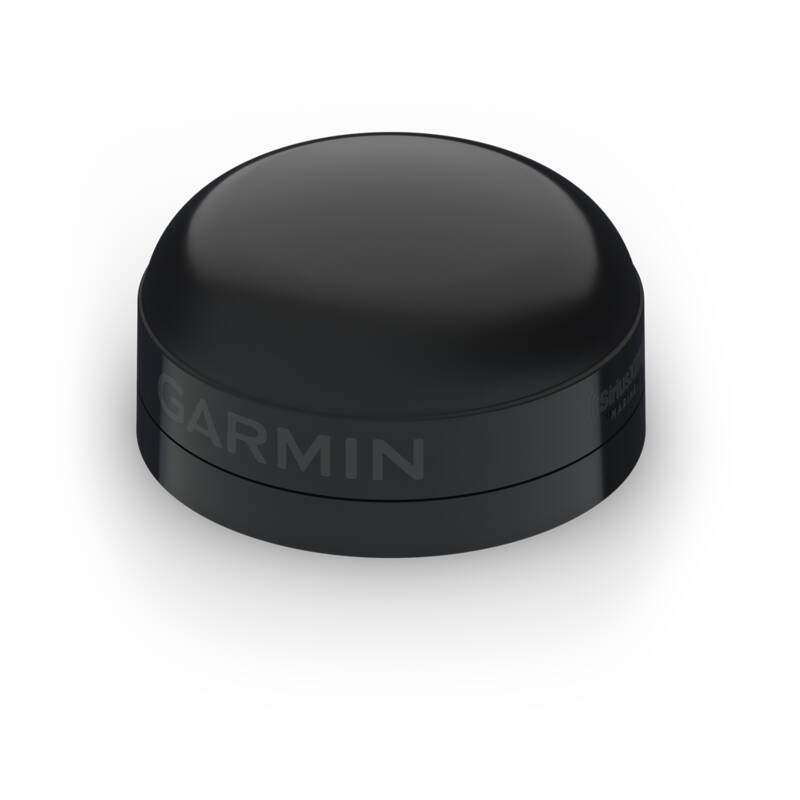

Garmin GXM 54 SiriusXM Receiver for Weather, Radio and Fishmapping, Black • 010-02277-10

The GXM 54 satellite weather/radio antenna with SiriusXM coverage lets you head out with detailed weather information that"™s delivered straight to your Garmin chartplotter. You"™ll gain added awareness and confidence on the water with the most current weather conditions and forecasts, including NEXRAD, lightning, wind and wave information. And you"™ll enjoy high-quality entertainment with more than 150 channels of SiriusXM satellite radio.

---

• See detailed weather information¹ directly on your compatible Garmin chartplotter for increased situational awareness
• Use the fish mapping feature¹ to find suggested potential hot spots for popular species and to view sea surface temperatures, plankton concentrations, floating algae and more
• Refine the fish species that appear on the chartplotter map
• Experience high-quality entertainment with access to more than 150 channels of SiriusXM satellite radio¹
• Gain access to the most current weather conditions and forecasts, including NEXRAD, lightning, wind and waves¹
• Reliable antenna provides the best possible reception "” even on the fringes of SiriusXM coverage

---

• Dimensions (DxH): 3.61" x 1.95" (91.6 x 49.5 mm)
• Weight: 7.1 oz (201 g), white; 7.9 oz (224 g), black
• Operating temperature range: From -22° to 158° F (from -30° to 70° C)
• Storage temperature range: From -31° to 185° F (from -35° to 85° C)
• Case material: Fully gasketed, plastic and die-cast aluminum
• Water rating: IPX7

• Power input source: From 9 to 32 Vdc
• Input current: 500 mA max. at 12 Vdc
• Max power usage: 6 W
• Fuse: 32 V, 2 A, mini-blade type, fast-acting

---

In the Box:

• GXM 54
• Pole mount
• Surface mount
• Mounting hardware
• Cable (6 meters)
• Power and audio module
• Documentation
