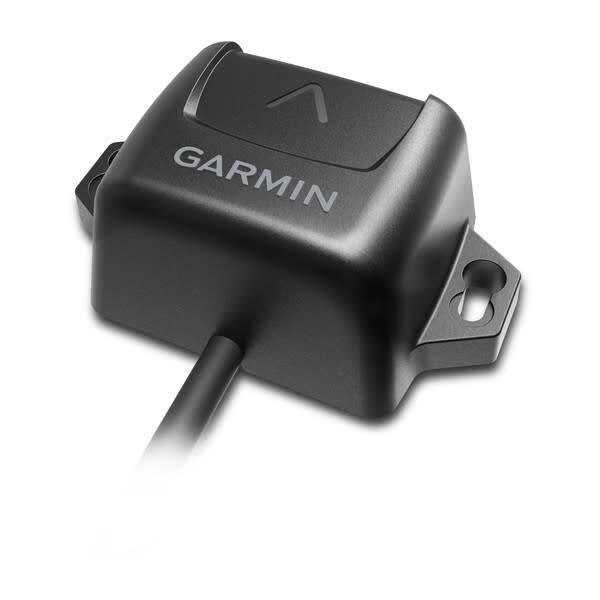

Garmin SteadyCast Surface Mount 9-axis Compass • 010-11417-10

SteadyCast heading sensor is a simple, easy-to-install solution that provides fast calibration and premium heading accuracy. It aligns your boat bow to its actual orientation so you know where you are casting according to your chartplotter screen. SteadyCast heading sensor installs easily with NMEA 2000(R) plug-and-play interface and a simple 2-step precision calibration process for compatible Garmin chartplotters. Basic calibration for Garmin echoMAP™ models and other NMEA 2000 displays is also supported. Its 9-axis MEMS technology allows installation in any orientation located away from magnetic interference, and it’s built to withstand bilge environments.

---

• Ensures Bow Orientation On Your Chartplotter Matches Your Heading
• Heading Accuracy Of Plus Or Minus 3 Degrees
• Simple 2-Step Calibration Process
• 9-Axis MEMS Technology Allows Installation In Any Orientation Located Away From Magnetic Interference
• Easy NMEA 2000® Plug-And-Play Interface
• Easy To Install
• Limited 2 Year Warranty

---

Specifications:

• Dimensions (L x W x H): 3.4" x 2.1" x 1.3" (86.3 x 52.9 x 33.7 mm)

• Default heading output: 10 Hz

• Output heading with +/-3 degree accuracy

• Water rating: IPX7

• LEN: 2

• Operating voltage: 9 VDC to 32VDC

---

• SteadyCast heading sensor with integrated NMEA2000 drop cable (6')
• NMEA2000 T-connector
• Documentation
