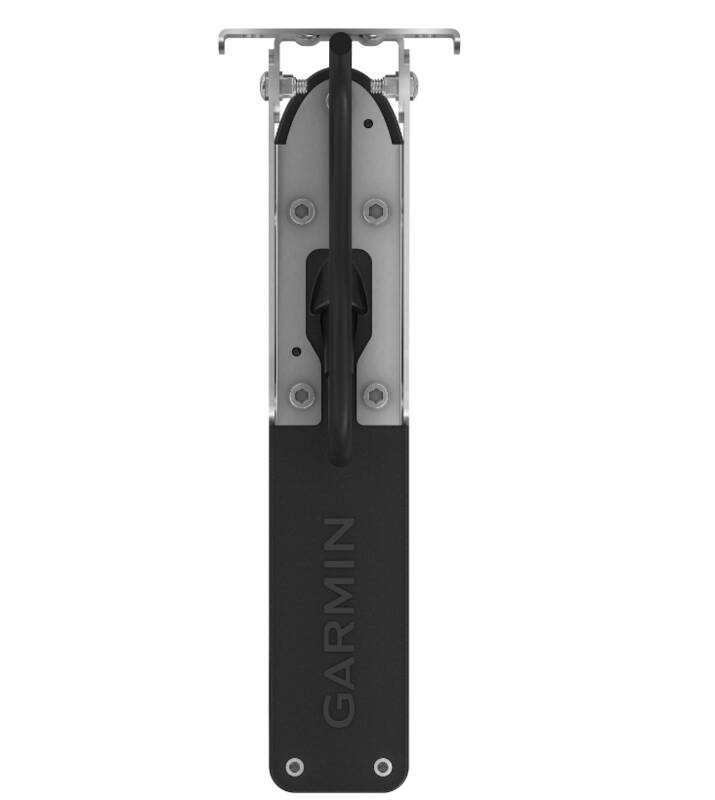

Garmin TM Plastic Transom Mount Transducer with 20' Cable • 010-01961-00

GT30-TM Plastic Transom Mount Transducer with 20' Cable (010-01961-00) by Garmin®. Measures: Depth/Temperature. Frequency: 425-485/790-850kHz. Max Power: 500W. Accommodates Deadrise: 0° - 70°. Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat. The 20' transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750' (ClearVü) and 500' left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar. Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

• Weight: 1.08 lbs. (0.50 kg)
• Cable length: 20'
• Dimensions: 7.8 x 1.5 x 0.9 in (198 x 38 x 22 mm)
• Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
• Power: ClearVü/SideVü 500 W
• Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
• Maximum depth: ClearVü: 750'; SideVü: 500'
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Supported deadrise/Transom angles: 0°-70° degree transom

• Limited 2 Year Warranty

Includes:

• Transducer
• 20' Cable
• Installation instructions
