Garmin Ultra HD GT24UHD-TM 8-Pin Plastic Transom Mount Transducer with 20' Cable • 010-12908-00

Ultra HD GT24UHD-TM 8-Pin Plastic Transom Mount Transducer with 20' Cable (010-12908-00) by Garmin®. Measures: Depth/Temperature. Frequency: 150-240/760-880kHz. Max Power: 350W. Accommodates Deadrise: 0° - 70°. The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 - all in one transducer.

• Beamwidth: CHIRP 24°-16°; ClearVü 0.94°x60° @ 800 kHz
• Frequency Traditional CHIRP High Wide (150-240 kHz)
• Frequency Ultra High-Definition ClearVü 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Power Traditional CHIRP: 350 W
• Power Ultra High-Definition ClearVü: 350 W
• Beamwidth Traditional CHIRP: Adjustable from 16° to 24° in 1° steps
• Beamwidth Ultra High-Definition ClearVü: 0.94° x 60°
• Maximum depth Traditional CHIRP: 800’
• Maximum depth Ultra High-Definition ClearVü: 200'
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 8-pin (blue connector)
• Cable length: 20'
• Supported deadrise/Transom angles: 0°-70° degree transom
• Compatible with GPSMAP® 8400xsv/8600xsv and ECHOMAP™ Ultra only.

• Limited 2 Year Warranty

Includes:

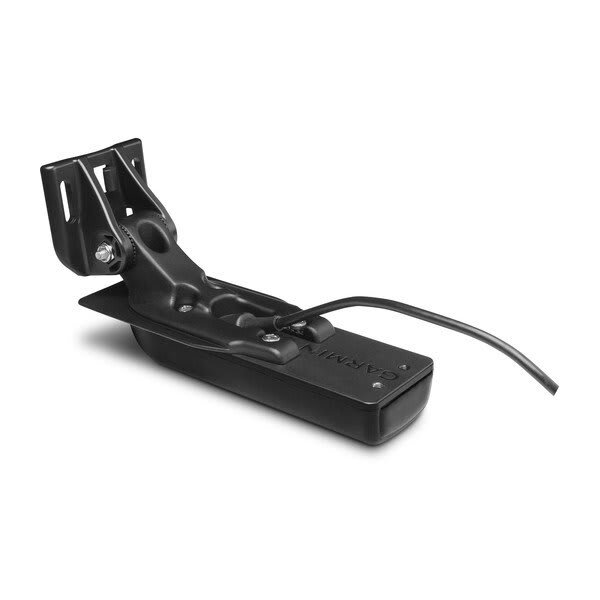

• GT24UHD-TM transducer
• Transom mount

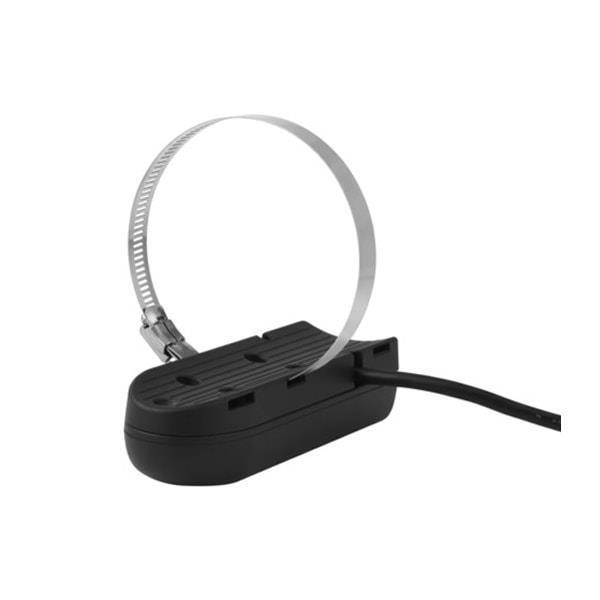

• Trolling motor mount
• Mounting hardware
• Documentation
