Garmin Ultra HD GT54UHD-TM 12-Pin Plastic Transom Mount Transducer with 20' Cable • 010-12909-00

Ultra HD GT54UHD-TM 12-Pin Plastic Transom Mount Transducer with 20' Cable (010-12909-00) by Garmin®. Measures: Depth/Temperature. Frequency: 150-240/760-880 & 1.2kHz. Max Power: 350W. Accommodates Deadrise: 0° - 70°. The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 - all in one transducer.

• Compatible with GPSMAP® 8400xsv/8600xsv and ECHOMAP™ Ultra only.
• Beamwidth CHIRP 24°-16°
• Beamwidth ClearVü: 0.94°x60° @ 800 kHz
• Beamwidth SideVü: 1.62°x50°
• Beamwidth UHD SideVü: 0.441°x52° @ 1200 kHz
• Frequency Traditional CHIRP: CHIRP High Wide (150-240 kHz)
• Frequency Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range 760-880 kHz
• Frequency Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,080-1,230 kHz
• Frequency SideVü: 455 kHz, CHIRP range: 425-485 kHz
• Power Traditional CHIRP : 350 W
• Power Ultra High-Definition ClearVü: 350 W
• Power Ultra High-Definition SideVü: 350 W
• Power SideVü: 350 W
• Maximum depth Traditional CHIRP: 800’
• Maximum depth Ultra High-Definition ClearVü: 200'
• Maximum depth Ultra High-Definition SideVü: 125' to each side; 250' total, at a maximum depth of 30'
• Maximum depth SideVü: 500' to each side
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin (orange connector)
• Cable length: 20'
• Supported deadrise/Transom angles: 0°-70° degree transom
• Limited 2 Year Warranty

Includes:

• GT54UHD-TM transducer

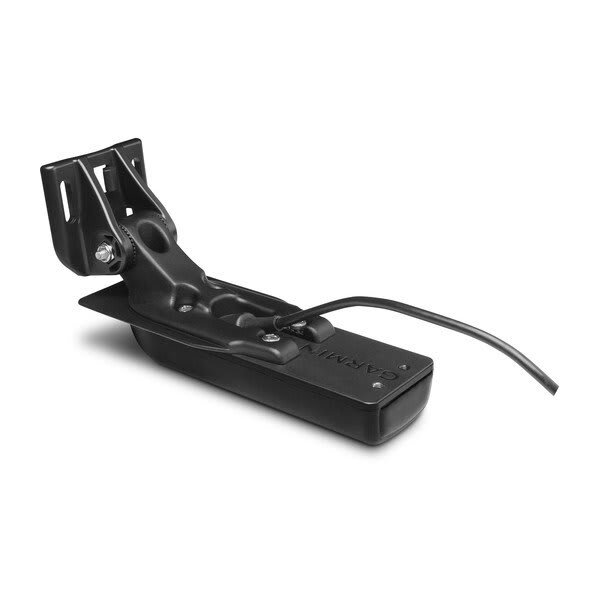

• Transom mount

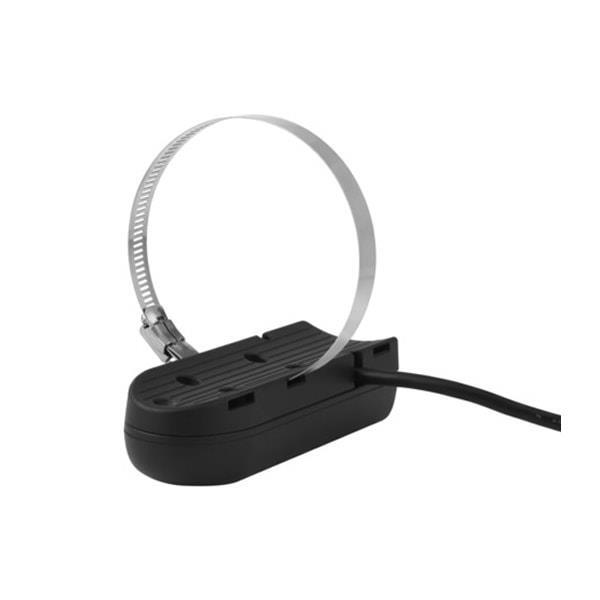

• Trolling motor mount
• Mounting hardware
• Documentation
