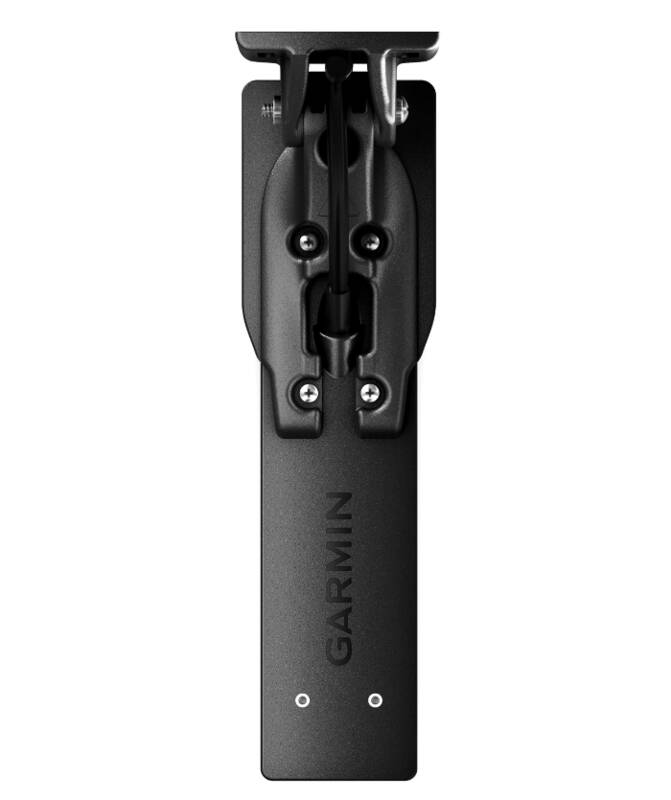

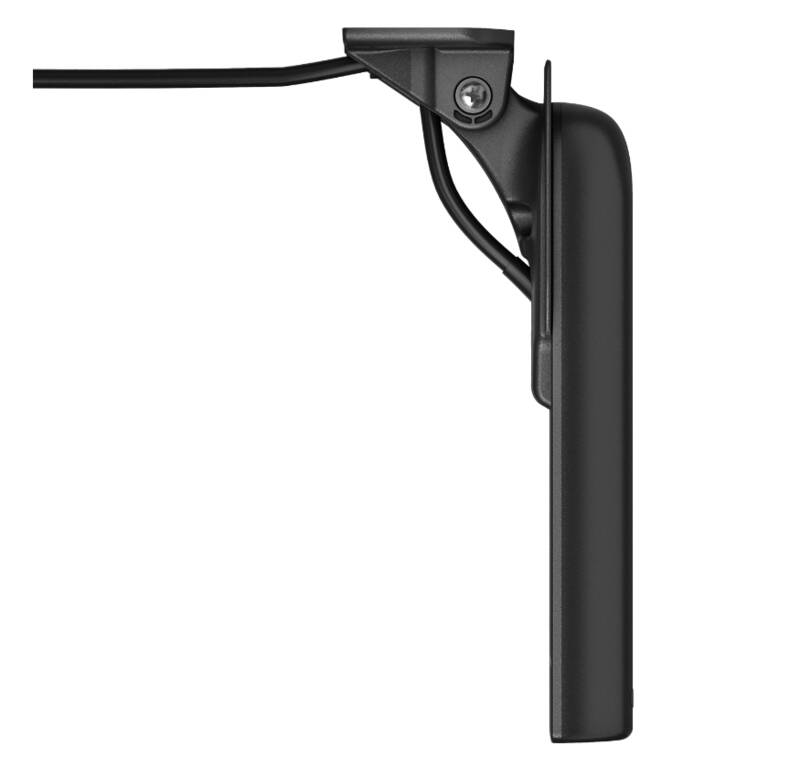

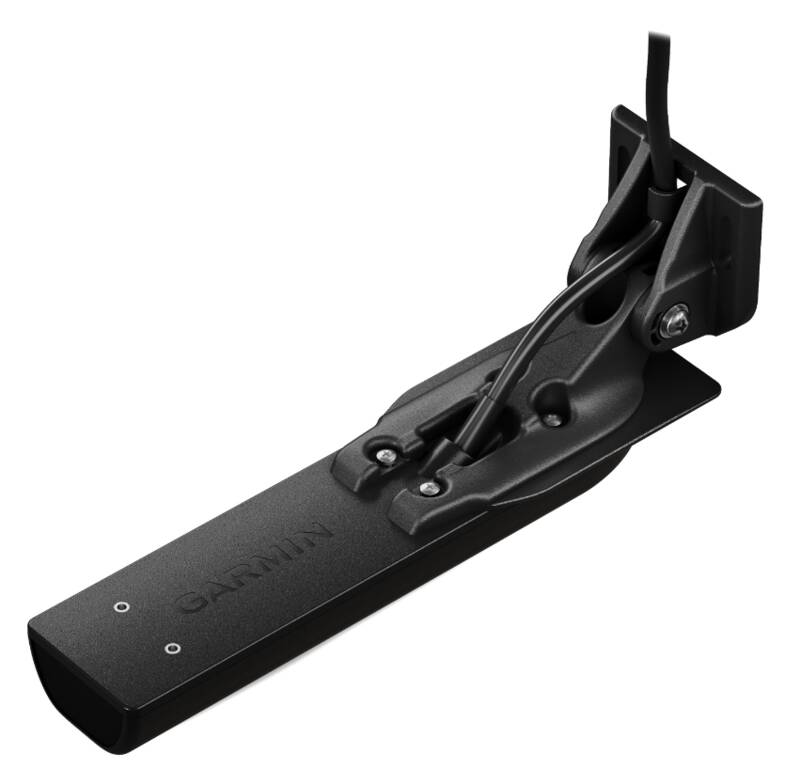

Garmin Ultra HD GT56UHD-TM 12-Pin Plastic Transom Mount Transducer with 25' Cable • 010-13073-00

Ultra HD GT56UHD-TM 12-Pin Plastic Transom Mount Transducer with 25' Cable (010-13073-00) by Garmin®. Measures: Depth/Temperature. Frequency: 150-240/455/800/1000kHz. Max Power: 500W. Accommodates Deadrise: 0° - 70°. This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

• Frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
• Power: Traditional 350 W; ClearVü/SideVü 500 W
• Beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
• Maximum depth: Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
• Depth/speed/temperature: Depth and temperature
• Number of pins: 12
• Cable length: 25 ft
• Supported deadrise/transom angles: 0°-70° degree transom
• Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm

• Limited 2 Year Warranty

Includes:

• GT56UHD-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
