Garmin Ultra High-Definition CHIRP Sonar Module with GT34UHD-TM Transom Mount Transducer • 010-02055-00

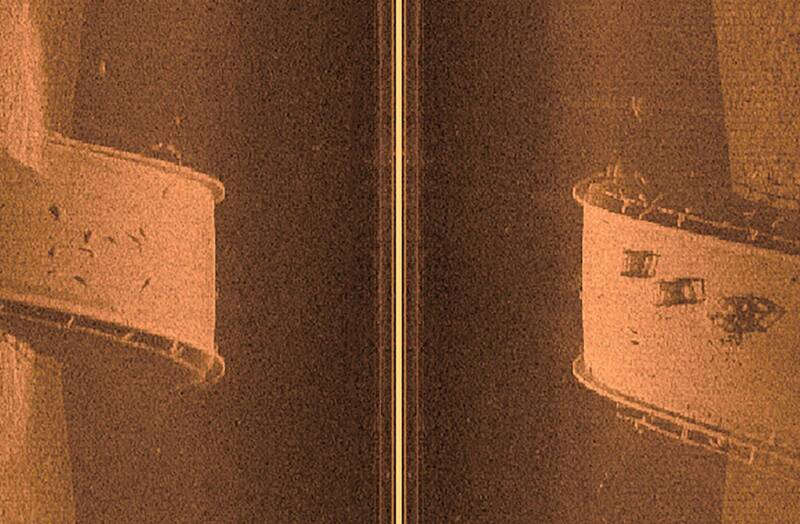

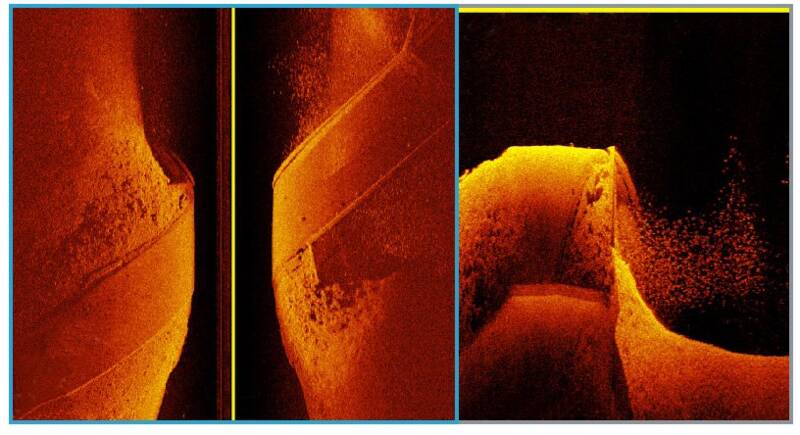

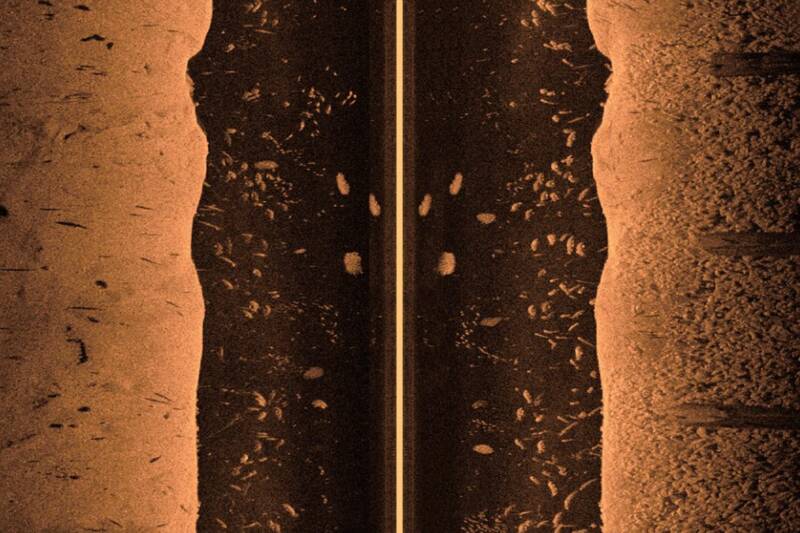

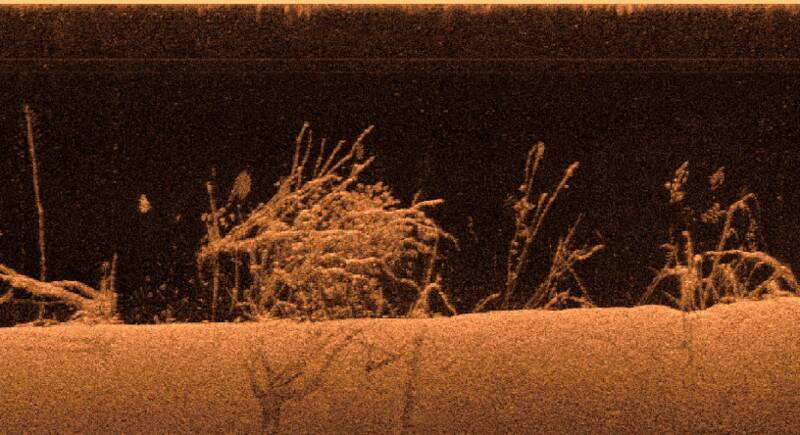

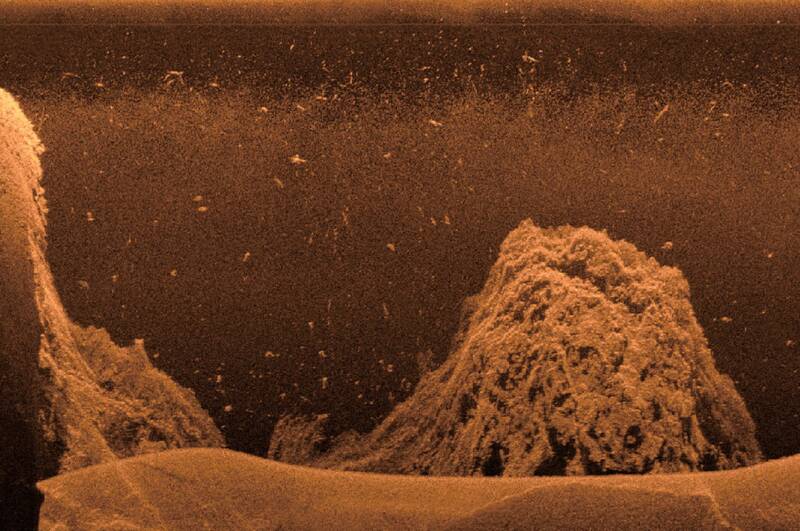

Ultra High-Definition CHIRP Sonar Module with GT34UHD-TM Transom Mount Transducer by Garmin®. See the stunning difference in clarity between standard scanning sonar on the left and Ultra High-Definition ClearVü scanning sonar on the right. Wherever your marine adventures take you, this easy-to-understand, simple-to-use, and dependable electronics will help you get most out of your time on the water. Made to be tough as nails and durable, Garmin marine electronics will provide you maximum convenience, reliability and value. Built with avid boat and fishing enthusiasts in mind, innovative electronics by Garmin features a rugged construction and uses the latest technology to provide years of reliable, trouble-free performance under harshest marine conditions.

• Physical dimensions: 9.9" x 7.6" x 2.6" (251 mm x 192 mm x 66 mm)
• Weight: 1.86 lbs (845 g)
• Water rating: IPX7
• Garmin Marine Network™ ports: 3
• Temperature range: From 5°F to 158°F (from -15°C to 70°C)
• Ultra High-Definition ClearVü: Yes
• Ultra High-Definition SideVü: Yes
• Frequencies supported: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz; Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
• Transmit power: 500 W RMS
• Maximum depth: 200' Ultra High-Definition ClearVü; 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30'
• Compass-safe distance: 10.2" (26 cm)

• Limited 2 Year Warranty

Includes:

• GCV 20 Sonar Black Box
• GT34UHD-TM transducer
• Transom mount
• Trolling motor mount
• Right-angle power cable
• Right-angle ethernet cable
• Mounting hardware
• Documentation
