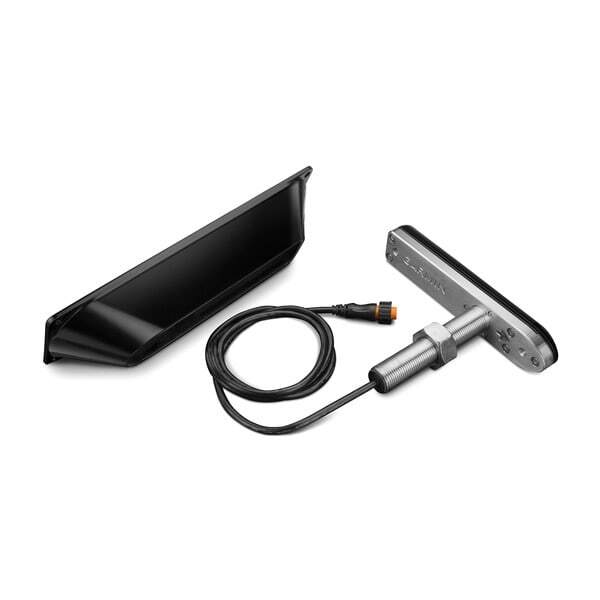

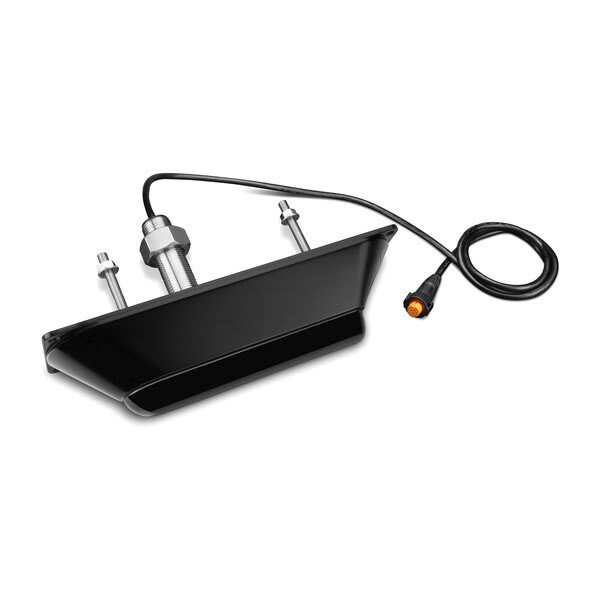

Garmin Ultra High-Definition GT34UHD-TH 12-Pin Plastic External Thru-hull Mount Transducer with 20' Cable • 010-12776-10

Ultra High-Definition GT34UHD-TH 12-Pin Plastic External Thru-hull Mount Transducer with 20' Cable (010-12776-10) by Garmin®. Measures: Depth/Temperature. Frequency: 760-880kHz and 1.0-1.17 MHz. Max Power: 500W. Accommodates Deadrise: 0° - 25°. Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element - with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) - and it's recommended for hulls with up to a 5-degree deadrise angle.

• Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
• Power: 500 W
• Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46°; Ultra High-Defintion SideVü: 0.44° x 55°
• Maximum depth: 200' Ultra High-Definition ClearVü; 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30'
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20'
• Supported deadrise/Transom angles: Up to 25° deadrise
• Limited 2 Year Warranty

• Includes: Transducer and 20' Cable
