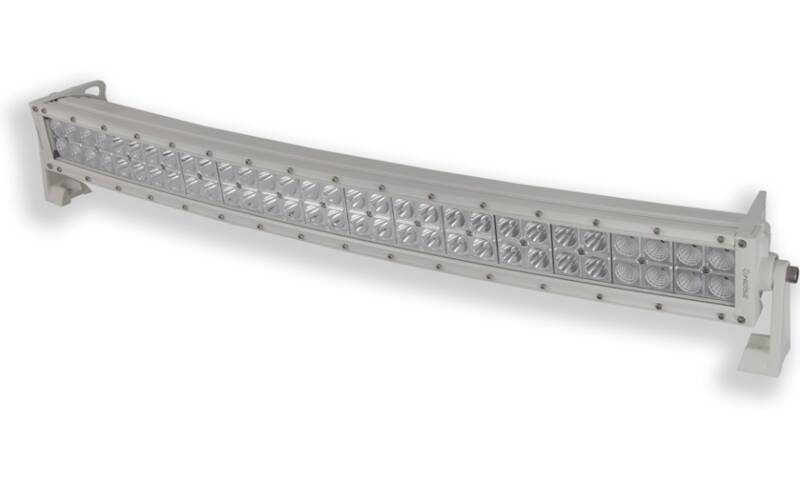

Heise Dual Row Marine LED Curved Light Bar - 30" • HE-MDRC30

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W (60-3W LEDs)
• Raw Lumens: 14400
• LUX at 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°) / Spot(8°)

Construction

• Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:
  • Brackets Turned Inward – 31"
  • Brackets Turned Outward – 33.5"
  • Mounting Bolt Drill – 25"
• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.5"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40° C to +60° C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity
