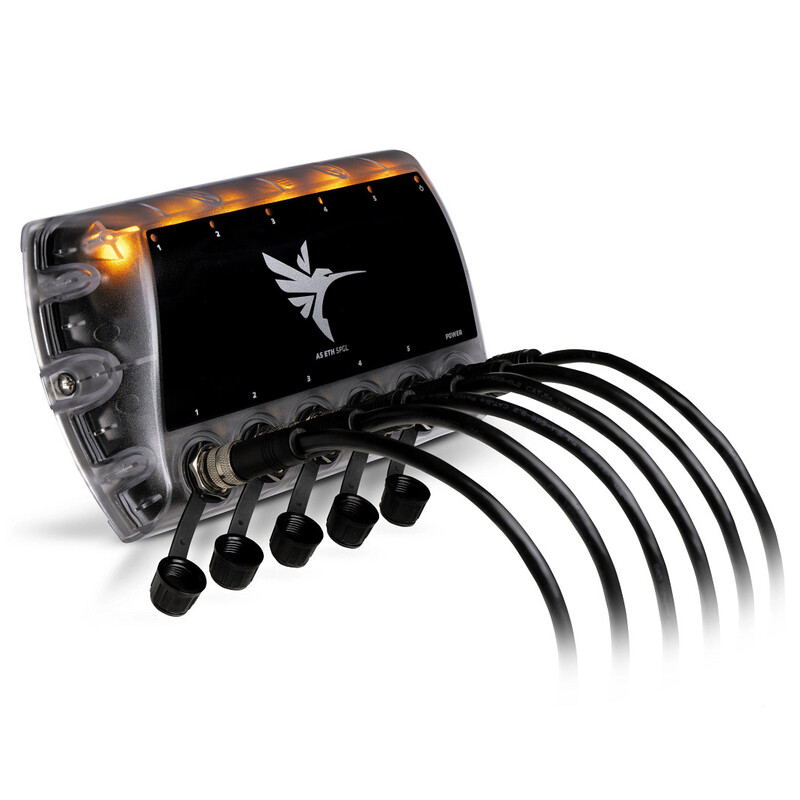

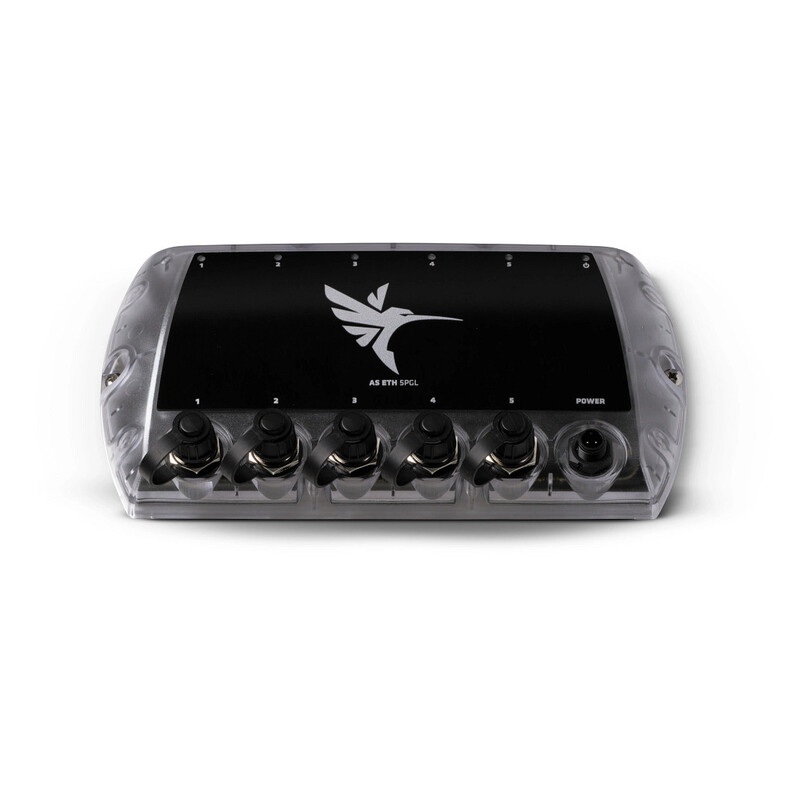

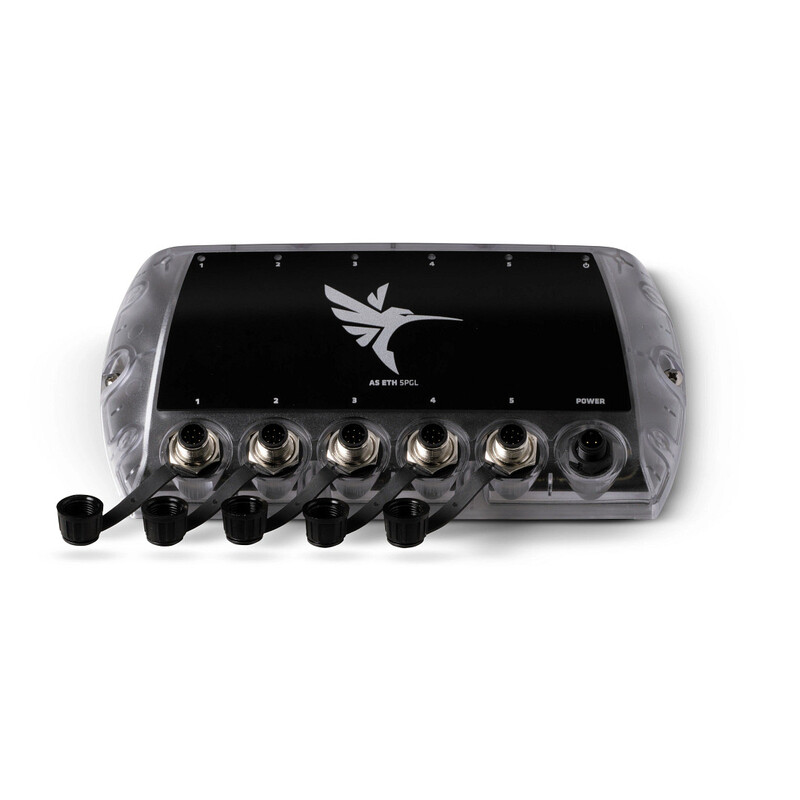

Humminbird AS ETH 5PGL • 5 Port Ethernet Switch • 411850-1

This Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Amber Connection Light: HELIX G4N and G3N Fish Finder, AS ETH NMEA2K, Minn Kota Trolling Motor, and Humminbird CHIRP Radar. Green Connection Light: APEX or SOLIX Fish Finder, MEGA Live Imaging, MEGA Live Imaging TargetLock, AS ETH 5PXG, and AS ETH 5PGL. Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection. Compatible with all APEX, All SOLIX, HELIX G4N and HELIX G3N fish finder models.

---

• Compatibility: All APEX/ SOLIX/ HELIX G4N/G3N Fish Finder Models
• Number Of Ports: 5
• Color: Black

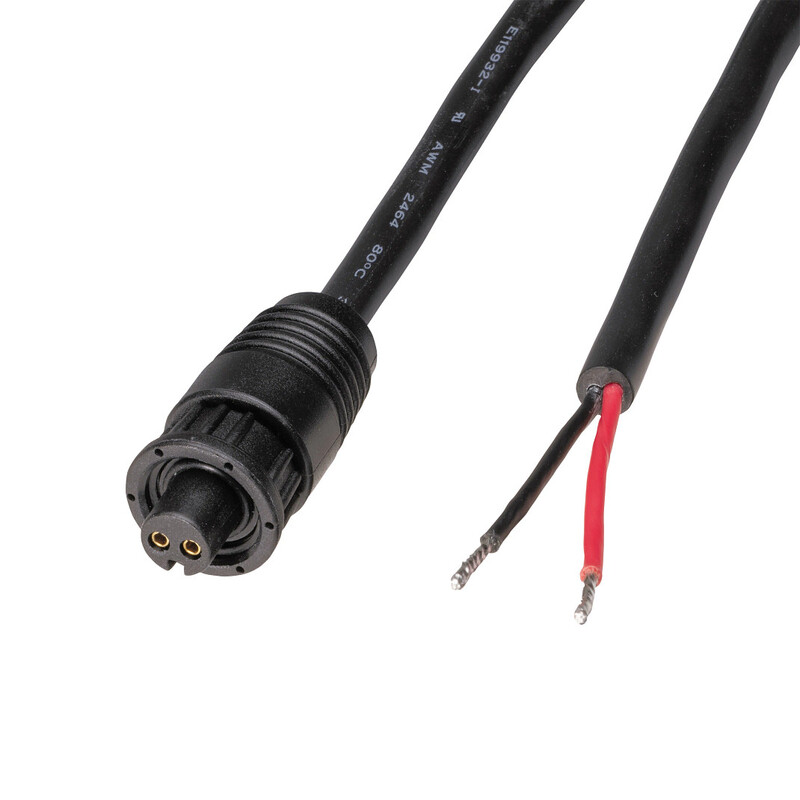

• Includes: With Power Cable and Mounting Hardware
• Connect Up To Five Humminbird Fish Finders And Other Compatible Ethernet Devices For Data Sharing Across The Network
• Expand Your Network's Capacity Up To 20 Devices By Linking Additional Switches Together
• Compatible With All APEX, SOLIX, HELIX G4N And HELIX G3N Fish Finder Models
• Connection Light: Solid Is Equal Connected
• Amber Connection Light: HELIX G4N And G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
• Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
• Additional Ethernet Cables Are Required To Connect Devices To This Switch
• Limited 1 Year Warranty
