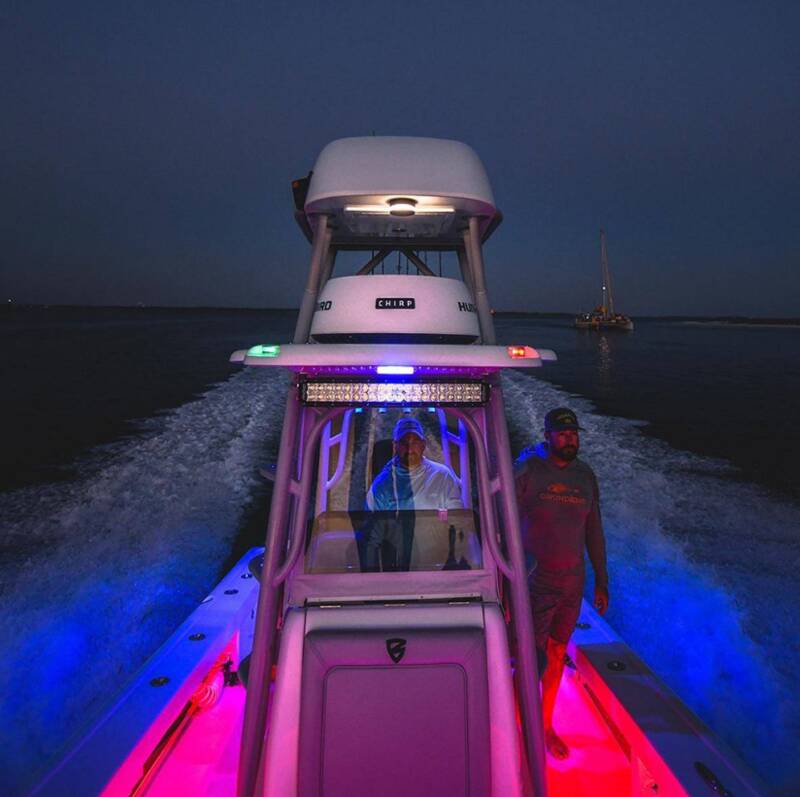

Humminbird HB 2124 21" Radome CHIRP Radar, Solid State • 750013-1

The HB 2124 is our Humminbird CHIRP Radar that features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify floating obstacles and structures for clues to where gamefish are located. In addition, track weather, hazards and other vessels with amazing definition for navigational safety.

---

• Compatible with: All APEX Series, All SOLIX Series, all HELIX 15 Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 G4N, G3N, G2N), all ONIX Series, all ION Series
• Data Cable Length: 32.8'
• Antenna Dimension - 21" Enclosed Dome; Antenna Type - Patch Array; Peak Power Output - 20 Watts, Transmit Frequency - 9354 to 9446 MHz
• Beam width (nominal) - 4.9° Horizontal and 20° Vertical; Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
• Networking - Ethernet; Maximum Range Scale - from 1/16 to 24 nautical miles; Power Consumption - Transmit mode - 17 Watts; Standby Mode - 7 Watts; Sleep Mode - 2 Watts
• Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
• IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
• Waterproofing - IPX6
• Weight - 12.3 lbs (5.6 kg)
• 1-Year Limited Warranty

---

• Current Models: HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12, SOLIX 10, SOLIX 12, SOLIX 15, HELIX 15
• Discontinued Series: ION, ONIX
