Humminbird
Product Details

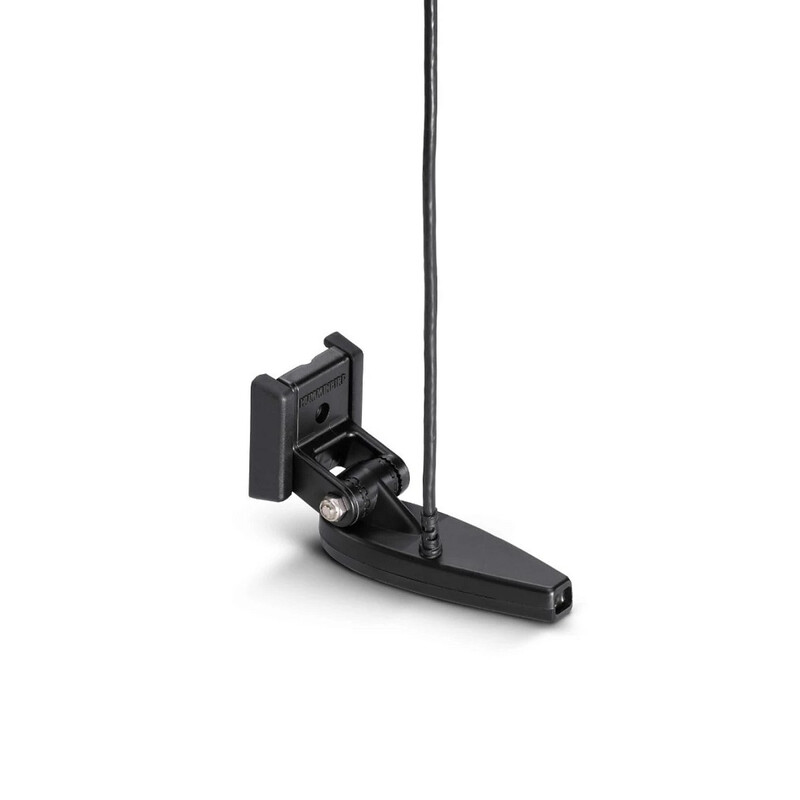

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging 455 Kilohertz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150 to 220 Kilohertz. Features built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable.



  • Compatible with: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N.

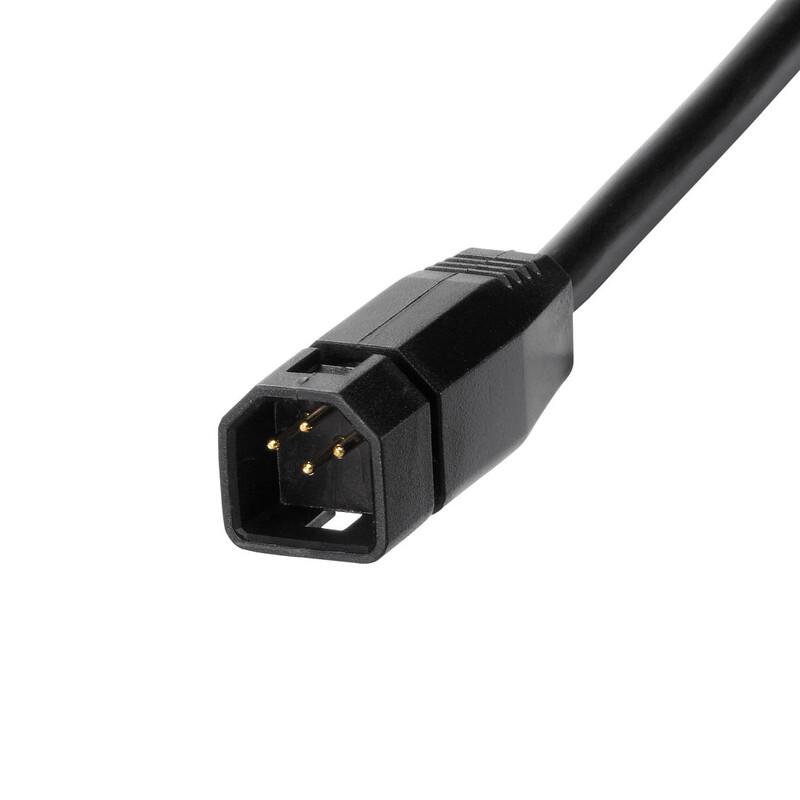

  • Cable Length:  20 Feet

  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)

  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)

  • Sonar Type: MEGA Imaging, Dual Spectrum

  • 1-Year Limited Warranty


$200.99
in stock
