Icom 4kW Marine Radar with Color LCD • MR1010R2 13

Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation. Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M605, M510 AIS and M506 AIS), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.

---

• Connect The MR-1010RII To A DSC Radio To Use The DSC Information Function
• Gives Approximately A 176 Degree Viewing Angle
• Color RFT LCD Display Offers Bright Vivid Echos With 16 Steps Gradient Intensity
• Easily Adjust The Screen Color With The "BRILL" Button
• Simplified ARPA Function Helps Prevent Collision Risk With Other Vessels Or Objects
• True Trail Function
• Two User Programmable Alarm Zones

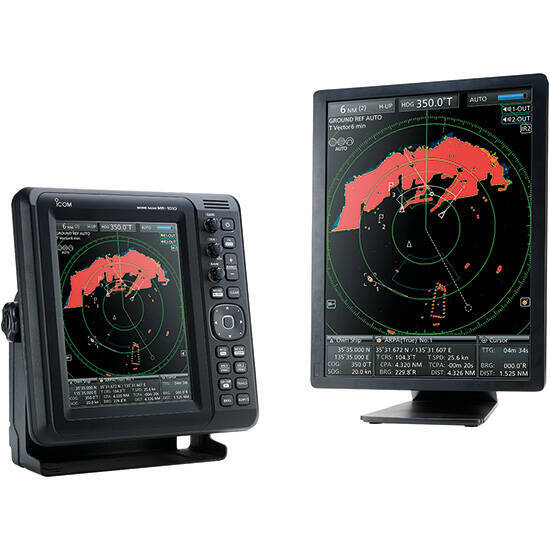

• Optional Video Output Unit
• Limited 3 Year Warranty

---

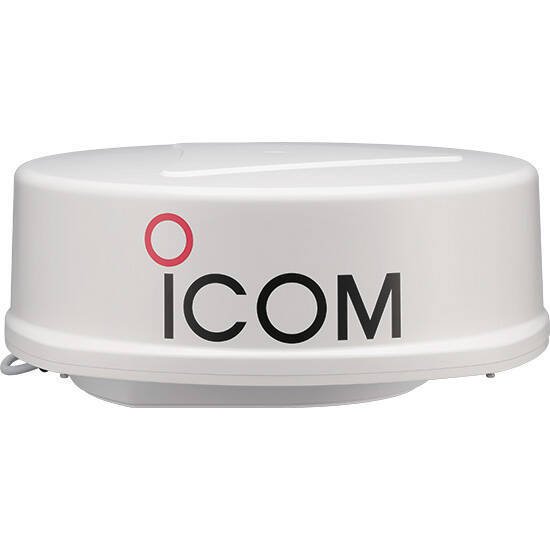

• Type: Radome
• Range: 36 Nautical Miles
• Antenna Size: 24 Inch
• Rotation Speed: 24/ 36 RPM
• Beamwidth: 4 Degree Horizontal And 22 Degree Vertical

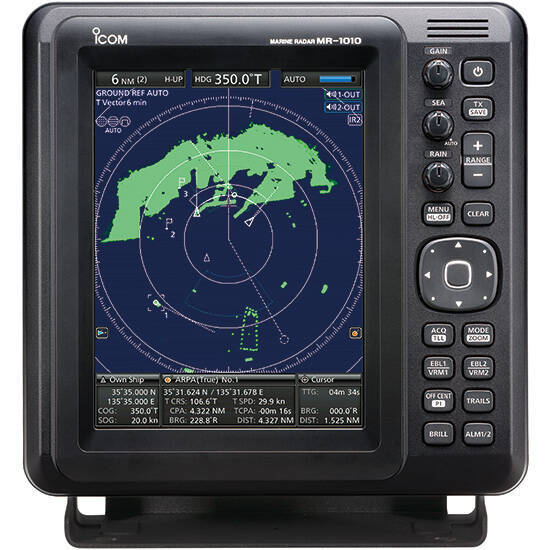

• Display Size: 10.4 Inch LCD
• Display Type: 480 X 640 Dots Resolution
• Interface: Keypad
• Voltage: 10.2 To 42 Volt
• Power Output: 55 Watt
• Target tracking: Up to 10 Targets
• Waterproof Rating: IPX4 Display/ IPX6 Scanner
• Includes: With Scanner Unit/ 15 Meter Antenna Cable
