Intellian i2 13" TV Antenna System w/ Control Unit and 49' RG6 - White • B4-209SS

i2 13" White TV Antenna System with Control Unit and 49' RG6 Cable for All Americas (B4-209SS) by Intellian. Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian's iQ² technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

• Radome Height: 38 cm (15.0 inch)
• Radome Diameter: 37 cm (14.6 inch)
• Reflector Diameter: 33 cm (13.0 inch)
• Weight: 4.5 kg (9.5 lbs)
• Operating Temp. Range: -25°C ~ 55°C (-13°F ~ 131°F)
• Storage Temp. Range: -40°C ~ 80°C (-40°F ~ 176°F)
• Water Ingress: IPX6
• Ku-Band: 10.7 ~ 12.75 GHz
• Polarization: Vertical / Horizontal
• Minimum EIRP: 51 dBW
• Azimuth Range: 680°
• Elevation Range: 10° ~ 80°
• Ship's Motion: Roll ±25°, Pitch ±15°
• Roll & Pitch Response Rate: 60° / sec
• Turn Rate: 60° / sec
• RF Output: Dual Output
• Dimensions (W x D x H): 17.8 cm x 21.7 cm x 5.4 cm (7.0 inch x 8.5 inch x 2.1 inch)
• Display: 2 line 20 character VFD module
• Power Input: 9.0~30.0VDC (Typ. 30W, max 50W)
• GPS Interface: Built-In (NMEA0183 GPS)
• Automatic Satellite Search and Identification Function
• 2-axis Stabilization provides high speed tracking

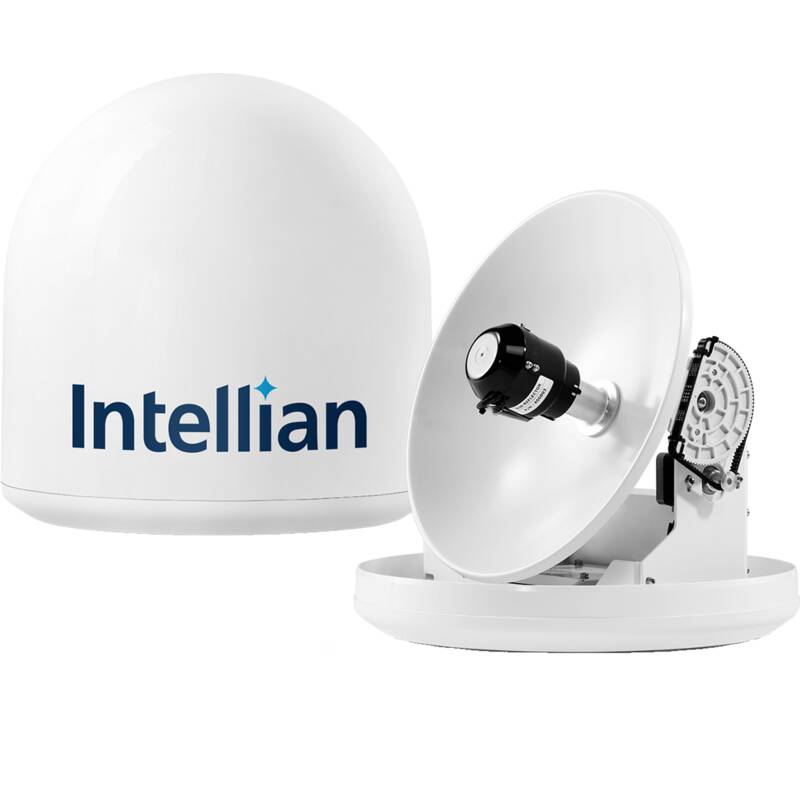

• 33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
• Circular or linear polarization depending on region and LNB selected
• Built-in HD module for Ku-band HD TV reception
• iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
• The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
• Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas
• Intuitive controls and digital satellite information display on the ACU
• Automated updates and diagnostics via Aptus
• Simple antenna status quick reference
• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
• Using the MIM, a master receiver can be selected to control the target satellite
• In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home
• Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time

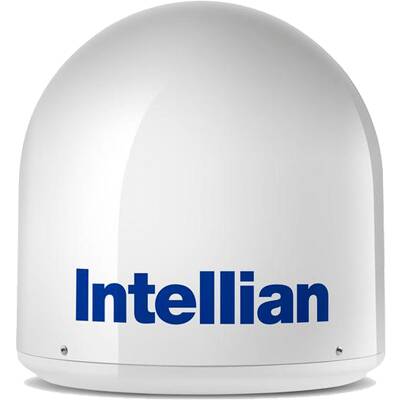

• 37cm (14.6 inch) antenna radome diameter
• Very light antenna weighs less than 4.5 kg (10 pounds)
• 3 Year Limited Parts Warranty
